| Ref | Part Number | Description |
|---|
| 1 |
518326178 |
Engine Support Price: $65.99 |
| 2 |
293150174 |
Hemlock Rivet, 6.4 mm Price: $7.99 |
| 3 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 4 |
518326550 |
Retaining Plate Price: $18.49 |
| 6 |
512061516 |
Vibration Damper This part replaces 512060295. Price: $62.99 |
| 7 |
234281474 |
Conical Spring Washer M8 Price: $1.49 |
| 9 |
518327487 |
Front Suspension Support This part replaces 518327475. Price: $289.99 |
| 10 |
207662044 |
Hex. Flange Screw M6 X 20 Price: $2.09 |
| 11 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 12 |
518326970 |
Front Member Price: $299.99 |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 14 |
207662044 |
Hex. Flange Screw M6 X 20 Price: $2.09 |
| 15 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 16 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. Price: $1.69 |
| 17 |
207662544 |
Hex. Flange Screw M6 X 25 Price: $0.66 |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 19 |
293150191 |
Monobolt Rivet, 4.8 mm Price: $0.99 |
| 20 |
293150182 |
Monobolt Rivet 6.4 Price: $3.19 |
| 21 |
207661644 |
Hex. Flange Screw M6 X 16 Price: $0.76 |
| 22 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 23 |
250000351 |
Hex. Flange Screw M8 X 25, Nylon Price: $2.19 |
| 24 |
207584034 |
Hex. Flange Screw, Scotch Grip Price: $2.19 |
| 25 |
207662044 |
Hex. Flange Screw M6 X 20 Price: $2.09 |
| 26 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 27 |
518326559 |
Rear Member Price: $264.99 |
| 28 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 29 |
518326848 |
Upper Column Support Price: $15.99 |
| 30 |
207662044 |
Hex. Flange Screw M6 X 20 Price: $2.09 |
| 31 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 33 |
518326355 |
Center Column Support Price: $22.49 |
| 34 |
207662544 |
Hex. Flange Screw M6 X 25 Price: $0.66 |
| 35 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 37 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. Price: $2.19 |
| 42 |
293730041 |
Full Moon Dart 8 mm Price: $2.29 |
| 44 |
517124300 |
Washer Price: $0.19 |
| 45 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. Price: $1.19 |
| 46 |
518326472 |
Battery Support Price: $44.99 |
| 47 |
514054755 |
HEAT SHIELD - Call your local BRP dealership Price: $9.39 |
| 48 |
210262040 |
Hex. Flange Screw M6 X 20 Price: $2.19 |
| 49 |
250200039 |
Flat Washer Price: $0.76 |
| 50 |
232561414 |
Elastic Stop Nut M6 Price: $0.57 |
| 51 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. Price: $2.19 |
| 53 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. Price: $1.19 |

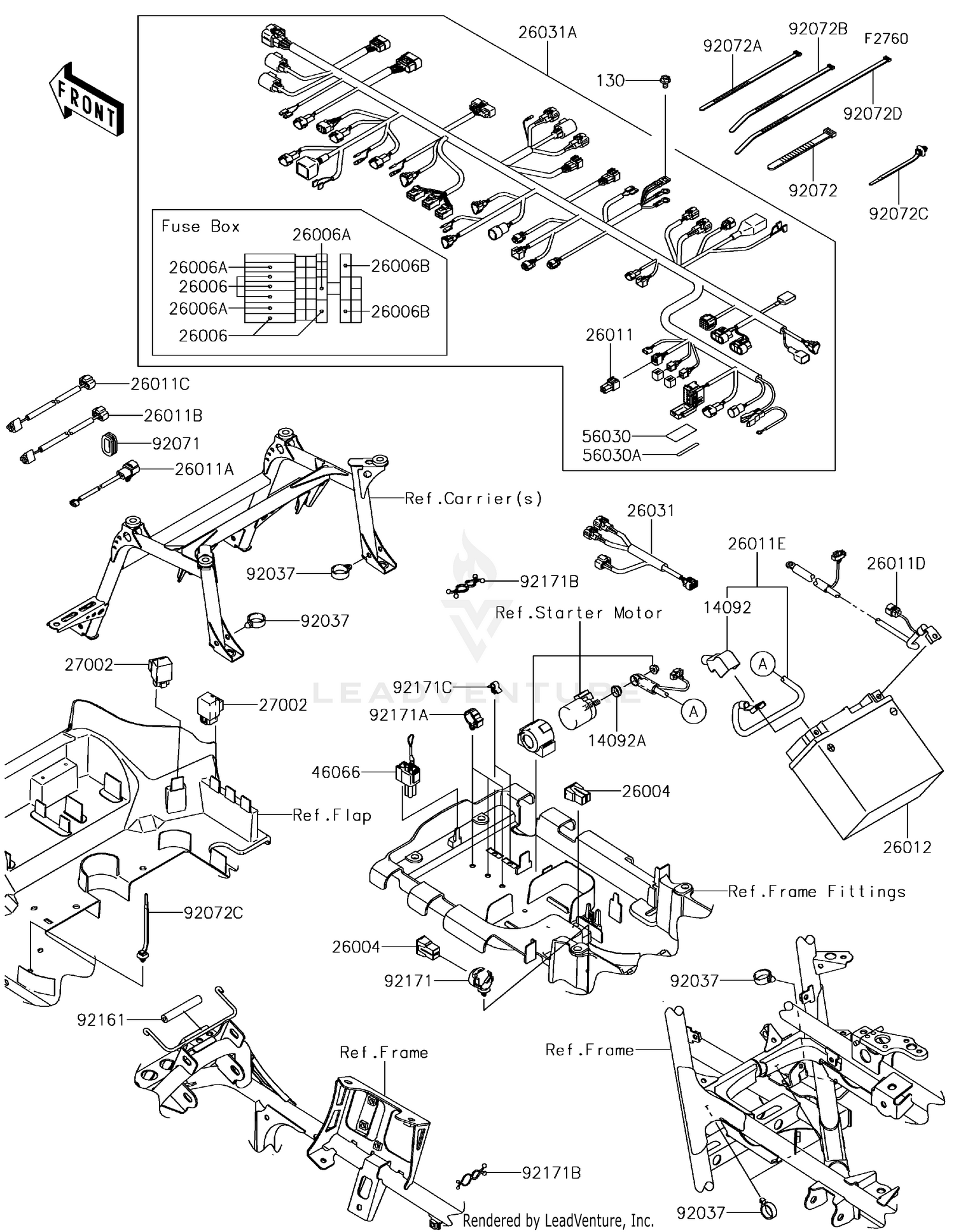

| 14092 |
14092-0767 |
COVER Price: $7.88 |
| 14092A |
14092-0851 |
COVER,MAGNETIC SW. Price: $1.93 |
| 26004 |
26004-0035 |
FUSE-ASSY,40A This part replaces 26004-1093. Price: $4.11 |
| 26006 |
26006-0001 |
FUSE,MINI BLADE,15A,BLUE Price: $6.12 |
| 26006A |
26006-1078 |
FUSE,MINI BLADE,10A,RED This part replaces 26006-0009. Price: $4.87 |
| 26006B |
26006-1080 |
FUSE,MINI BLADE,30A,GREEN Price: $4.87 |
| 26011 |
26011-0271 |
WIRE-LEAD,CAP Price: $14.74 |
| 26011A |
26011-0312 |
WIRE-LEAD,EPS EXTENSION Price: $29.31 |
| 26011B |
26011-0721 |
WIRE-LEAD,HEAD LAMP,RH Price: $20.76 |
| 26011C |
26011-0743 |
WIRE-LEAD,HEAD LAMP,LH Price: $20.93 |
| 26011D |
26011-0744 |
WIRE-LEAD,BATTERY(-) Price: $46.13 |
| 26011E |
26011-0807 |
WIRE-LEAD,BATTERY(+) Price: $81.33 |
| 26012 |
26012-1414 |
BATTERY,MF,KMX14-BS,12V 12AH Price: $97.95 |
| 26031 |
26031-0752 |
HARNESS,SUB Price: $84.03 |
| 26031A |
26031-1656 |
HARNESS,MAIN Price: $541.06 |
| 27002 |
27002-1062 |
RELAY-ASSY Price: $45.39 |
| 46066 |
46066-0001 |
CONNECTOR-ASSY,RESET Price: $26.91 |
| 56030 |
56030-0401 |
LABEL,FUSE BOX,10A&15A Price: $3.77 |
| 56030A |
56030-0404 |
LABEL,FUSE BOX,30A Price: $3.77 |
| 92037 |
92037-1827 |
CLAMP,HOSE Price: $7.45 |
| 92071 |
92071-0708 |
GROMMET Price: $3.09 |
| 92072 |
92072-030 |
BAND,L=123 Price: $5.00 |
| 92072A |
92072-056 |
BAND,L=186 Price: $5.00 |
| 92072B |
92072-1239 |
BAND,L=188 Price: $1.73 |
| 92072C |
92072-1414 |
BAND,OS170-FT7(BLACK) Price: $3.74 |
| 92072D |
92072-3509 |
BAND,L=292.1 Price: $2.12 |
| 92161 |
92161-0988 |
DAMPER,4.5X11X68 Price: $2.67 |
| 92171 |
92171-0068 |
CLAMP,CLIP,DIA=20 Price: $2.80 |
| 92171A |
92171-0316 |
CLAMP,BRAKE HOSE Price: $3.88 |
| 92171B |
92171-0476 |
CLAMP Price: $3.90 |
| 92171C |
92171-0477 |
CLAMP Price: $3.35 |
