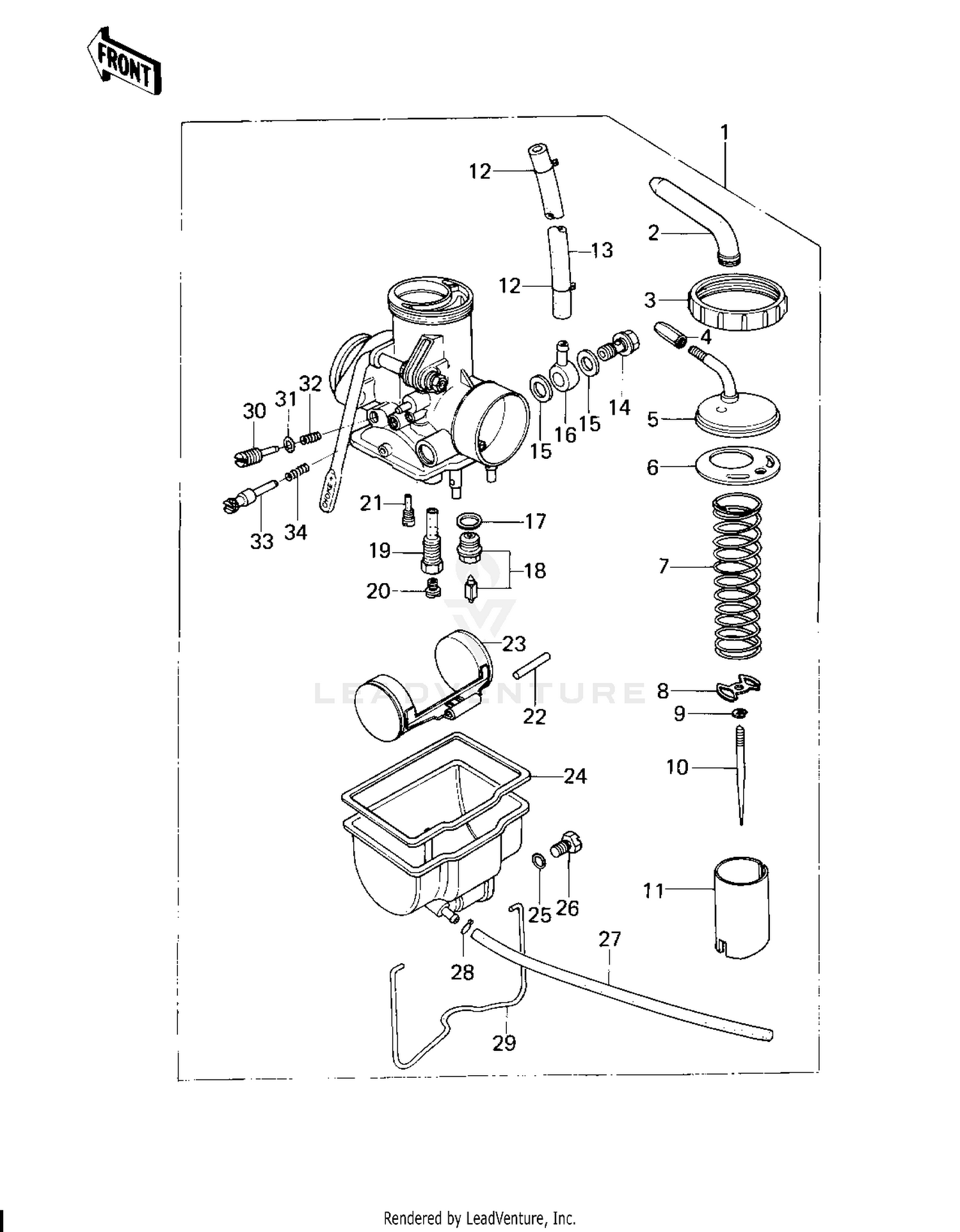

| Ref | Part Number | Description |
|---|
| 2 |
49006-1007 |
CAP,CABLE ADJUSTER Price: $15.51 |
| 3 |
16004-1001 |
CAP,MIXING CHAMBER Price: $38.56 |
| 4 |
16002-1002 |
ADJUSTER,CABLE Price: $11.71 |
| 5 |
16005-1002 |
TOP,MIXING CHAMBER Price: $37.68 |
| 6 |
11009-1026 |
GASKET,MIXING CHAMBER Price: $7.13 |
| 7 |
92081-1034 |
SPRING,THROTTLE VALVE Price: $11.03 |
| 8 |
16007-1003 |
SEAT,THROTTLE VAL SPR Price: $6.44 |
| 9 |
92037-1039 |
CIRCLIP,JET NEEDLE Price: $4.58 |
| 12 |
92037-1040 |
CLAMP,FUEL HOSE Price: $6.31 |
| 13 |
92059-1014 |
HOSE,FUEL Price: $14.45 |
| 14 |
92001-1051 |
BOLT,BANJO Price: $56.57 |
| 15 |
92022-1021 |
WASHER,PLAIN Price: $3.59 |
| 16 |
92005-1002 |
CONNECTOR,BANJO Price: $32.32 |
| 17 |
11009-1027 |
GASKET,FLOAT VAV SEAT Price: $5.97 |
| 18 |
16030-1002 |
FLOAT VALVE ASSY Price: $82.44 |
| 21 |
92064-1002 |
PILOT JET,#38 Price: $15.04 |
| 22 |
92043-1011 |
PIN,FLOAT Price: $6.02 |
| 23 |
16031-1003 |
FLOAT Price: $124.36 |
| 24 |
11009-1028 |
GASKET,FLOAT CHAMBER Price: $25.52 |
| 25 |
92055-1003 |
O RING,DRAIN SCREW Price: $6.02 |
| 26 |
92009-1003 |
SCREW,DRAIN Price: $14.13 |
| 27 |
92059-1046 |
HOSE,FUEL OVERFLOW Price: $17.42 |
| 27 |
92059-111 |
HOSE,FUEL OVERFLOW Price: $22.10 |
| 28 |
92037-1142 |
CLAMP,TUBE Price: $4.31 |
| 29 |
92037-1041 |
CLIP,FLOAT CHAMB FITT Price: $9.55 |
| 30 |
16014-1003 |
SCREW,PILOT AIR ADJUS Price: $21.69 |
| 31 |
92055-1013 |
O RING Price: $4.11 |
| 32 |
92081-1035 |
SPRING,PILOT AIR ADJ Price: $4.69 |
| 33 |
16021-1004 |
SCREW,THROTTLE STOP Price: $13.34 |
