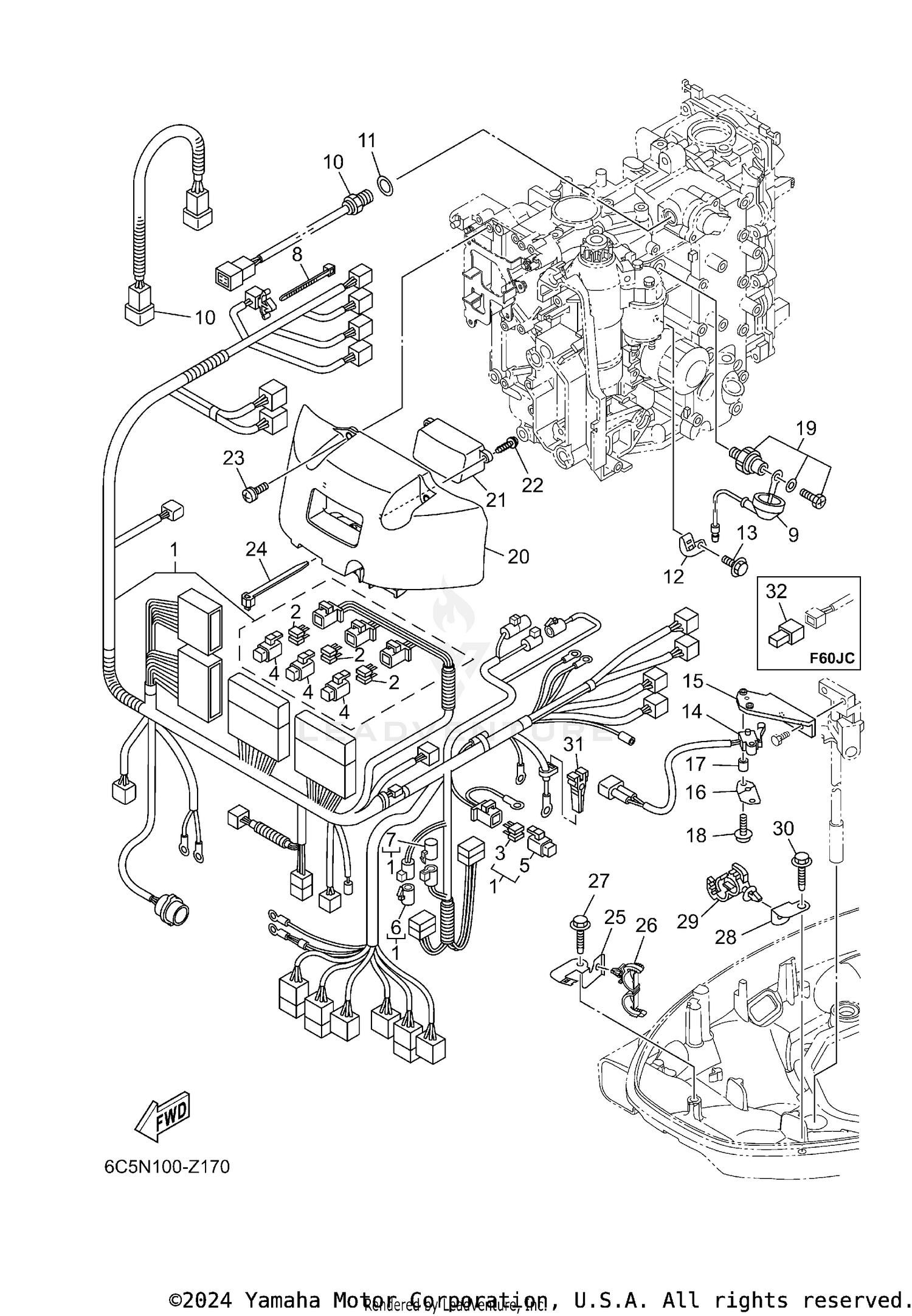

ELECTRICAL 3
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6C5-82590-H0-00 | WIRE HARNESS ASSY Price: $835.35 |
| 2 | 5JJ-82151-20-00 | FUSE (20A-BL) This part replaces 67F-82151-00-00. Price: $8.49 |
| 3 | 5JJ-82151-60-00 | FUSE This part replaces 67F-82151-10-00. Price: $8.49 |
| 4 | 67F-8215B-10-00 | CAP (YELLOW) Price: $14.75 |
| 5 | 67F-8215B-20-00 | CAP (GREEN) Price: $14.75 |
| 6 | 6DA-82582-00-00 | CAP 1 (FEMALE) Price: $4.05 |
| 7 | 6DA-82582-10-00 | CAP 1 (MALE) Price: $5.55 |
| 8 | 90465-13M11-00 | CLAMP Price: $8.49 |
| 9 | 68V-81315-01-00 | LEAD WIRE ASSY Price: $10.35 |
| 10 | 6CJ-85790-00-00 | THERMOSENSOR ASSY Price: $72.60 |
| 11 | 90430-14115-00 | GASKET Price: $3.00 |
| 12 | 6C5-82388-10-00 | PLATE Price: $4.30 |
| 13 | 97E95-06514-00 | BOLT, HEXAGON W/W Price: $1.25 |
| 15 | 6CJ-82554-00-00 | STAY, NEUTRAL SWITCH Price: $21.15 |
| 19 | 64J-82504-00-00 | OIL PRESSURE SWITCH ASSY Price: $33.30 |
| 20 | 6C5-81942-10-00 | COVER Price: $32.45 |
| 21 | 6CJ-83559-00-00 | COVER, METER Price: $14.35 |
| 22 | 90167-05009-00 | SCREW, TAPPING Price: $3.15 |
| 23 | 90159-06M03-00 | SCREW, WITH WASHER Price: $4.90 |
| 24 | 437-83936-11-00 | BAND, SWITCH CORD This part replaces 90465-13M24-00. Price: $5.00 |
| 25 | 6BG-42811-01-00 | STAY Price: $17.25 |
| 26 | 90464-18246-00 | CLAMP This part replaces 90464-18205-00. Price: $2.44 |
| 27 | 90109-06316-00 | BOLT Price: $1.90 |
| 28 | 63P-42756-00-00 | STAY, CLAMP Price: $7.05 |
| 29 | 90464-12183-00 | CLAMP Price: $3.50 |
| 30 | 90109-06316-00 | BOLT Price: $1.90 |
| 31 | 67F-2812A-00-00 | PULLER, FUSE Price: $5.55 |
