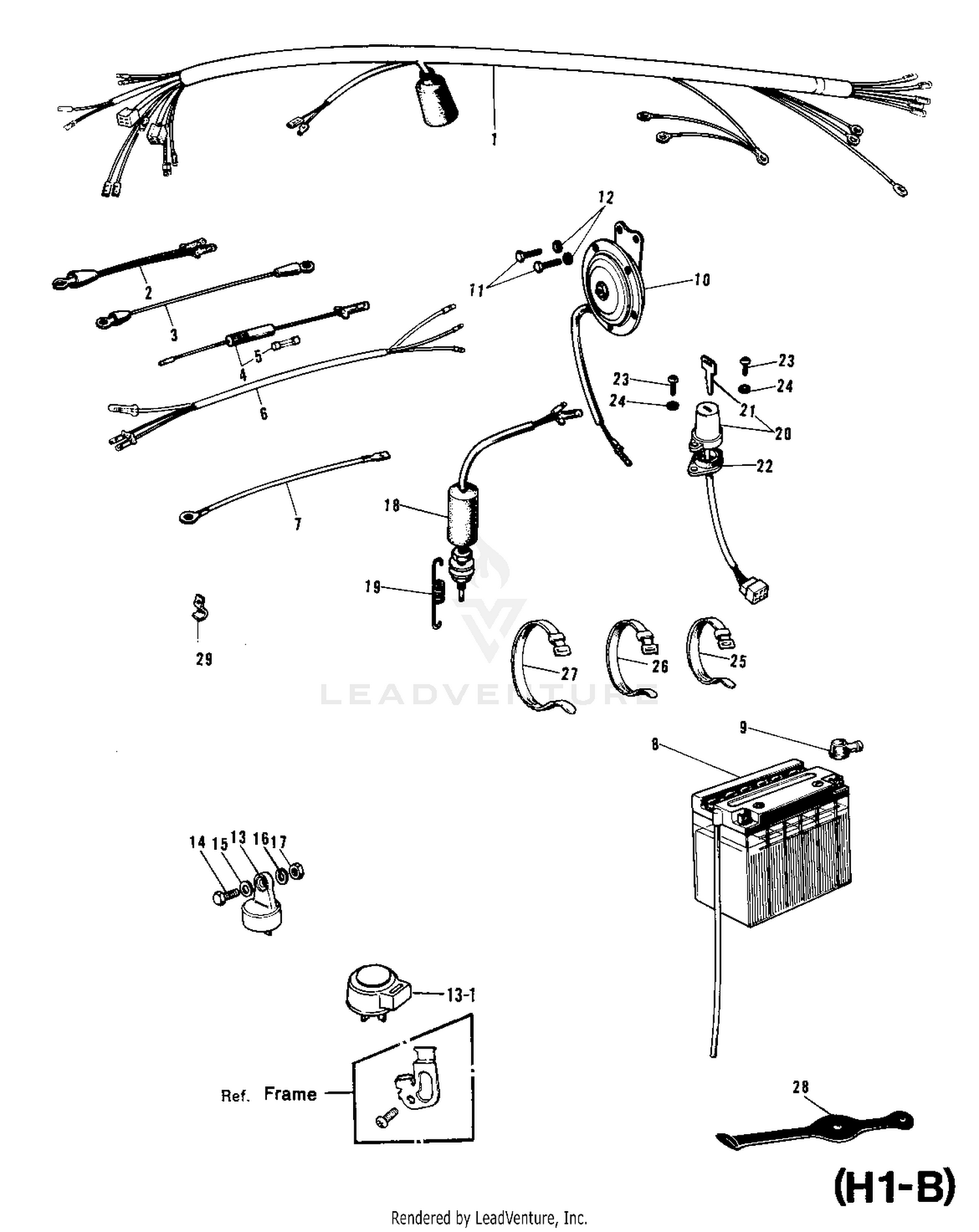

CHASSIS ELECTRICAL EQUIPMENT (H1-B)
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 26001-065 | WIRING HARNESS-MAIN Price: $215.05 |
| 2 | 26010-015 | WIRE BATTERY LEAD Price: $9.50 |
| 3 | 26010-017 | WIRE BATTERY GROUND Price: $4.23 |
| 4 | 26004-010 | FUSE ASSY Price: $16.39 |
| 4 | 26004-015 | FUSE ASSY Price: $34.96 |
| 5 | 26006-002 | FUSE 20A Price: $3.77 |
| 6 | 26002-030 | WIRING HARNESS-REAR Price: $17.17 |
| 7 | 26011-047 | WIRE-READ Price: $7.37 |
| 9 | 92071-1120 | GROMMET,STARTER TERMINAL This part replaces 92073-001. Price: $13.08 |
| 10 | 27003-042 | HORN Price: $47.88 |
| 10 | 27003-066 | HORN Price: $174.18 |
| 11 | 115BA0820 | BOLT-SMALL-UPSET,8X20 This part replaces 115G0820. Price: $5.52 |
| 12 | 461DA0800 | WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 13 | 27002-012 | RELAY-TURN SIGNAL Price: $66.35 |
| 18 | 27010-020 | SWITCH-BRAKE LAMP Price: $49.00 |
| 19 | 27011-013 | SPRING-BRAKE LAMP SW Price: $14.69 |
| 20 | 27005-1058 | SWITCH-ASSY-IGNITION Price: $104.37 |
| 21 | 27008-042-01 | KEY SET #701 Price: $8.18 |
| 21 | 27008-042-05 | KEY SET #705 Price: $7.83 |
| 21 | 27008-042-85 | KEY SET #685 Price: $9.55 |
| 21 | 27008-042-89 | KEY SET #689 Price: $9.14 |
| 22 | 92075-077 | DAMPER RUBBER Price: $9.19 |
| 23 | 92007-026 | BOLT-HEX HEAD,6MM Price: $10.86 |
| 24 | 410AA0800 | WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 25 | 92072-030 | BAND,L=123 Price: $5.00 |
| 26 | 92072-031 | BAND,L=149 Price: $5.00 |
| 27 | 92072-032 | BAND,L=218 Price: $5.00 |
| 28 | 92072-018 | BAND RUBBER Price: $2.87 |
