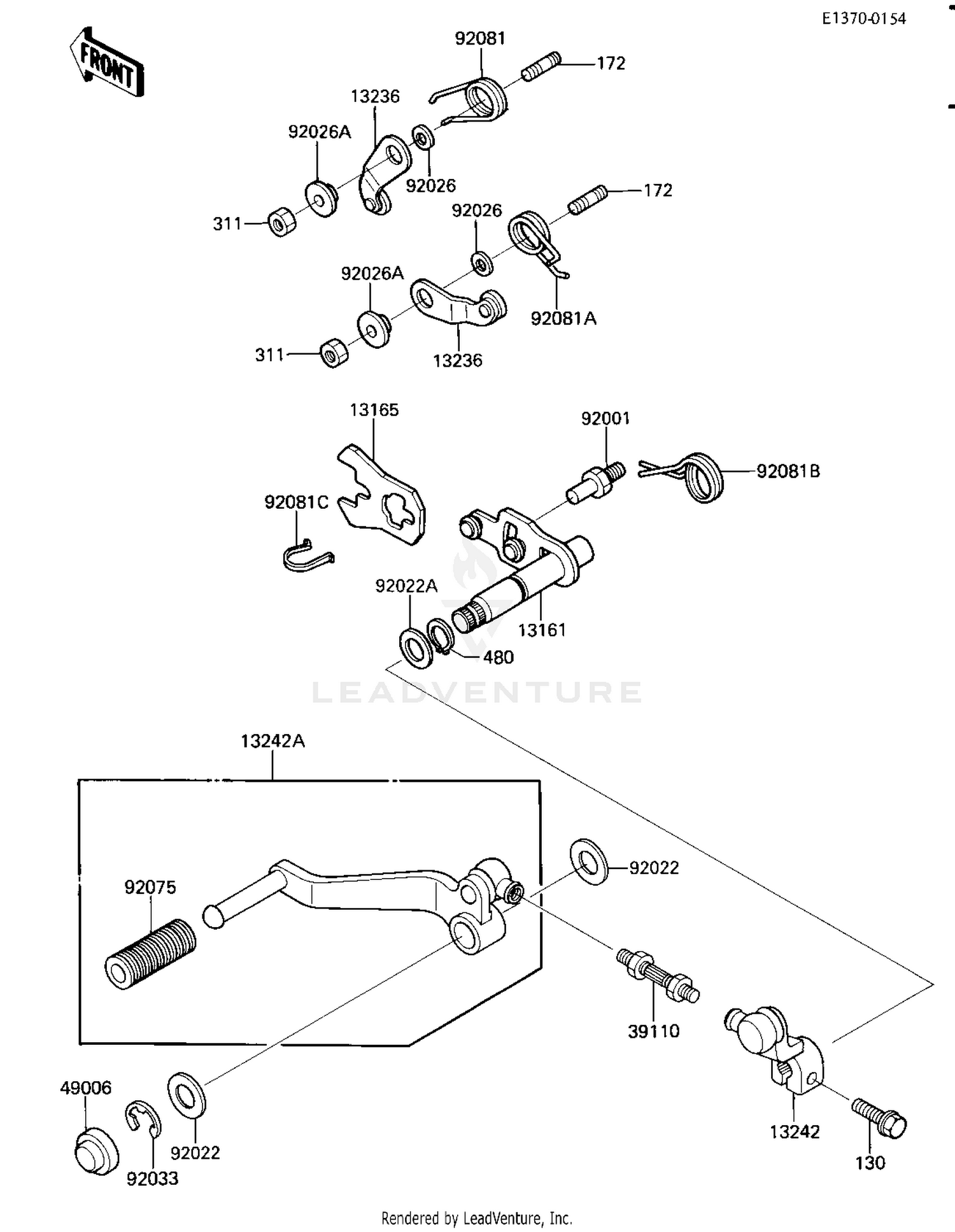

GEAR CHANGE MECHANISM

GEAR CHANGE MECHANISM

Parts (21)

RefPart NumberDescription
130 130CB0620 BOLT-FLANGED,6X20 This part replaces 130S0620. Price: $7.65
172 172G0614 BOLT-STUD,6X14 Price: $1.04
311 311BA0600 NUT-HEX,6MM This part replaces 311G0600. Price: $2.23
13161 13161-1106 LEVER-COMP-CHANGE SHA Price: $86.01
13165 13165-1120 PAWL Price: $14.10
13236 13236-1103 LEVER-COMP,GEAR POSITION Price: $19.85
13242 13242-1195 LEVER-ASSY-CHANGE Price: $53.68
13242A 13242-1271 LEVER-ASSY-CHANGE,PED Price: $104.32
39110 39110-1054 ROD-ASSY-TIE Price: $12.31
49006 49006-1061 BOOT,CHANGE LEVER Price: $8.96
92001 92001-1455 BOLT,RETURN SPRING This part replaces 92001-1401. Price: $4.69
92022 92022-1593 WASHER,12.5X22X1.2 Price: $4.50
92022A 92026-1532 SPACER This part replaces 92022-1772. Price: $4.46
92026 92026-094 SPACER,6.3X12X1.0 Price: $9.18
92026A 92026-1217 SPACER Price: $5.52
92033 92033-1178 RING-SNAP,TYPE-E,10MM Price: $4.26
92075 92161-1532 DAMPER,CHANGE PEDAL This part replaces 13157-004. Price: $6.24
92081 92081-1645 SPRING Price: $13.71
92081A 92081-1742 SPRING Price: $10.97
92081B 92081-1750 SPRING,CHANGE PEDAL R Price: $11.40
92081C 92081-1829 SPRING,CHANGE LEVER Price: $8.79
