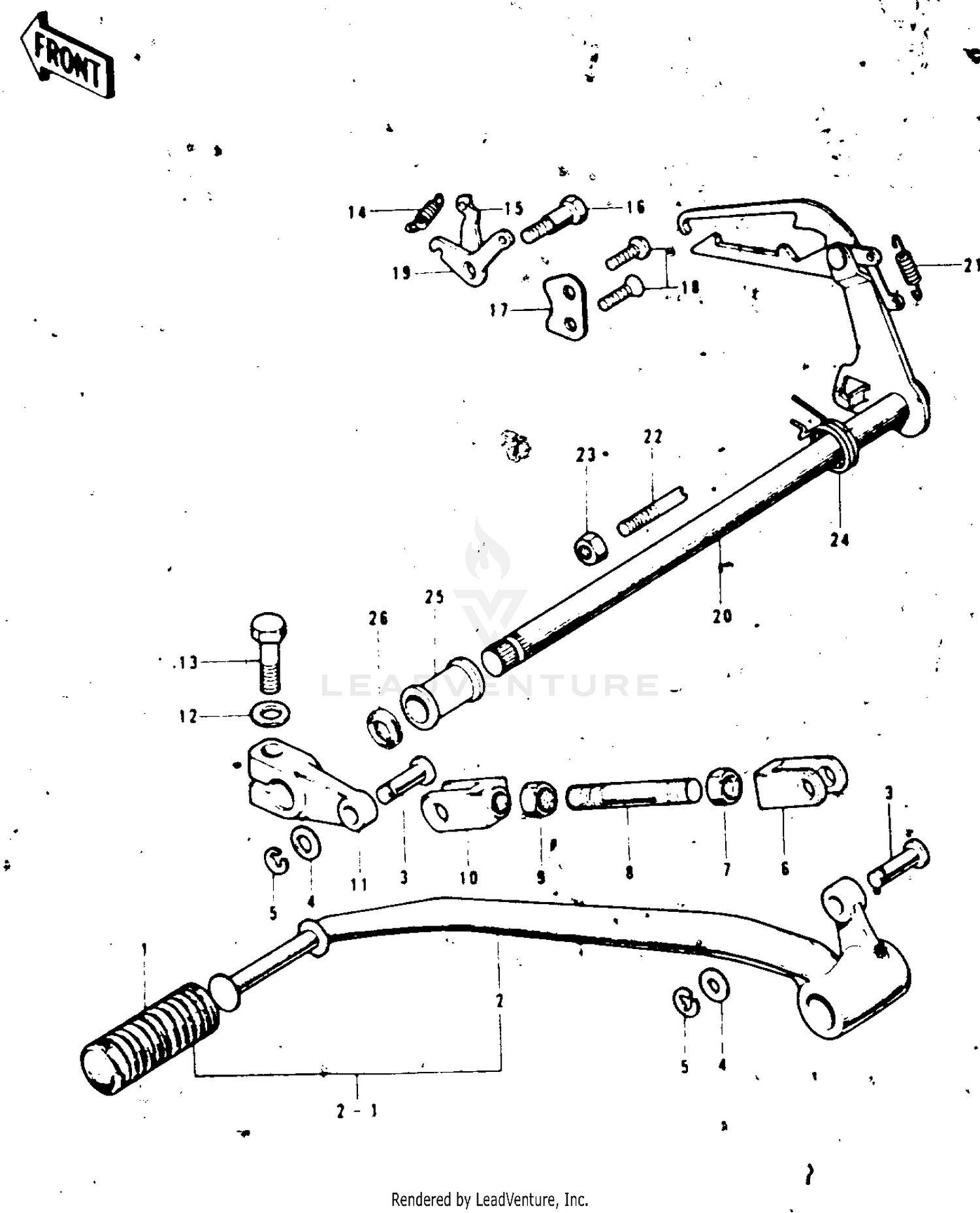

| Ref | Part Number | Description |
|---|
| 1 |
92161-1532 |
DAMPER,CHANGE PEDAL This part replaces 13157-004. Price: $6.24 |
| 2 |
13242-009 |
PEDAL ASY,GEAR CHANGE Price: $74.51 |
| 3 |
92043-069 |
PIN Price: $14.81 |
| 4 |
92022-1028 |
WASHER,8.5X13X1 Price: $3.92 |
| 5 |
482K5000 |
CIRCLIP 5MM Price: $2.96 |
| 6 |
13159-008 |
CONNECTOR,B Price: $22.05 |
| 7 |
92017-010 |
NUT,8MM Price: $8.41 |
| 8 |
92003-074 |
ROD Price: $23.03 |
| 9 |
318N0800 |
NUT,8MM Price: $3.58 |
| 10 |
13159-007 |
CONNECTOR,A Price: $20.98 |
| 11 |
13158-007 |
LEVER-GEAR CHANGE Price: $71.09 |
| 12 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 13 |
114N0825 |
BOLT,8X25 Price: $5.44 |
| 14 |
92081-091 |
SPRING-COIL Price: $7.93 |
| 15 |
13170-005 |
PLATE-CHNG DRUM LEVER Price: $12.95 |
| 16 |
92011-023 |
SCREW-PAN HEAD Price: $4.04 |
| 17 |
13169-007 |
PLATE-DRUM LEV POSTON Price: $13.59 |
| 18 |
221AA0616 |
SCREW-CSK-CROS,6X16 This part replaces 221B0616. Price: $0.59 |
| 19 |
13236-002 |
LEVER ASSY-CHNG RETRN Price: $29.87 |
| 20 |
13161-036 |
LEVER ASSY GEAR CHNG Price: $89.25 |
| 21 |
92144-1720 |
SPRING,CHANGE LEVER Price: $4.74 |
| 22 |
92001-1455 |
BOLT,RETURN SPRING This part replaces 92001-1401. Price: $4.69 |
| 23 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 312B0800. Price: $0.59 |
| 24 |
92081-1129 |
SPRING,TENSION Price: $9.43 |
| 25 |
13171-004 |
DUST SHIELD-CHNG SHT Price: $10.03 |
