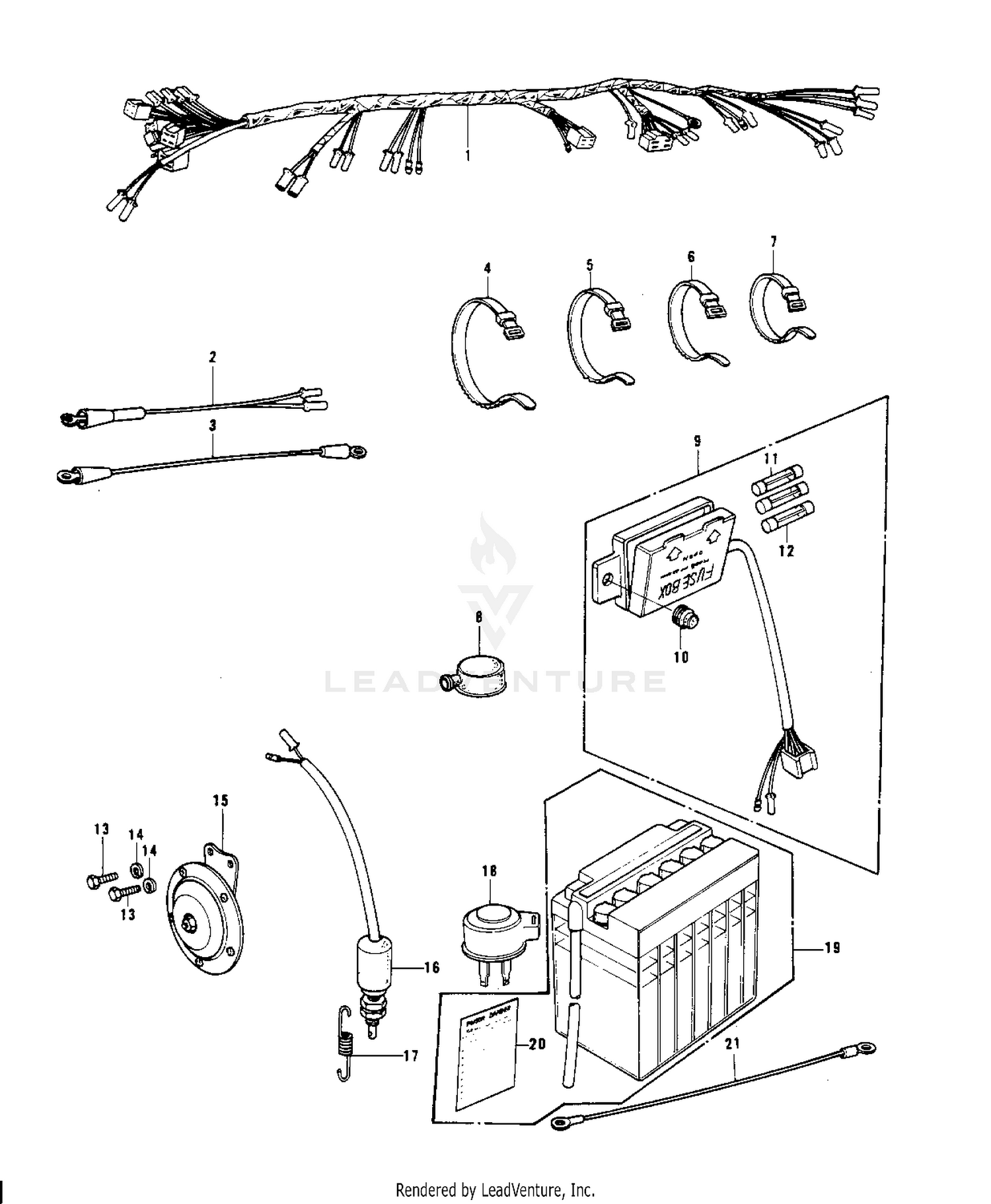

| Ref | Part Number | Description |
|---|
| 1 |
26001-132 |
WIRING HARNESS,MAIN Price: $130.90 |
| 2 |
26010-033 |
WIRE,BATTERY LEAD Price: $15.23 |
| 3 |
26010-017 |
WIRE BATTERY GROUND Price: $4.23 |
| 4 |
92072-032 |
BAND,L=218 Price: $5.00 |
| 5 |
92072-056 |
BAND,L=186 Price: $5.00 |
| 6 |
92072-031 |
BAND,L=149 Price: $5.00 |
| 7 |
92072-030 |
BAND,L=123 Price: $5.00 |
| 8 |
92071-1120 |
GROMMET,STARTER TERMINAL This part replaces 92073-001. Price: $13.08 |
| 9 |
26004-035 |
FUSE ASSY Price: $75.54 |
| 10 |
92075-279 |
DAMPER RUBBER,FUSE Price: $6.45 |
| 11 |
26006-005 |
FUSE,GLASS TUBE,6.4X25,20 Price: $5.06 |
| 12 |
26006-003 |
FUSE,GLASS TUBE,6.4X25,10 Price: $4.72 |
| 13 |
115BA0816 |
BOLT-SMALL-UPSET This part replaces 115G0816. Price: $0.70 |
| 14 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 15 |
27003-066 |
HORN Price: $174.18 |
| 16 |
27010-1482 |
SWITCH,REAR BRAKE This part replaces 27010-015. Price: $35.68 |
| 17 |
27011-013 |
SPRING-BRAKE LAMP SW Price: $14.69 |
| 18 |
27002-0003 |
RELAY-ASSY This part replaces 27002-011. Price: $101.43 |
| 20 |
56040-1036 |
LABEL-WARNING,BATTERY Price: $3.25 |
