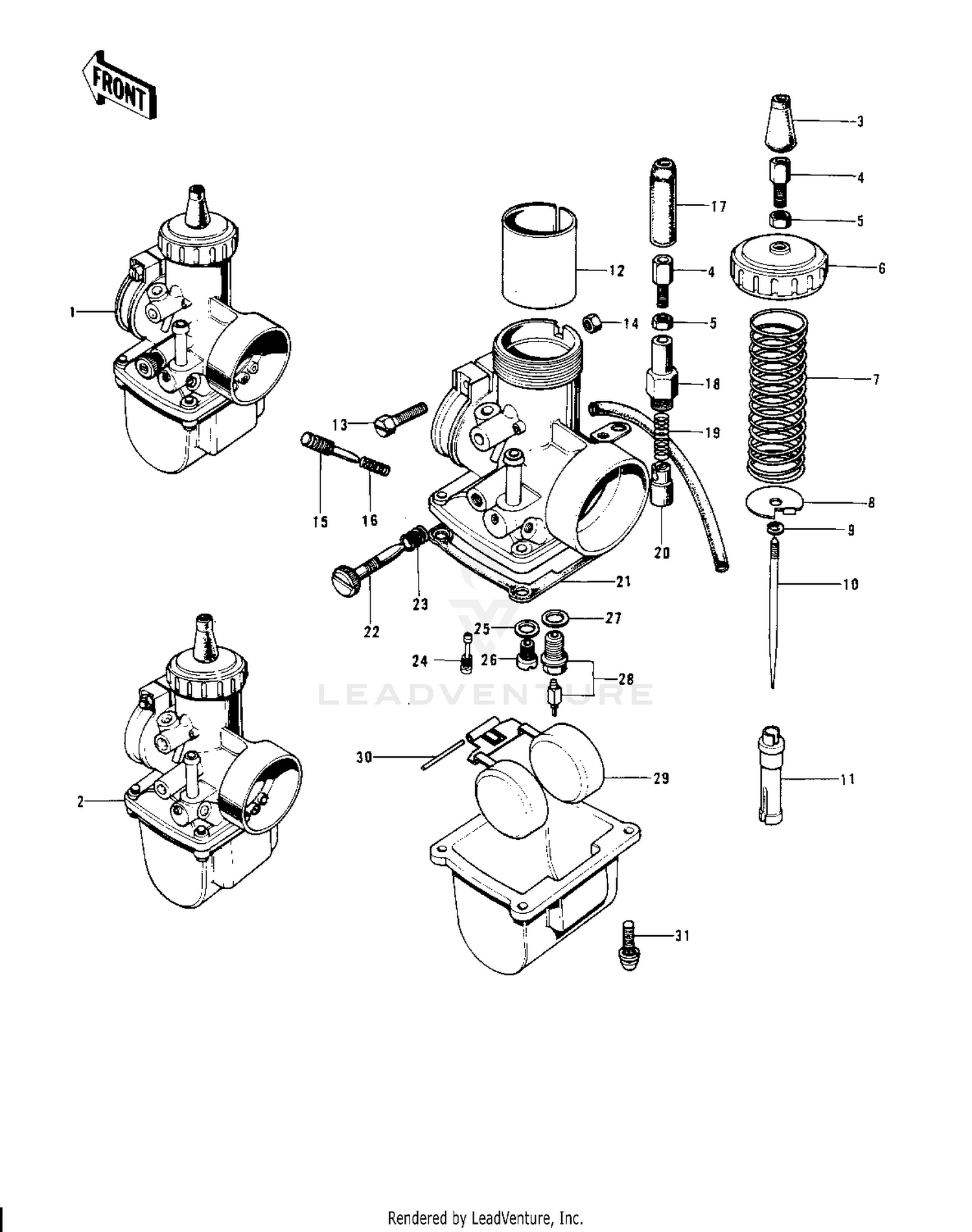

| Ref | Part Number | Description |
|---|
| 3 |
16036-007 |
CAP,CARBURETOR Price: $17.80 |
| 4 |
16002-004 |
CABLE ADJUSTER Price: $10.67 |
| 5 |
16003-004 |
NUT CABLE ADJUST LOCK Price: $7.34 |
| 6 |
16004-025 |
CAP-CHAMBER Price: $33.28 |
| 7 |
16006-024 |
SPRING,THROTTLE VALV Price: $11.13 |
| 8 |
16007-023 |
SEAT-SPRING,THROTTLE VALVE Price: $10.19 |
| 9 |
16008-010 |
CIRCLIP Price: $9.21 |
| 10 |
16009-047 |
JET NEEDLE 4EJ4 Price: $26.92 |
| 11 |
16017-079 |
NEEDLE JET,O-2 Price: $22.31 |
| 12 |
16025-071 |
VALVE,THROTTLE CA2.0 Price: $80.05 |
| 12 |
16025-072 |
VALVE,THROTTLE CA2.0 Price: $93.33 |
| 13 |
16010-004 |
SCREW CLAMP Price: $5.57 |
| 14 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 15 |
16014-006 |
SCREW Price: $17.15 |
| 16 |
16022-007 |
SPRING,PILOT AIR SCREW Price: $8.13 |
| 17 |
49006-1235 |
BOOT,STARTER PLUNGER This part replaces 16036-005. Price: $11.27 |
| 18 |
16012-008 |
CAP STARTER PLUNGER Price: $7.44 |
| 19 |
16013-003 |
SPRING-PLUNGER Price: $6.16 |
| 20 |
16016-002 |
PLUNGER-ENRICHNER Price: $31.85 |
| 21 |
16019-013 |
GASKET FLOAT CHAMBER Price: $34.41 |
| 22 |
16021-013 |
SCREW-THROTTLE STOP Price: $15.63 |
| 23 |
16022-005 |
SPRING THR STOP SCREW Price: $8.68 |
| 24 |
92064-1043 |
JET-PILOT,#A20 This part replaces 92064-021. Price: $17.00 |
| 25 |
16034-001 |
WASHER MAIN JET Price: $4.31 |
| 26 |
92063-1323 |
JET-MAIN,#A85R This part replaces 92063-093. Price: $16.92 |
| 27 |
16029-004 |
GASKET,FLOAT VALVE SEAT Price: $3.89 |
| 28 |
16030-005 |
FLOAT VALVE ASSY Price: $58.86 |
| 29 |
16031-016 |
FLOAT Price: $133.63 |
| 30 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
