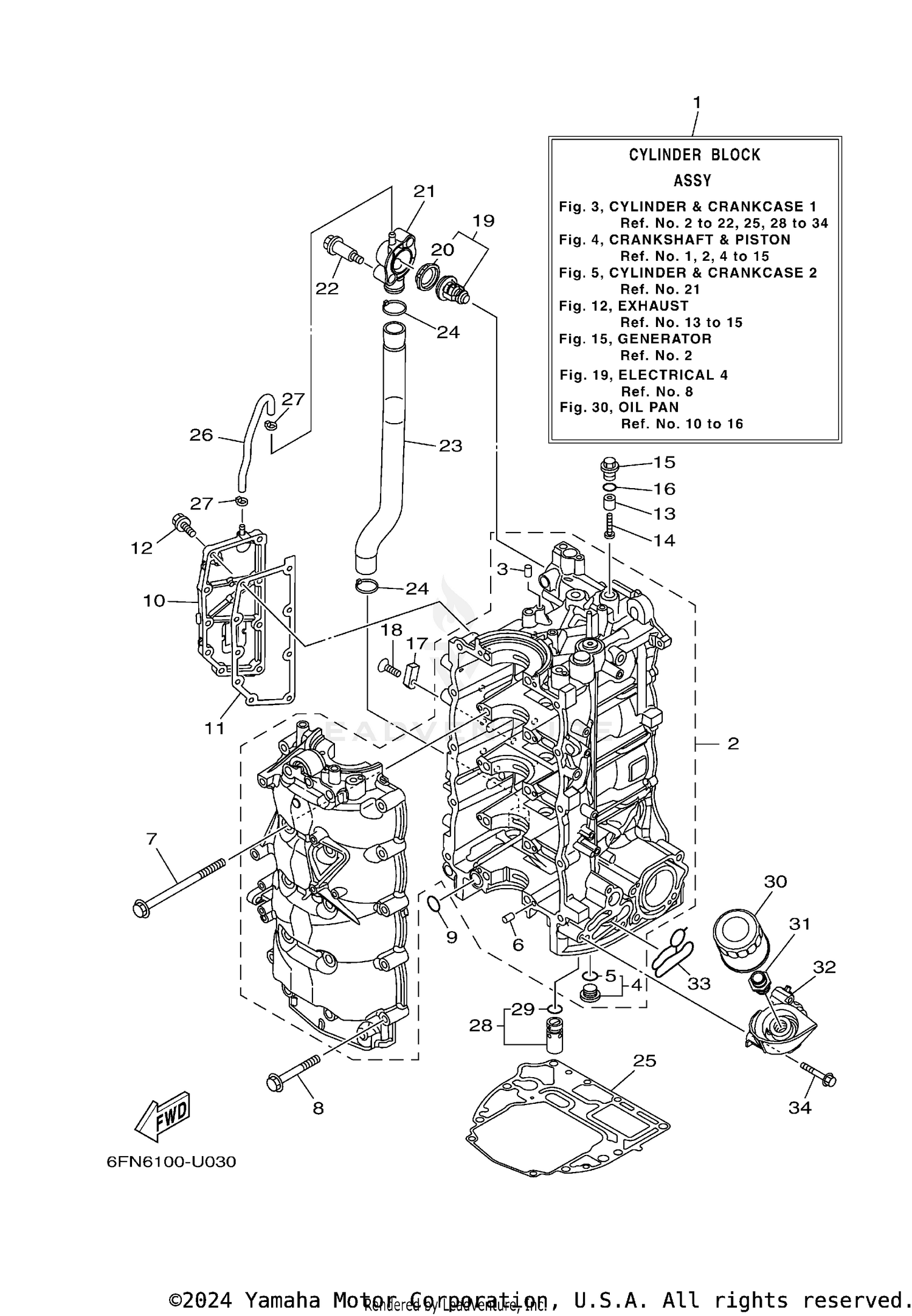

| Ref | Part Number | Description |
|---|
| 1 |
6EK-W009B-14-9S |
CYLINDER BLOCK ASSY This part replaces 6EK-W009B-12-9S. Price: $5,241.55 |
| 2 |
6EK-15109-02-9S |
CRANKCASE ASSY Price: $2,224.05 |
| 3 |
93606-19M23-00 |
PIN, DOWEL Price: $2.55 |
| 4 |
6EK-11313-00-00 |
PLUG, BLIND Price: $24.60 |
| 5 |
93210-20802-00 |
O-RING This part replaces 93210-207A0-00. Price: $0.95 |
| 6 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 7 |
90119-10057-00 |
BOLT, WITH WASHER Price: $5.00 |
| 8 |
90105-08170-00 |
BOLT, FLANGE Price: $8.10 |
| 9 |
93210-19MJ1-00 |
O-RING Price: $5.55 |
| 10 |
6EK-15414-00-9S |
COVER, AIR CLEANER Price: $78.85 |
| 11 |
6EK-15353-01-00 |
GASKET, DRAIN Price: $13.10 |
| 12 |
90105-06037-00 |
BOLT, FLANGE Price: $3.20 |
| 13 |
6G8-11325-00-00 |
ANODE Price: $3.60 |
| 14 |
98980-05025-00 |
SCREW, BIND Price: $1.40 |
| 15 |
6G8-11197-B0-00 |
PLUG, BLIND This part replaces 6G8-11197-A0-00. Price: $15.99 |
| 16 |
93210-13M63-00 |
O-RING Price: $4.75 |
| 17 |
63P-11325-01-00 |
ANODE Price: $10.55 |
| 18 |
90151-06M02-00 |
SCREW, COUNTERSUNK Price: $3.55 |
| 19 |
6EK-12411-00-00 |
THERMOSTAT Price: $52.55 |
| 20 |
6EK-12412-00-00 |
SEAL, THERMOSTAT Price: $11.80 |
| 21 |
6EK-12413-00-00 |
COVER, THERMOSTAT Price: $10.15 |
| 22 |
90109-06286-00 |
BOLT Price: $4.90 |
| 23 |
6EK-1243A-00-00 |
HOSE 1 Price: $17.75 |
| 24 |
90465-11M59-00 |
CLAMP Price: $7.10 |
| 25 |
6EK-11351-01-00 |
GASKET, CYLINDER This part replaces 6EK-11351-00-00. Price: $87.75 |
| 26 |
6EK-12483-00-00 |
PIPE 3 Price: $4.20 |
| 27 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 28 |
6EK-13490-00-00 |
RELIEF VALVE ASSY Price: $32.30 |
| 29 |
6CB-13473-00-00 |
O-RING Price: $3.95 |
| 30 |
5GH-13440-72-00 |
ELEMENT ASSY, OIL CLEANER This part replaces 5GH-13440-71-00. Price: $16.75 |
| 31 |
90401-20007-00 |
BOLT, UNION Price: $20.30 |
| 32 |
6EK-13446-00-00 |
CONNECTOR Price: $126.75 |
| 33 |
6EK-13475-00-00 |
GASKET Price: $4.05 |
