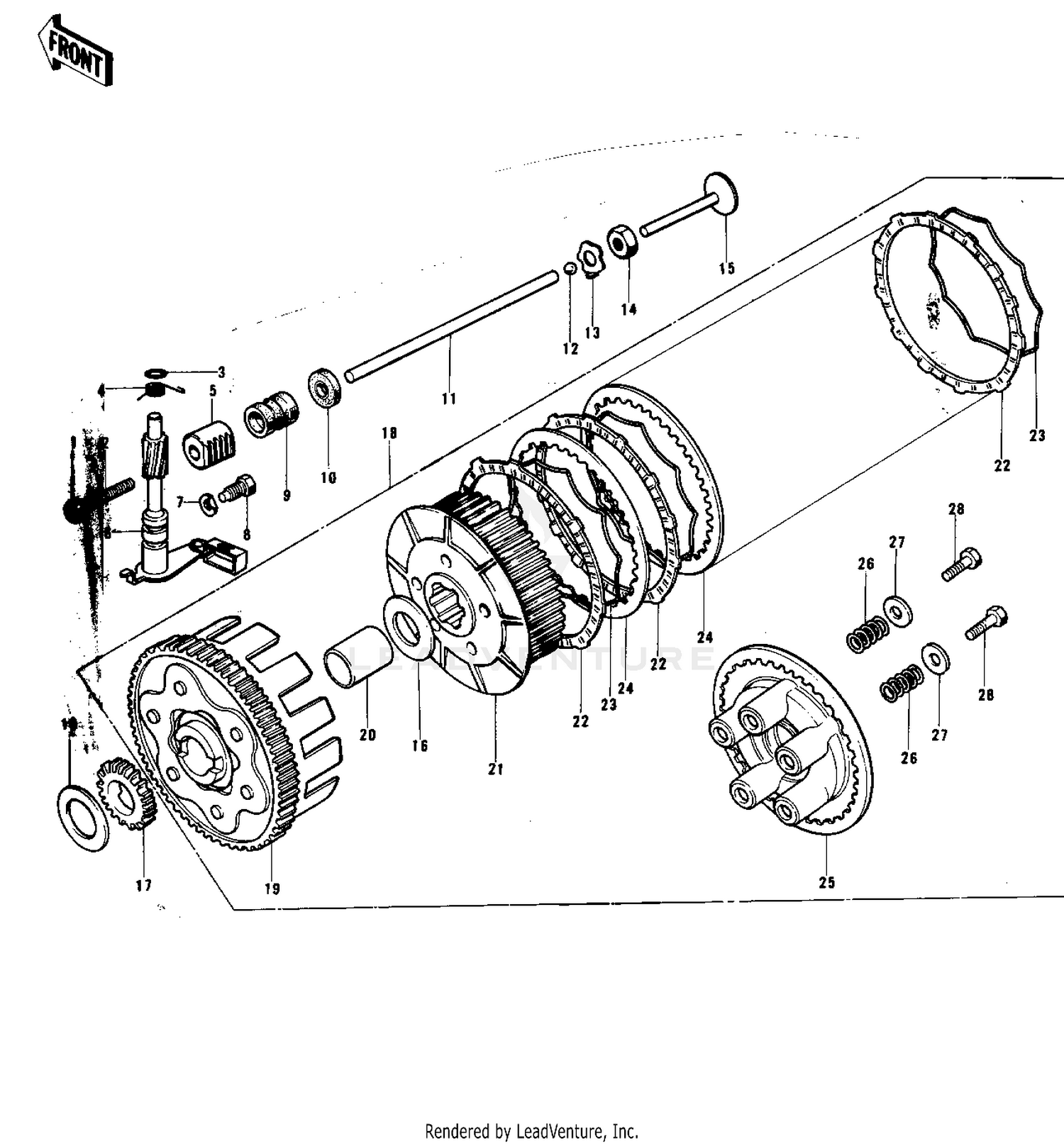

| Ref | Part Number | Description |
|---|
| 1 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 2 |
92014-015 |
SCREW,SLOTTED,6X26 Price: $8.24 |
| 3 |
670B2010 |
O RING,10MM Price: $1.50 |
| 5 |
13116-026 |
ROD,CLTCH RELESE PUSH Price: $36.38 |
| 6 |
13234-003 |
SHAFT ASY,CLTCH RELES Price: $100.37 |
| 7 |
92031-009 |
WASHER,LOCK Price: $4.58 |
| 8 |
92003-130 |
BOLT,CLUTCH RELEASE Price: $6.01 |
| 9 |
92027-207 |
COLLAR Price: $6.03 |
| 10 |
92050-058 |
OIL SEAL,PUSH ROD Price: $11.08 |
| 11 |
13116-027 |
ROD,CLUTCH PUSH,LONG Price: $16.78 |
| 12 |
600A0700 |
BALL STEEL 7/32' Price: $1.64 |
| 13 |
92024-046 |
WASHER-LOCK,14MM Price: $4.78 |
| 14 |
315AA1400 |
NUT,14MM This part replaces 315B1400. Price: $2.17 |
| 15 |
13116-016 |
PUSHER-CLTCH SPRG PLT Price: $21.08 |
| 16 |
92022-270 |
WASHER,17.3X30X1.4 Price: $9.84 |
| 17 |
13075-010 |
PINION,KICKSTARTER Price: $58.02 |
| 18 |
13081-077 |
CLUTCH-ASSY Price: $331.07 |
| 19 |
13095-1034 |
HOUSING CLUTCH Price: $455.07 |
| 20 |
92028-138 |
BUSHING,CLUTCH Price: $28.22 |
| 21 |
13087-038 |
HUB,CLUTCH Price: $85.84 |
| 22 |
13088-1015 |
PLATE-FRICTION Price: $20.55 |
| 23 |
13229-002 |
RING-CLUTCH STEEL Price: $13.58 |
| 24 |
13089-003 |
PLATE CLUTCH STEEL Price: $14.22 |
| 25 |
13187-004 |
PLATE-CLUTCH SPRING Price: $41.41 |
| 26 |
92081-080 |
SPRING-CLUTCH Price: $15.34 |
| 27 |
92022-167 |
WASHER-PLAIN,5MM Price: $2.74 |
