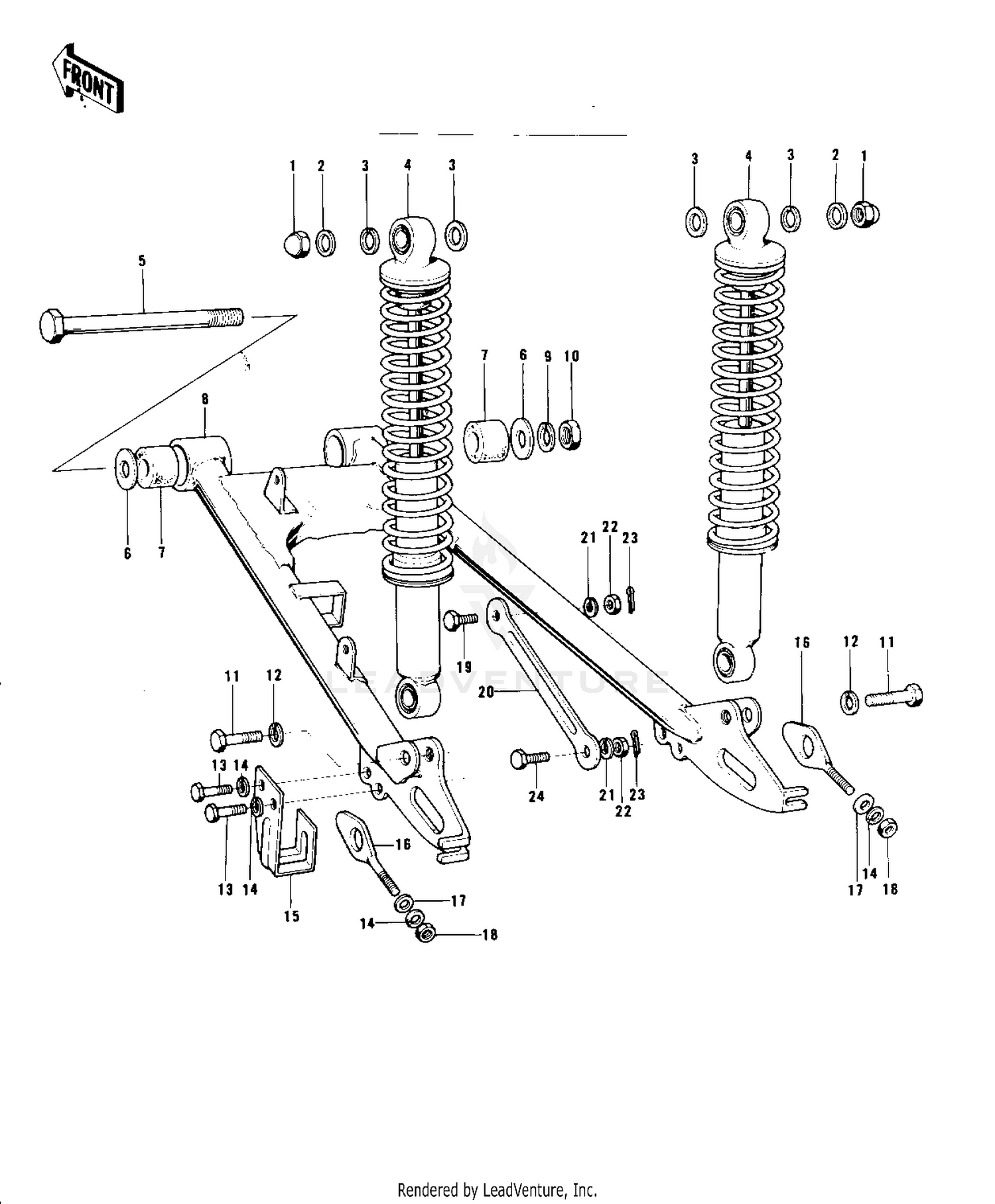

| Ref | Part Number | Description |
|---|
| 1 |
92020-014 |
NUT 12MM Price: $9.45 |
| 2 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 3 |
410AA1200 |
WASHER-PLAIN-SMALL,12MM This part replaces 410B1200. Price: $0.72 |
| 4 |
45014-100 |
SHOCK ABSBR RR Price: $112.66 |
| 5 |
33032-043 |
SHAFT,SWING ARM PIVOT Price: $28.34 |
| 6 |
410AA1200 |
WASHER-PLAIN-SMALL,12MM This part replaces 410B1200. Price: $0.72 |
| 7 |
92092-005 |
BUSHING-RUBBER Price: $14.10 |
| 8 |
33001-055 |
ARM,SWINGING Price: $106.82 |
| 9 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 10 |
92015-1381 |
NUT,12MM This part replaces 314B1200. Price: $2.67 |
| 11 |
113N1028 |
BOLT HEX HEAD 10X28 Price: $3.83 |
| 12 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 13 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 14 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 15 |
55020-012 |
GUARD,CHAIN Price: $9.13 |
| 16 |
33040-008 |
ADJUSTER CHAIN Price: $10.48 |
| 17 |
92022-024 |
WASHER,7X16X1.2 Price: $3.65 |
| 19 |
92003-017 |
BOLT TORQUE LINK FIT Price: $5.68 |
| 20 |
43007-037 |
TORQUE LINK,RR BRAKE Price: $13.71 |
| 21 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 22 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 23 |
550AA2015 |
PIN-COTTER,2.0X15 This part replaces 550D2015. Price: $1.12 |
