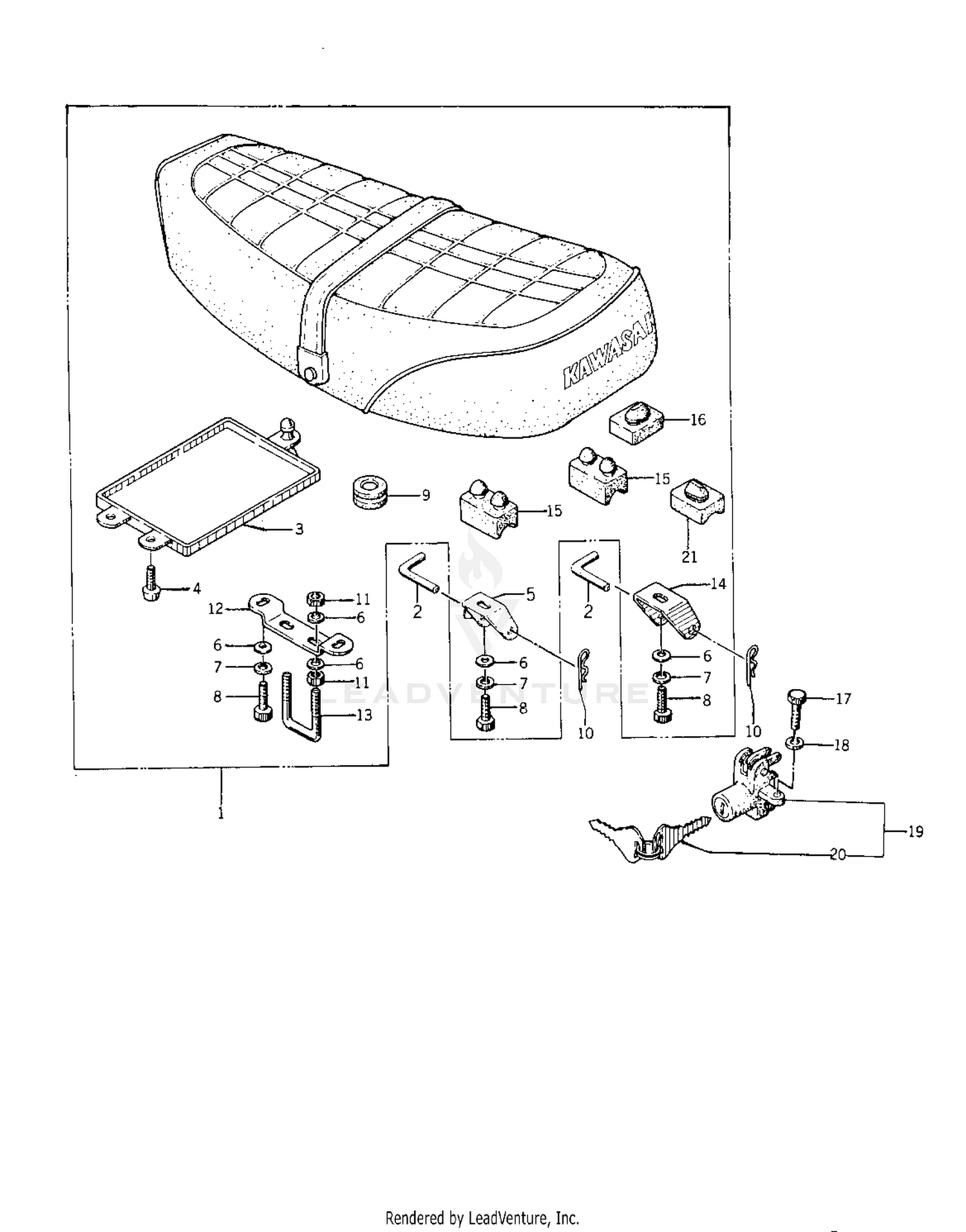

| Ref | Part Number | Description |
|---|
| 1 |
53001-133 |
SEAT-ASSY,DUAL Price: $395.22 |
| 2 |
92043-1064 |
PIN,SEAT PIVOT Price: $5.51 |
| 3 |
32099-011 |
CASE Price: $16.66 |
| 4 |
220AA0510 |
SCREW-PAN-CROS,5X10 This part replaces 220B0510. Price: $0.71 |
| 5 |
53009-035 |
HINGE,FRONT Price: $7.03 |
| 6 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 7 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 8 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 9 |
92071-056 |
GROMMET Price: $4.26 |
| 10 |
92041-003 |
COTTER PIN Price: $5.72 |
| 11 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 12 |
53058-001 |
BRACKET, SEAT CATCH Price: $10.00 |
| 13 |
53056-002 |
CATCH, SEAT Price: $16.66 |
| 14 |
53009-036 |
HINGE,REAR Price: $8.05 |
| 15 |
92075-139 |
DAMPER RUBBER,SEAT Price: $11.46 |
| 16 |
92075-099 |
DAMPER Price: $5.52 |
| 17 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 18 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 19 |
27030-002 |
LOCK ASSY,SEAT Price: $64.83 |
