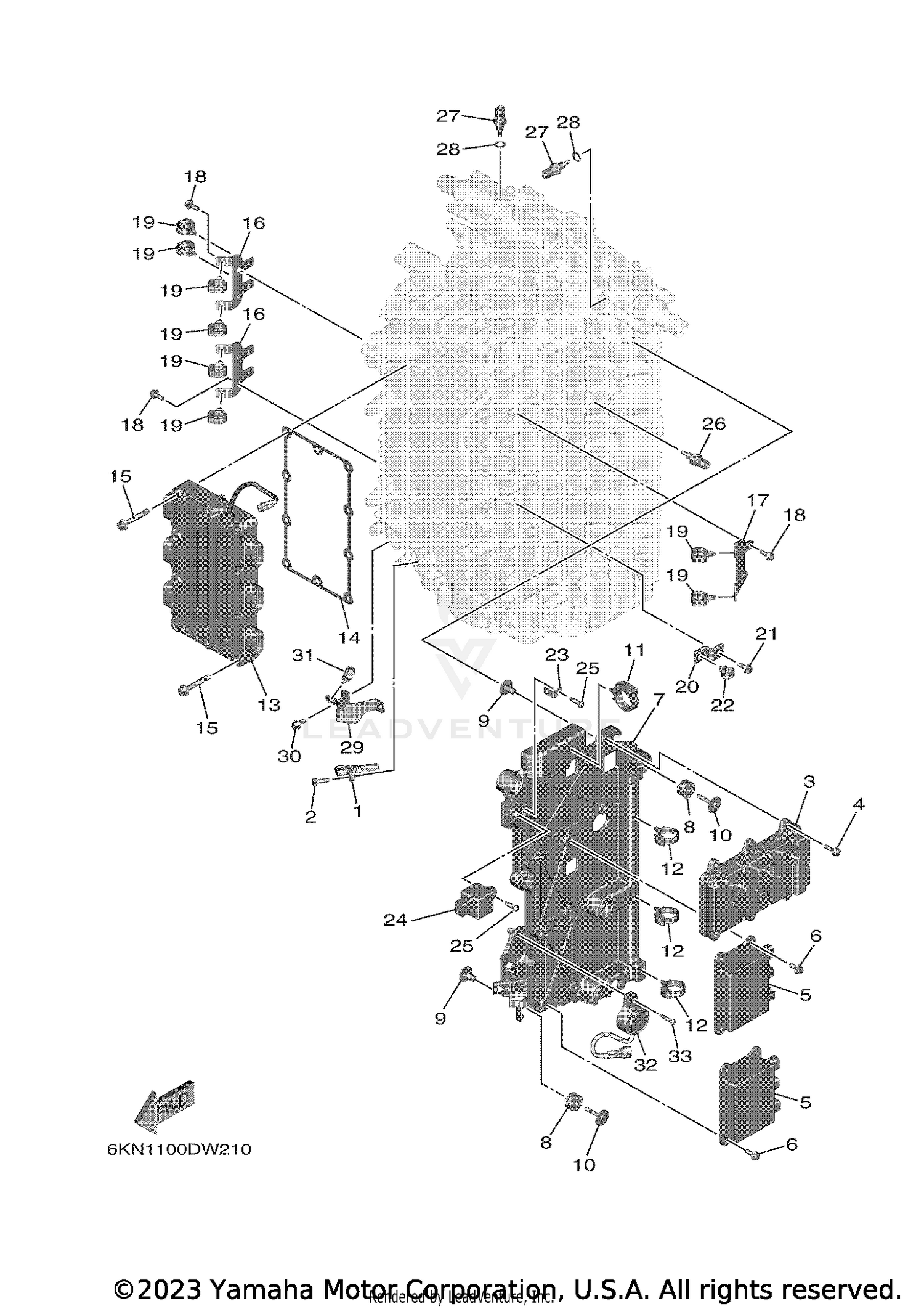

| Ref | Part Number | Description |
|---|
| 1 |
6GR-85895-00-00 |
CRANK POSITION SENSO Price: $114.35 |
| 2 |
97E95-06520-00 |
BOLT, HEXAGON W/W Price: $3.05 |
| 3 |
6KN-8591A-00-00 |
ENGINE CONTROL UNI Price: $2,190.05 |
| 4 |
95D95-06020-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 5 |
6GR-8591B-00-00 |
DRIVER, INJECTOR ASS Price: $911.40 |
| 6 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 7 |
6GR-81948-02-00 |
BRACKET Price: $36.85 |
| 8 |
60V-85564-00-00 |
GROMMET Price: $11.40 |
| 9 |
90387-06176-00 |
COLLAR Price: $5.95 |
| 10 |
68F-85119-00-00 |
BOLT Price: $5.95 |
| 11 |
90464-32002-00 |
CLAMP Price: $2.75 |
| 12 |
90464-12183-00 |
CLAMP Price: $3.50 |
| 13 |
6GR-81960-11-00 |
RECTIFIER & REGULATOR ASSY This part replaces 6GR-81960-10-00. Price: $1,002.40 |
| 14 |
6GR-81975-00-00 |
PLATE, RECTIFIER FIT Price: $17.75 |
| 15 |
90105-08175-00 |
BOLT, FLANGE Price: $6.40 |
| 16 |
6GR-8132G-00-00 |
PLATE Price: $4.65 |
| 17 |
6GR-818D2-00-00 |
PLATE, 2 Price: $7.60 |
| 18 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 19 |
90464-20181-00 |
CLAMP Price: $4.72 |
| 20 |
6DA-82388-00-00 |
PLATE Price: $4.20 |
| 21 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 22 |
90464-13249-00 |
CLAMP Price: $3.55 |
| 23 |
68V-85548-01-00 |
HOLDER Price: $3.05 |
| 24 |
68V-81950-00-00 |
RELAY ASSY Price: $150.80 |
| 25 |
97780-60520-00 |
SCREW, TAPPING This part replaces 97780-60620-00. Price: $4.49 |
| 26 |
52B-H3591-00-00 |
THERMO UNIT This part replaces 4P9-83591-00-00. Price: $37.99 |
| 27 |
6GR-85790-00-00 |
THERMOSENSOR ASSY Price: $29.15 |
| 28 |
90430-10004-00 |
GASKET Price: $7.49 |
| 29 |
6GR-83614-00-00 |
BRACKET Price: $17.10 |
| 30 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 31 |
90464-13249-00 |
CLAMP Price: $3.55 |
| 32 |
6KA-83383-01-00 |
BUZZER Price: $54.15 |
