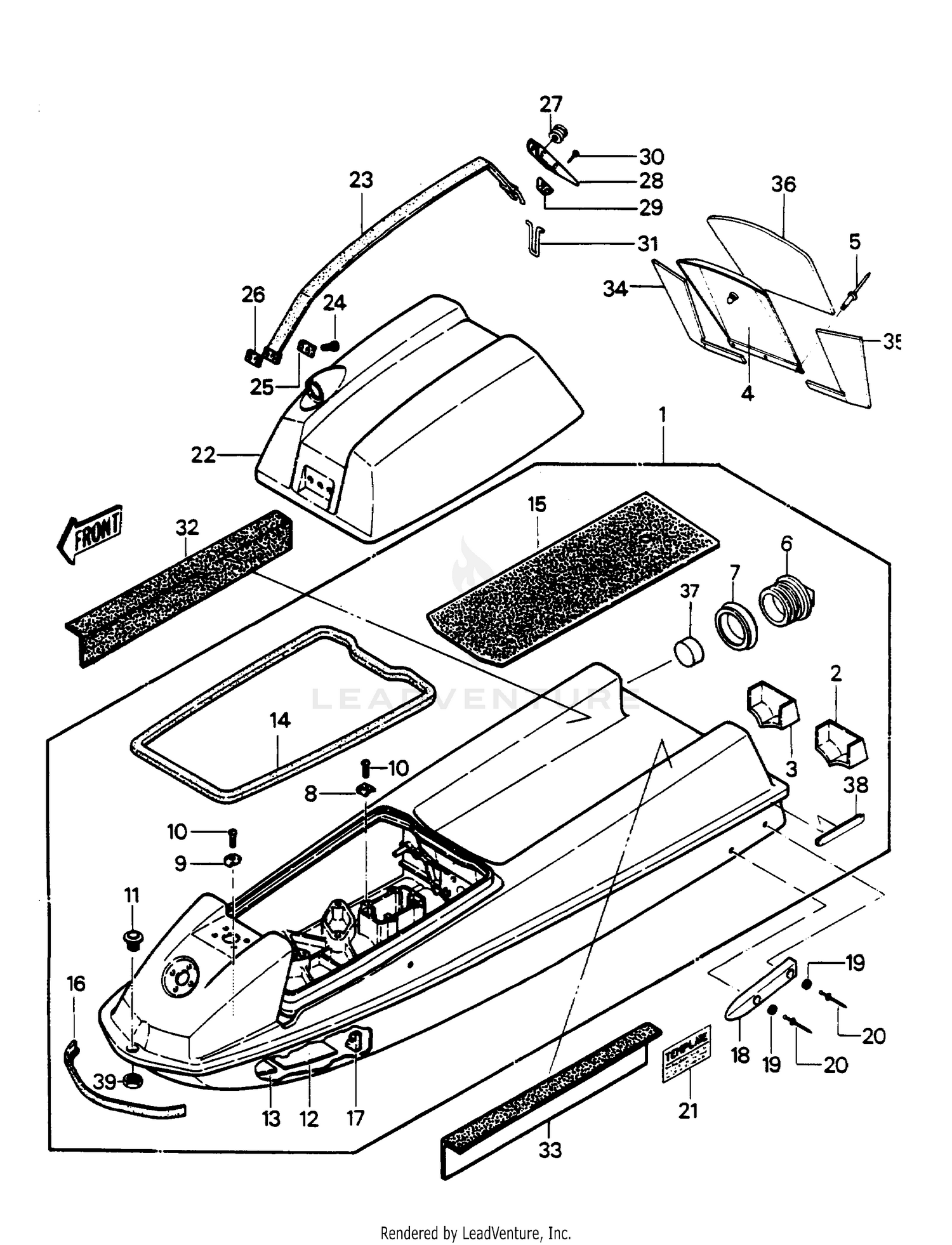

| Ref | Part Number | Description |
|---|
| 1 |
59431-3706-8C |
HULL-ASSY,JET WHITE Price: $1,166.17 |
| 2 |
59251-3006-8C |
HULL EXTENSION-LH Price: $30.15 |
| 3 |
59251-3005-8C |
HULL EXTENSION-RH Price: $20.65 |
| 4 |
14025-3706 |
COVER Price: $7.80 |
| 5 |
92039-3703 |
RIVET Price: $4.69 |
| 6 |
11012-3721 |
CAP This part replaces 11012-3706. Price: $10.51 |
| 7 |
92049-3709 |
SEAL-OIL Price: $13.94 |
| 8 |
27012-501 |
HOOK Price: $4.83 |
| 10 |
92011-561 |
SCREW 0.22 X 0.563 Price: $0.90 |
| 11 |
92028-3724 |
BUSHING Price: $9.14 |
| 12 |
92075-521 |
DAMPER,6.0TX90X300 Price: $34.75 |
| 13 |
92075-522 |
DAMPER,3.OTX90X200 Price: $14.74 |
| 14 |
92065-539 |
GASKET,ENGINE COVER Price: $74.38 |
| 15 |
53004-3828 |
MAT This part replaces 59131-502. Price: $176.43 |
| 16 |
59201-3691 |
BUMPER Price: $14.97 |
| 17 |
59346-504 |
DETENT,STEERING CABLE Price: $8.60 |
| 18 |
59437-3002 |
STABILIZER Price: $33.24 |
| 19 |
92022-3041 |
WASHER,5X16X1.5 Price: $4.18 |
| 20 |
92039-3002 |
RIVET Price: $5.82 |
| 21 |
99969-0560 |
INST JS STABILIZER Price: $2.00 |
| 22 |
59456-3719-8C |
HOOD-COMP-ENGINE,JET This part replaces 59456-3001-8C. Price: $477.02 |
| 23 |
92072-3746 |
BAND,HOOD This part replaces 92072-501. Price: $95.06 |
| 24 |
92001-3022 |
BOLT,6X30 Price: $4.21 |
| 25 |
92022-509 |
WASHER,BAND Price: $4.73 |
| 26 |
59086-501 |
PLATE-ENG. CVR. STRAP Price: $18.58 |
| 27 |
92071-056 |
GROMMET Price: $4.26 |
| 28 |
13168-3701 |
LEVER Price: $34.93 |
| 29 |
59346-503 |
DETENT-HOOD LEVER Price: $4.04 |
| 30 |
92011-562 |
SCREW 0.16X0.5 Price: $1.65 |
| 31 |
53009-503 |
HINGE-HOOD LEVER Price: $14.87 |
| 32 |
53004-3701 |
MAT,DECK FIN,RH Price: $170.95 |
| 33 |
53004-3702 |
MAT,DECK FIN,LH Price: $175.57 |
| 34 |
53004-3709 |
MAT,DASHBOARD,RH Price: $41.75 |
| 35 |
53004-3710 |
MAT,DASHBOARD,LH Price: $41.75 |
| 36 |
53004-3705 |
MAT,DASHBOARD,COVER Price: $51.82 |
| 37 |
92075-3710 |
DAMPER Price: $7.65 |
| 38 |
46075-3701 |
GRIP Price: $10.27 |
| 39 |
92015-3721 |
NUT,20MM Price: $4.40 |
