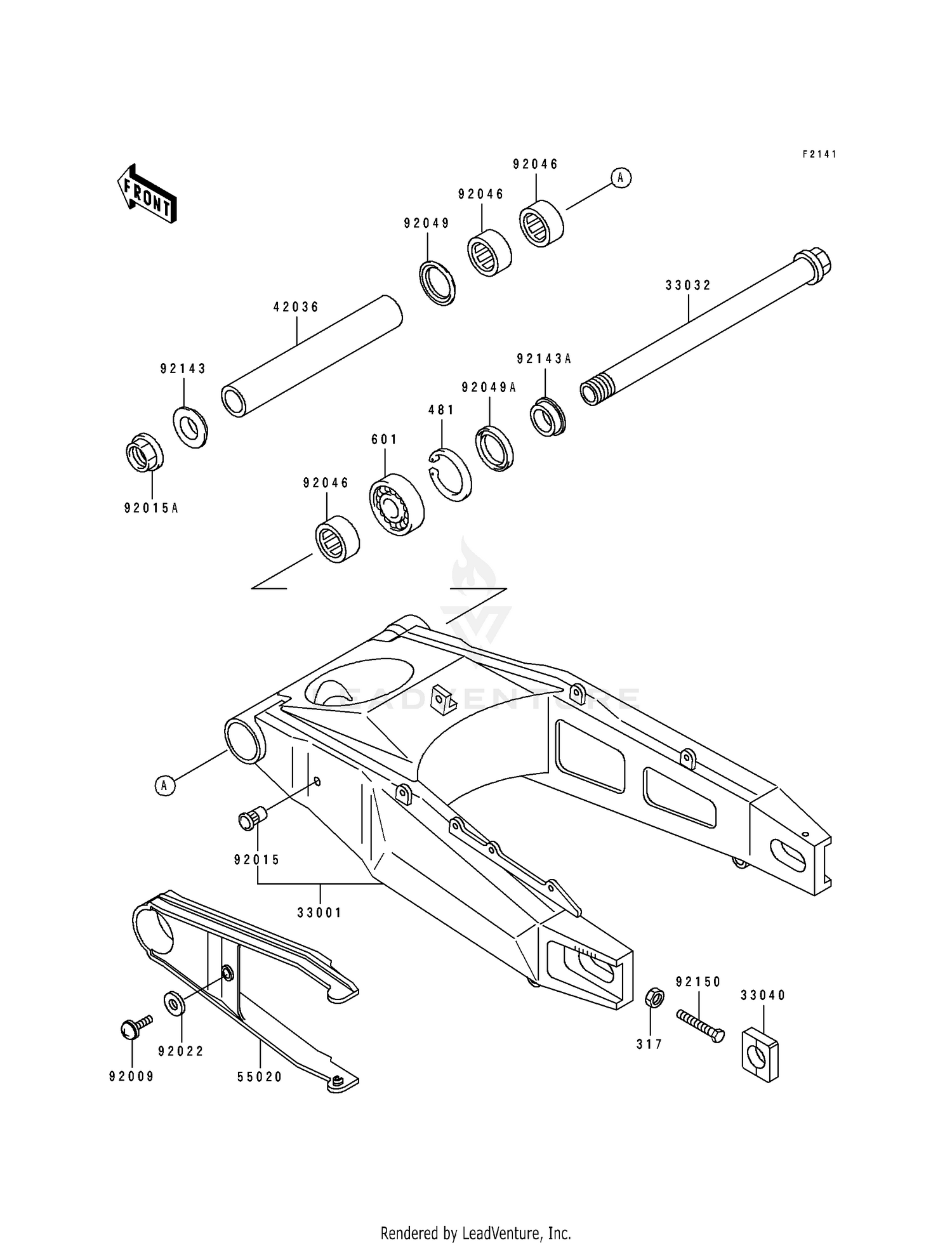

| Ref | Part Number | Description |
|---|
| 317 |
317BA0800 |
NUT-HEX-SMALL,8MM This part replaces 317G0800. Price: $1.67 |
| 481 |
92033-1042 |
RING-SNAP,47MM This part replaces 481J4700. Price: $4.22 |
| 33001 |
33001-1378-KF |
ARM-COMP-SWING,SILVER Price: $1,267.93 |
| 33032 |
33032-1164 |
SHAFT-SWING ARM Price: $79.48 |
| 33040 |
33040-1114 |
ADJUSTER-CHAIN,RH Price: $19.28 |
| 42036 |
42036-1284 |
SLEEVE,SWING ARM,L=22 Price: $83.77 |
| 55020 |
55020-1390 |
GUARD,DRIVE CHAIN Price: $63.92 |
| 92009 |
92009-3805 |
SCREW,6X18 This part replaces 92009-1663. Price: $4.71 |
| 92015 |
92015-1792 |
NUT,POP,6MM,L=16.5 Price: $4.69 |
| 92015A |
92015-1845 |
NUT,FLANGED,25MM Price: $25.20 |
| 92022 |
92022-1143 |
WASHER,6.5X16X1 Price: $3.92 |
| 92046 |
92046-1205 |
BEARING-NEEDLE,BM3520 Price: $30.34 |
| 92049 |
92049-1380 |
SEAL-OIL,MHA 35 42 5.7F Price: $13.08 |
| 92049A |
92049-1381 |
SEAL-OIL,MHA 35X47X5 Price: $13.08 |
| 92143 |
92143-1480 |
COLLAR,SWING ARM,LH,L Price: $25.22 |
| 92143A |
92143-1481 |
COLLAR,SWING ARM,RH,L Price: $30.84 |
| 92150 |
92153-1407 |
BOLT,8X55 This part replaces 92150-1350. Price: $2.15 |
