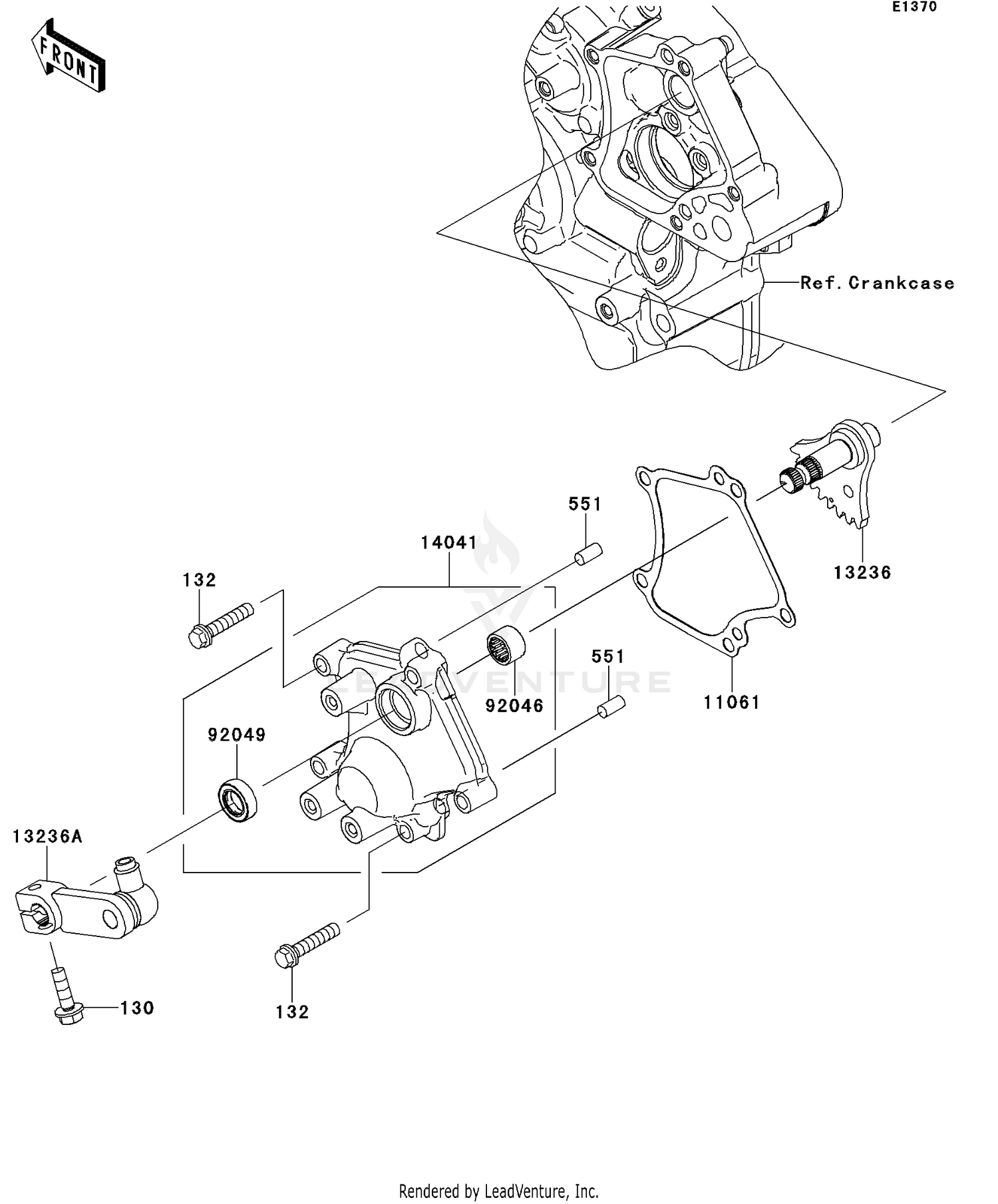

Gear Change Mechanism
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130CD0620 | BOLT-FLANGED,6X20 Price: $1.76 |
| 132 | 132BD0630 | BOLT-FLANGED-SMALL,6X30 Price: $3.67 |
| 551 | 551A0612 | PIN-DOWEL,6X12 Price: $0.94 |
| 11061 | 11061-0725 | GASKET,DRUM COVER Price: $9.09 |
| 13236 | 13236-0707 | LEVER-COMP,CHANGE Price: $43.02 |
| 13236A | 13236-0708 | LEVER-COMP,CHANGE LEVER Price: $45.16 |
| 14041 | 14041-0555 | COVER-COMP,CHANGE Price: $54.86 |
| 92046 | 92046-0034 | BEARING-NEEDLE,HK1210FM Price: $15.63 |
