| Ref | Part Number | Description |
|---|
| 1 |
515177911 |
Indicator This part replaces 515177070. Price: $559.99 |
| 2 |
415129355 |
Speedometer Button Price: $16.49 |
| 3 |
415129348 |
Gauge Ring Price: $13.99 |
| 4 |
415129349 |
Lens Price: $25.99 |
| 5 |
516006224 |
BRP Logo 20MM x 2MM This part replaces 219902677. Price: $14.49 |
| 6 |
517304194 |
RH Headlamp Ass'y Price: $154.99 |
| 6 |
517304195 |
LH Headlamp Ass'y Price: $154.99 |
| 7 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) Price: $24.49 |
| 8 |
Not |
Available As Spare Part - Bulb Holder |
| 9 |
515176498 |
Cap Price: $13.49 |
| 10 |
219800280 |
Rubber Cap Protector This part replaces 515176499. Price: $19.49 |
| 11 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. Price: $1.69 |
| 12 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. Price: $2.19 |
| 13 |
515177249 |
DESS Switch This part replaces 515176815. Price: $114.99 |
| 14 |
515175232 |
Male Terminal Price: $1.59 |
| 15 |
515175494 |
Male Housing, 3 Circuits Price: $16.49 |
| 16 |
409902000 |
Tubing 12 mm Price: $11.99 |
| 17 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. Price: $3.39 |
| 18 |
515178284 |
DESS This part replaces 515177057. Price: $84.99 |
| 19 |
710001248 |
DC Outlet Price: $38.99 |
| 20 |
515176234 |
FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership Price: $12.49 |
| 21 |
710010539 |
Voltage Regulator This part replaces 278002021. Price: $109.99 |
| 22 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 23 |
515177075 |
Main Harness Ass'y Price: $609.99 |
| 24 |
515176883 |
Ground Wire Price: $29.99 |
| 26 |
293750001 |
Tie Wrap 94 mm Price: $1.03 |
| 26 |
293750002 |
Tie Wrap 142 mm Price: $1.25 |
| 26 |
293750008 |
Tie Wrap 368 mm Price: $1.04 |
| 26 |
414115200 |
Tie-Rap 180 mm Price: $0.11 |
| 27 |
710000781 |
Fuse Puller Price: $8.29 |
| 28 |
710001026 |
Fuse Cover Price: $21.99 |
| 29 |
Not |
Available As Spare Part - Fuse label |
| 30 |
278002172 |
Foam Price: $5.99 |
| 31 |
415129856 |
Fuse Box Base Ass´y This part replaces 710000660. Price: $51.99 |
| 32 |
710000742 |
Little Fuse, 5 Amperes Price: $8.99 |
| 33 |
710000743 |
Little Fuse, 7.5 Amperes Price: $8.69 |
| 34 |
710000744 |
Little Fuse, 10 Amperes Price: $8.99 |
| 35 |
710000745 |
Little Fuse, 15 Ampere Price: $8.69 |
| 36 |
710000747 |
Little Fuse, 30 Amperes Price: $8.69 |
| 37 |
515176775 |
Relay, 50 AMP This part replaces 710000740. Price: $16.49 |

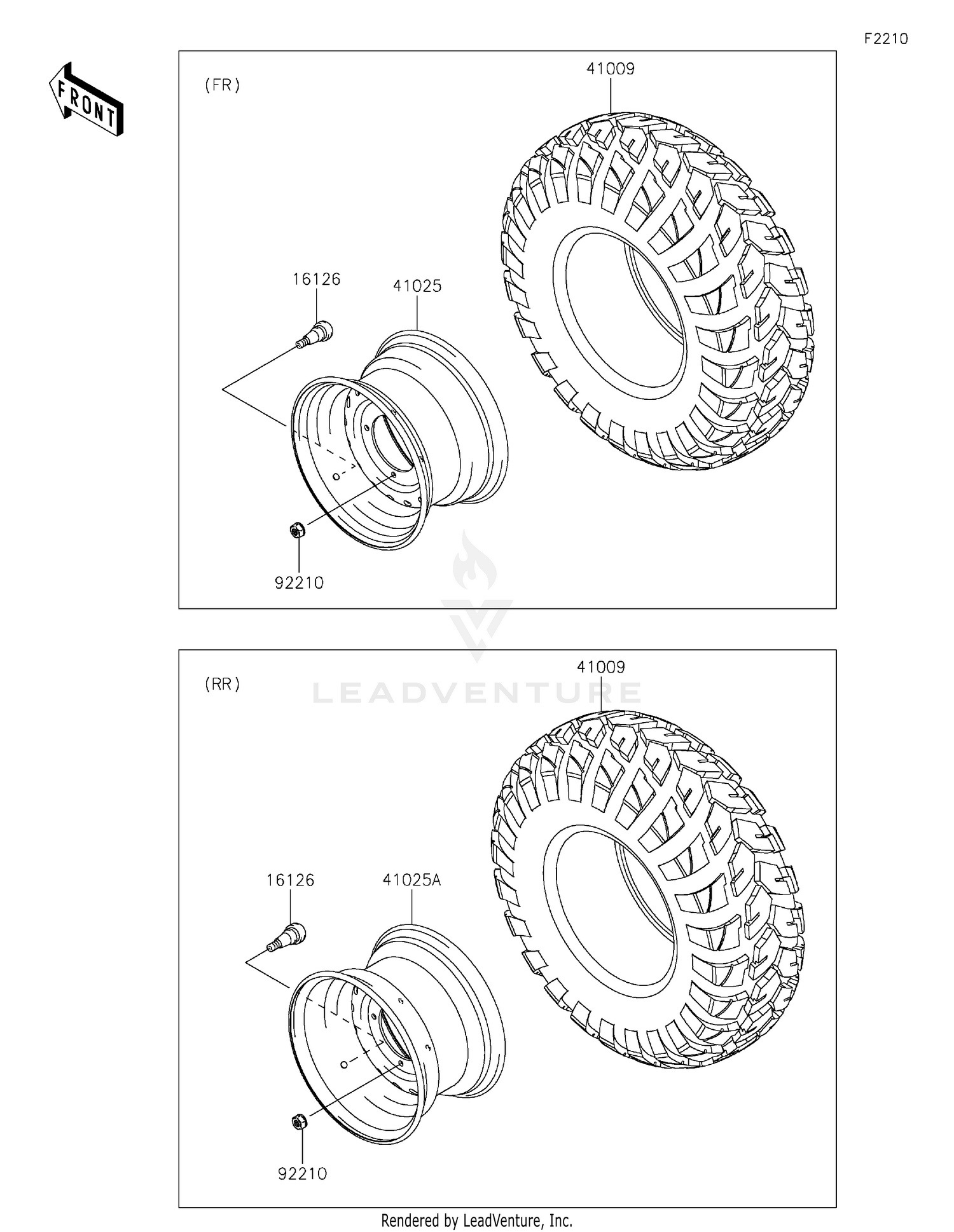

| 16126 |
16126-4001 |
VALVE Price: $12.13 |
| 41009 |
41009-0696 |
TIRE,26X9.00R12 4PR,FRONTIER Price: $191.42 |
| 41025 |
41025-7505-397 |
RIM,FR,12X7.5AT,F.S.BLACK Price: $116.80 |
| 41025A |
41025-7506-397 |
RIM,RR,12X7.5AT,F.S.BLACK Price: $116.80 |
