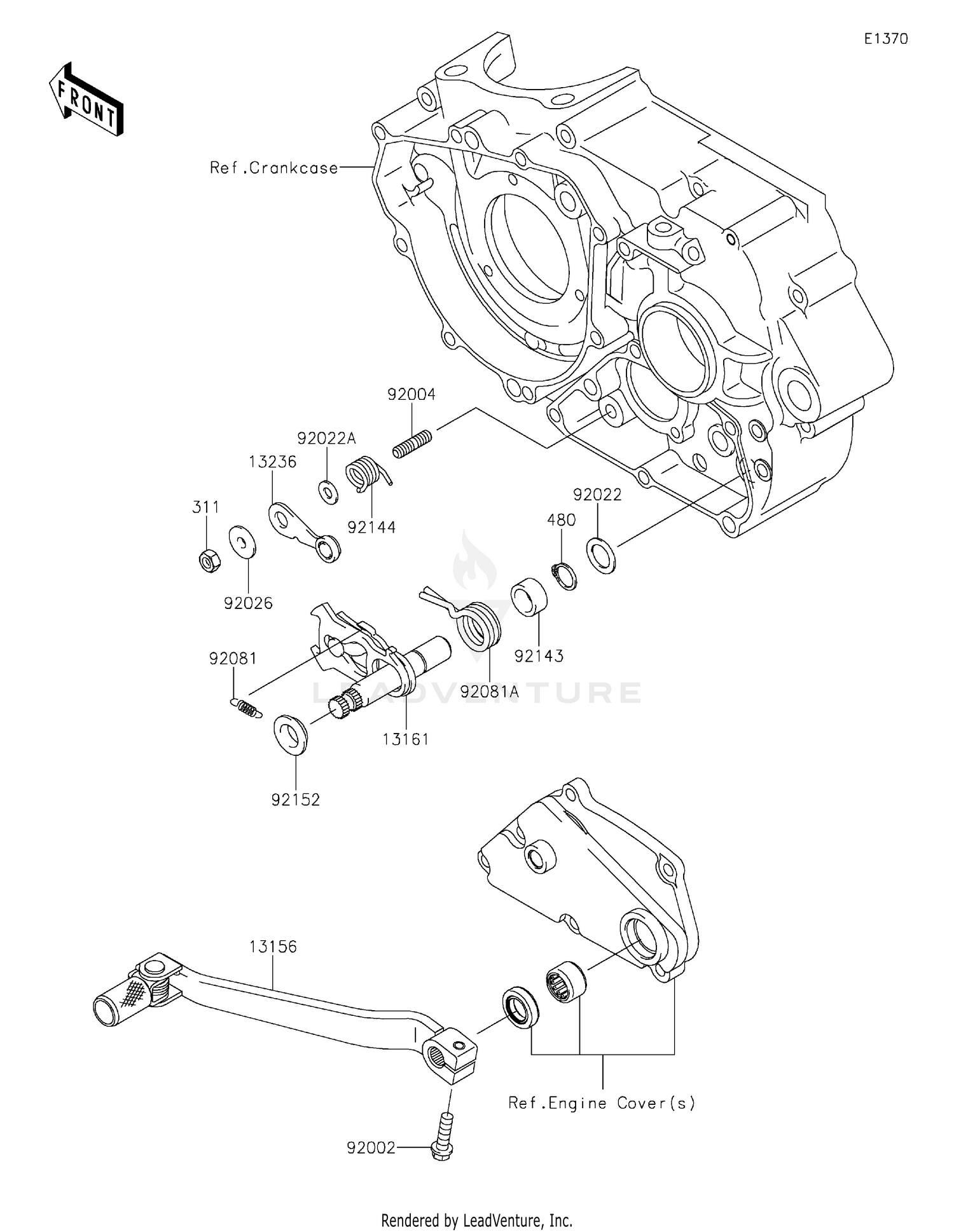

Gear Change Mechanism
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 311 | 311BA0600 | NUT-HEX,6MM Price: $2.23 |
| 13156 | 13156-1480 | LEVER-CHANGE,PEDAL Price: $59.35 |
| 13161 | 13161-1214 | LEVER-COMP-CHANGE SHAFT Price: $64.83 |
| 13236 | 13236-1209 | LEVER-COMP,NEUTRAL POSITION Price: $19.66 |
| 92002 | 92002-1237 | BOLT,6X20 Price: $4.31 |
| 92004 | 92004-0032 | STUD,6X12 Price: $1.79 |
| 92022 | 92022-1496 | WASHER,13.3X20X1 Price: $3.92 |
| 92022A | 92022-1827 | WASHER,6X12.8X1.2 Price: $4.69 |
| 92026 | 92026-1217 | SPACER Price: $5.52 |
| 92081 | 92081-076 | SPRING,CHANGE LEVER Price: $5.46 |
| 92081A | 92081-1129 | SPRING,TENSION Price: $9.43 |
| 92143 | 92143-1148 | COLLAR Price: $4.69 |
| 92144 | 92144-1695 | SPRING Price: $7.60 |
| 92152 | 92152-1075 | COLLAR Price: $4.18 |
