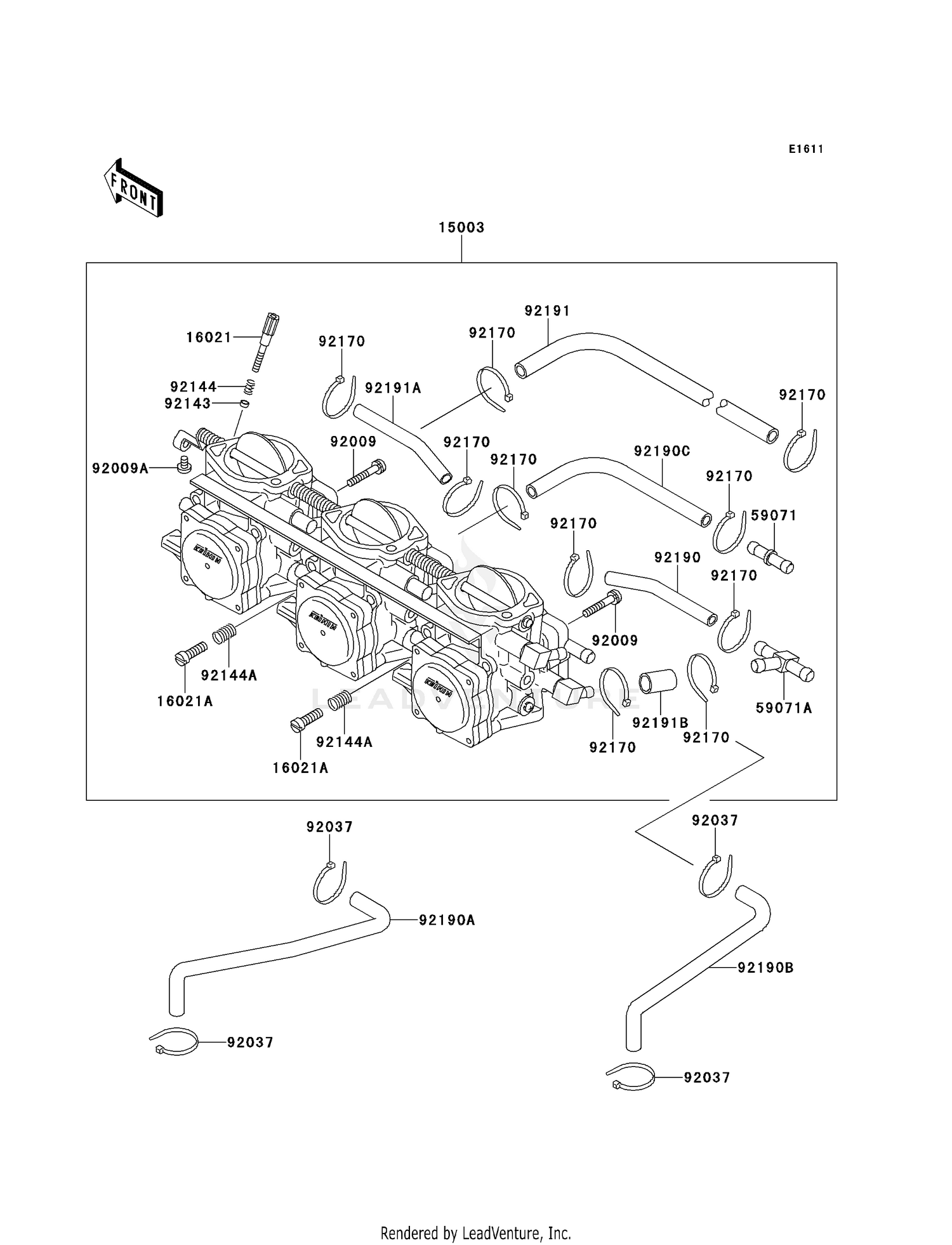

CARBURETOR
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 15003 | 15003-3702 | CARBURETOR-ASSY Price: $1,410.95 |
| 16021 | 16021-3702 | SCREW-THROTTLE STOP Price: $47.91 |
| 16021A | 16021-3704 | SCREW-THROTTLE STOP Price: $42.88 |
| 59071 | 59071-3740 | JOINT Price: $17.52 |
| 59071A | 59071-3741 | JOINT Price: $9.81 |
| 92009 | 92009-3783 | SCREW,5X28 Price: $13.33 |
| 92009A | 92009-3786 | SCREW,4X6 Price: $5.23 |
| 92037 | 92037-1173 | CLAMP Price: $3.49 |
| 92143 | 92143-3709 | COLLAR,THROTTLE STOP Price: $14.05 |
| 92144 | 92144-3706 | SPRING,THROTTLE STOP Price: $7.51 |
| 92144A | 92144-3745 | SPRING,THROTTLE STOP Price: $7.98 |
| 92170 | 92170-3740 | CLAMP,TUBE Price: $5.23 |
| 92190 | 92059-1139 | TUBE,5.3X10.5X160 This part replaces 92190-3910. Price: $14.90 |
| 92190A | 92190-3948 | TUBE Price: $10.88 |
| 92190B | 92190-3949 | TUBE Price: $9.54 |
| 92190C | 92190-3997 | TUBE Price: $10.19 |
| 92191 | 92191-3710 | TUBE Price: $14.31 |
| 92191A | 92191-3711 | TUBE Price: $6.78 |
