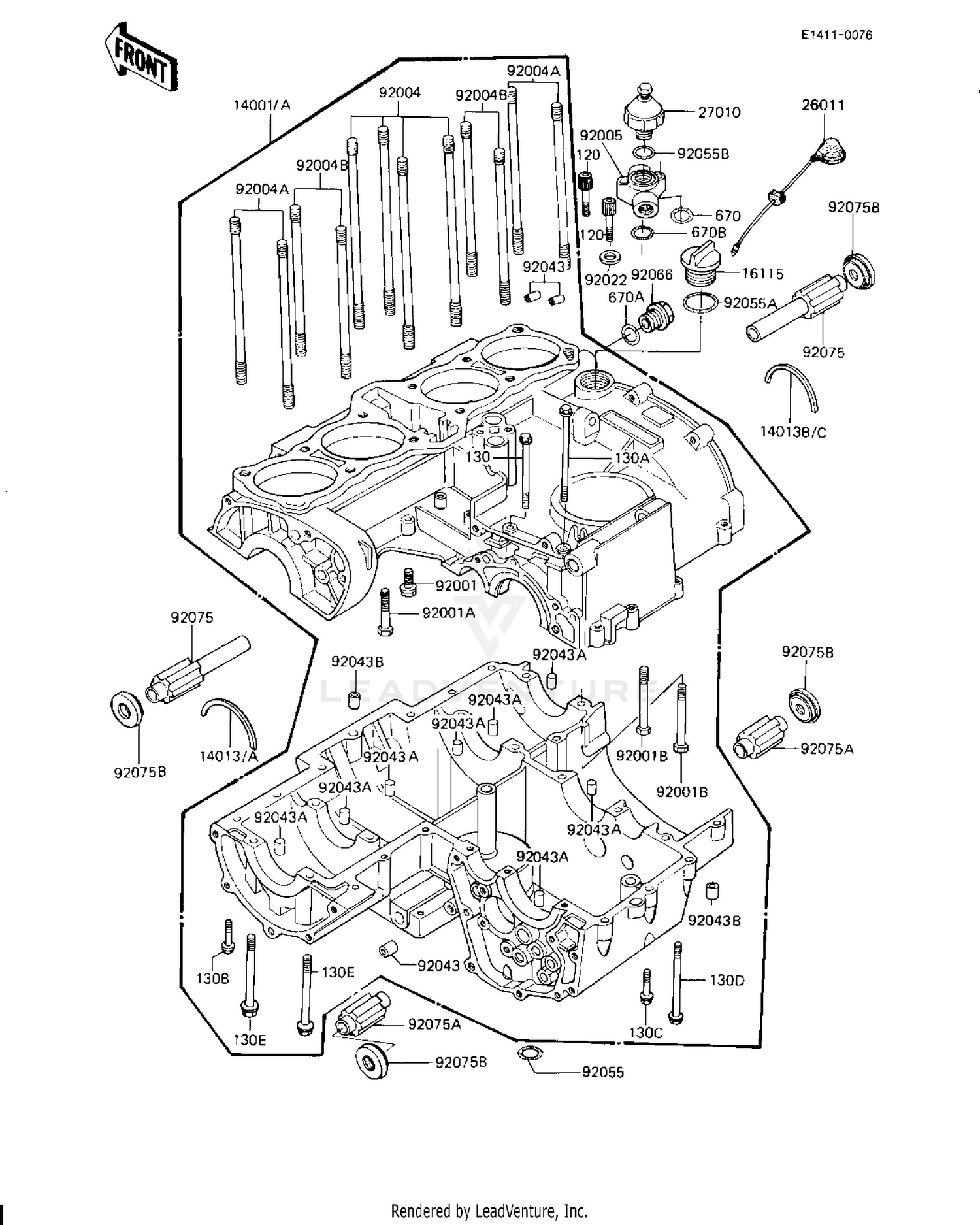

CRANKCASE

CRANKCASE

Parts (35)

RefPart NumberDescription
120 120CA0835 BOLT-SOCKET,8X35 This part replaces 120P0835. Price: $2.80
130 92002-1141 BOLT,6X100 This part replaces 130G06100. Price: $5.03
130A 130G06115 BOLT-FLANGED,6X115 Price: $3.84
130B 130BA0640 BOLT-FLANGED,6X40 This part replaces 130G0640. Price: $1.20
130C 130BA0655 BOLT,FLANGED,6X55 This part replaces 130G0655. Price: $4.99
130D 130BD0695 BOLT-FLANGED This part replaces 130G0695. Price: $5.59
130E 130CA0895 BOLT-FLANGED,8X95 This part replaces 130P0895. Price: $11.40
670 670B1509 O RING,9MM Price: $3.65
670A 670B2015 O RING,15MM Price: $1.42
14001A 14001-5096 SET-CRANKCASE,F.BLACK Price: $986.12
14013 14013-013 RING-BEARING SET Price: $12.39
14013A 14013-1004 RING-POSITION,T=1.98 Price: $4.96
14013B 14013-1005 RING-POSITION,T=1.98 Price: $4.96
14013C 14013-1006 RING-POSITION Price: $6.09
16115 16115-1062 CAP-OIL FILLER This part replaces 16115-013. Price: $19.96
26011 26011-1129 WIRE-LEAD,OIL SWITCH Price: $23.50
27010 27010-1013 SWITCH,OIL PRESSURE Price: $39.96
92001 92001-1349 BOLT,FLANGED,8X16 Price: $5.72
92001A 92003-107 BOLT,HEX HEAD,8X72 Price: $16.50
92001B 92002-1649 BOLT,8X80 This part replaces 92003-108. Price: $6.69
92004 92004-1002 STUD,10X167 Price: $15.20
92004A 92004-1040 STUD,10X158 This part replaces 92004-1003. Price: $15.20
92004B 92004-1231 STUD This part replaces 92004-1004. Price: $15.96
92005 92005-1030 FITTING,OIL PRESSURE Price: $68.90
92022 92022-1086 WASHER,8.2X16X1 Price: $3.92
92043 92042-007 PIN,DOWEL,6.3X8X14 Price: $5.70
92043A 92043-1690 PIN,6X16 This part replaces 92042-016. Price: $5.00
92043B 92043-1037 PIN,DOWEL,10X14 Price: $0.74
92055 92055-048 O RING,0.D=18MM Price: $4.80
92055A 92055-049 RING-O,31.5X2.6 Price: $4.31
92055B 92055-055 RING-O,19.5X1.5 Price: $4.31
92066 92066-021 PLUG Price: $22.10
92075 92075-1272 DAMPER Price: $44.98
92075A 92075-1273 DAMPER Price: $28.97
92075B 92075-1274 DAMPER,ENGINE MOUNT,SIDE Price: $17.60
