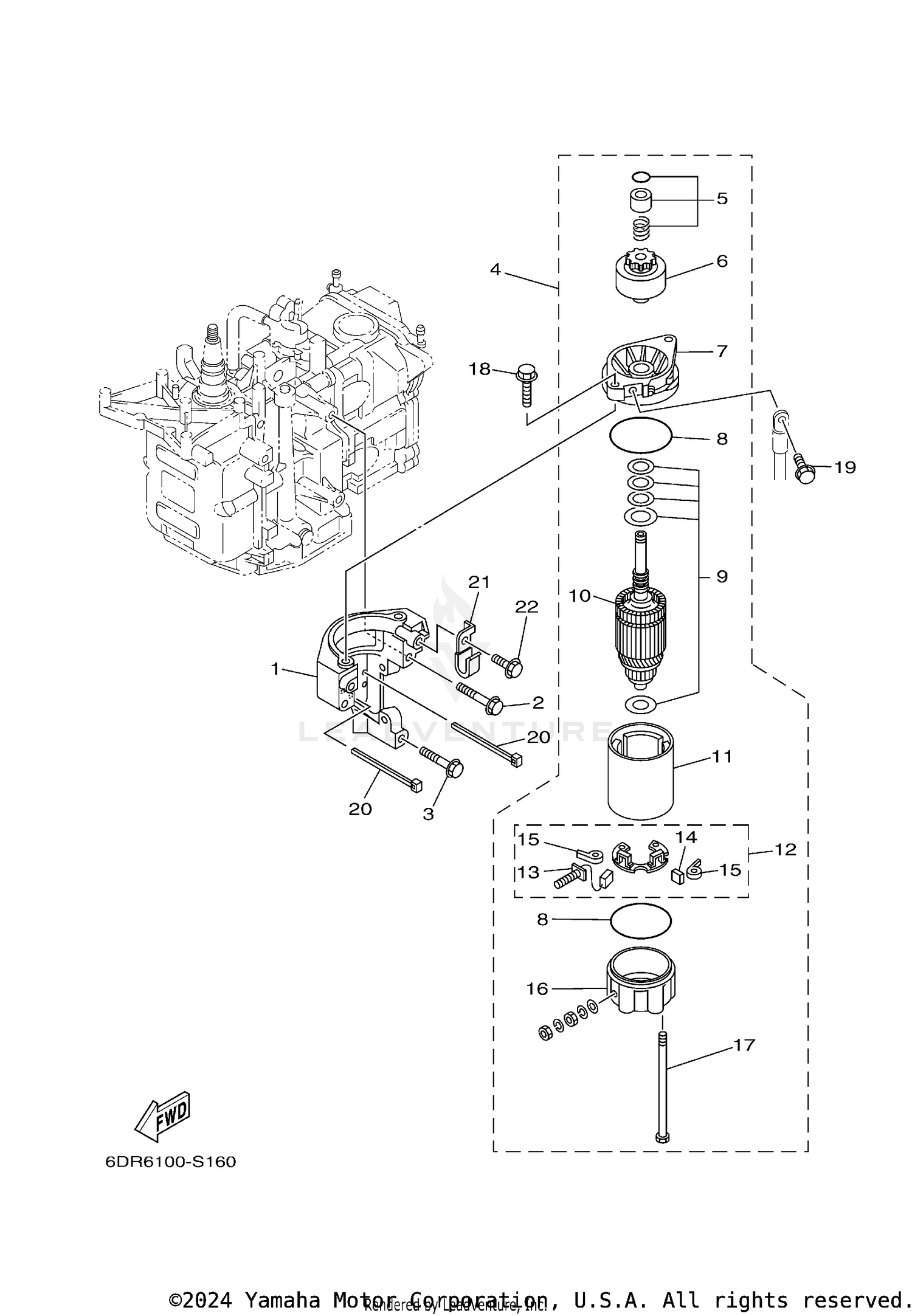

STARTING MOTOR
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 68T-81822-01-00 | BRACKET, STARTING MOTOR Price: $56.85 |
| 2 | 90119-08046-00 | BOLT, WITH WASHER Price: $6.25 |
| 3 | 90119-08020-00 | BOLT, WITH WASHER Price: $4.75 |
| 4 | 68T-81800-10-00 | STARTING MOTOR ASSY This part replaces 68T-81800-00-00. Price: $606.85 |
| 5 | 68T-81857-00-00 | PINION STOPPER SET Price: $59.65 |
| 6 | 689-81807-13-00 | GEAR ASSY, STARTING MOTOR This part replaces 689-81807-12-00. Price: $249.05 |
| 7 | 6F5-81830-11-00 | FRONT BRACKET ASSY This part replaces 6F5-81830-10-00. Price: $275.95 |
| 8 | 689-81847-11-00 | O-RING Price: $13.25 |
| 9 | 689-81809-11-00 | WASHER KIT Price: $12.55 |
| 10 | 689-81850-12-00 | ARMATURE ASSY Price: $271.45 |
| 11 | 689-81810-11-00 | STATOR ASSY Price: $244.75 |
| 12 | 689-81840-11-00 | BRUSH HOLDER ASSY Price: $51.50 |
| 13 | 689-81811-11-00 | BRUSH 1 Price: $21.15 |
| 14 | 689-81812-11-00 | BRUSH 2 Price: $15.65 |
| 15 | 689-81813-10-00 | SPRING, BRUSH Price: $14.75 |
| 16 | 689-81820-11-00 | REAR BRACKET ASSEMBLY Price: $72.05 |
| 17 | 689-81826-10-00 | BOLT Price: $8.49 |
| 18 | 90119-08M76-00 | BOLT, WITH WASHER Price: $6.49 |
| 19 | 97E95-08516-00 | BOLT, HEXAGON W/W Price: $1.35 |
| 20 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 21 | 90465-08M99-00 | CLAMP Price: $11.40 |
