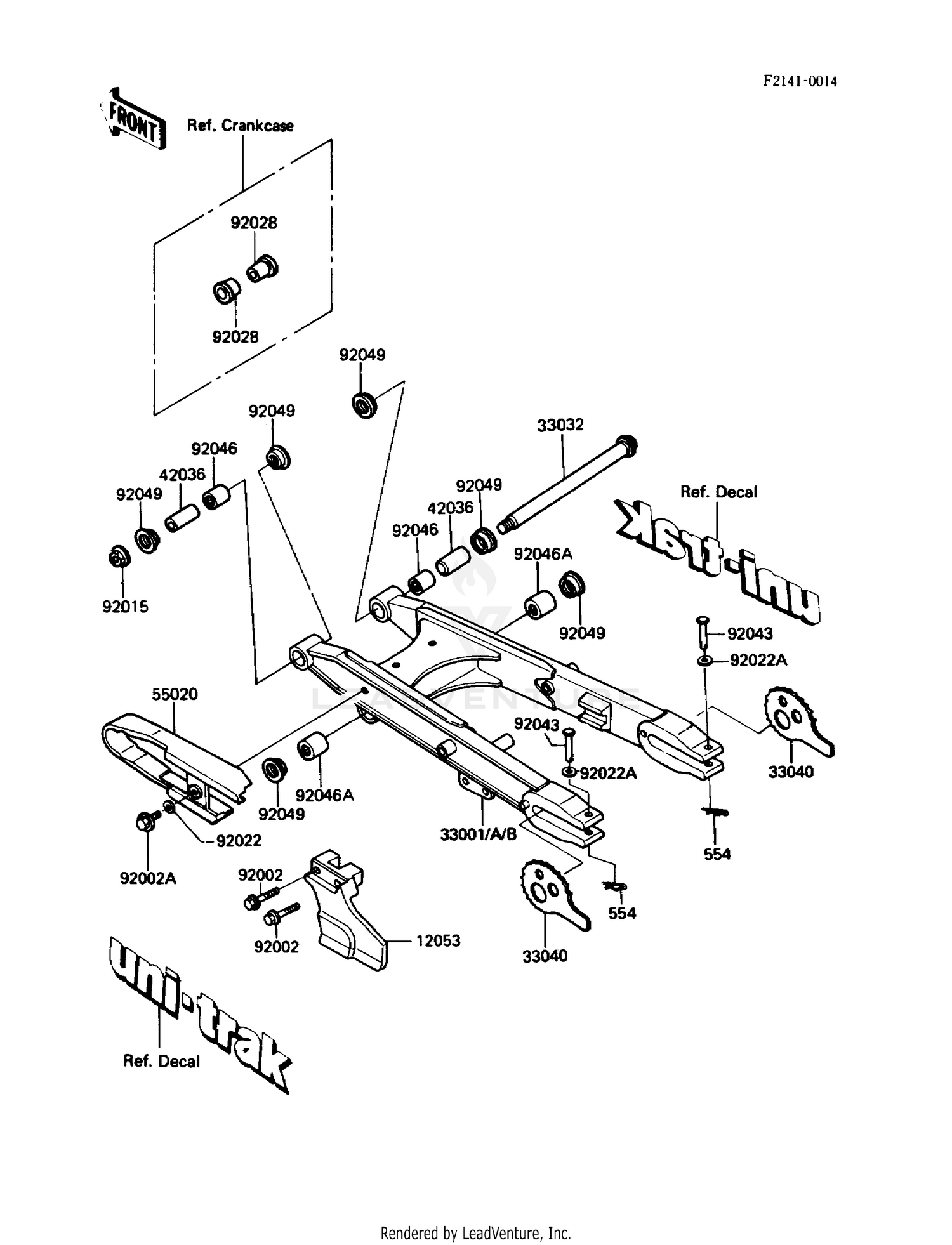

| Ref | Part Number | Description |
|---|
| 12053 |
12053-1104 |
GUIDE-CHAIN,RR Price: $64.38 |
| 33001B |
33001-1253-X3 |
ARM-COMP-SWING,SILVER Price: $492.89 |
| 33032 |
33032-1108 |
SHAFT-SWING ARM Price: $73.40 |
| 33040 |
33040-1060 |
ADJUSTER-CHAIN,LH Price: $30.37 |
| 42036 |
42036-1103 |
SLEEVE,15.1X20X42.5 Price: $21.29 |
| 55020 |
55020-1154 |
GUARD,CHAIN,FR Price: $136.22 |
| 92002 |
130BB0645 |
BOLT-FLANGED,6X45 This part replaces 92002-1088. Price: $4.67 |
| 92002A |
92002-1185 |
BOLT,5X12 Price: $1.71 |
| 92015 |
92015-1459 |
NUT,14MM Price: $9.91 |
| 92022 |
92022-1405 |
WASHER,5.5X20X1.2 This part replaces 92022-104. Price: $4.31 |
| 92022A |
92022-183 |
WASHER,6.2X11X1.5 Price: $3.92 |
| 92028 |
92028-1261 |
BUSHING,SWING ARM Price: $17.39 |
| 92043 |
92043-1110 |
PIN,6X44.5 Price: $5.11 |
| 92046 |
92046-1110 |
BEARING-NEEDLE,BM202726 Price: $23.45 |
| 92046A |
92046-1113 |
BEARING-NEEDLE,BTM202 Price: $24.16 |
| 92049 |
92049-1109 |
SEAL-OIL,ARM Price: $9.28 |
