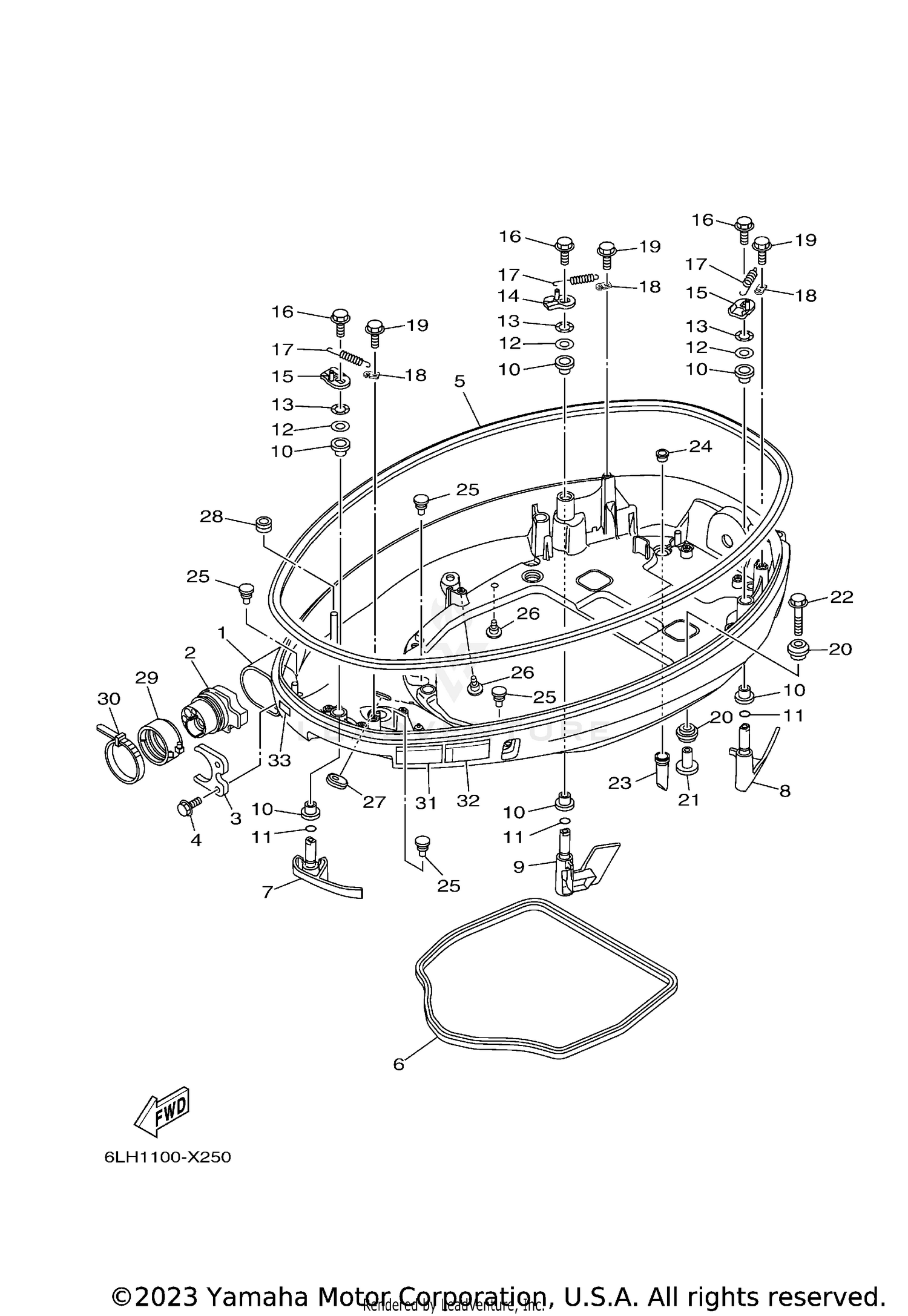

| Ref | Part Number | Description |
|---|
| 1 |
6LH-42710-00-8D |
BOTTOM COWLING ASSY Price: $817.30 |
| 2 |
6LH-42725-00-00 |
GROMMET Price: $31.80 |
| 3 |
6CB-42761-00-00 |
STOPPER Price: $23.55 |
| 4 |
95D95-06014-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 5 |
63P-42615-10-00 |
SEAL Price: $111.40 |
| 6 |
63P-42716-01-00 |
RUBBER SEAL 1 Price: $66.05 |
| 7 |
6LH-42815-00-8D |
LEVER, CLAMP 1 Price: $70.70 |
| 8 |
6LH-42816-00-8D |
LEVER, CLAMP 2 Price: $52.85 |
| 9 |
6LH-42817-00-8D |
LEVER, CLAMP 3 Price: $59.25 |
| 10 |
90386-15M73-00 |
BUSH Price: $8.10 |
| 11 |
93210-13M63-00 |
O-RING Price: $4.75 |
| 12 |
90201-156J2-00 |
WASHER, PLATE Price: $9.49 |
| 13 |
90206-15M18-00 |
WASHER, WAVE Price: $5.95 |
| 14 |
6CB-42818-00-00 |
LEVER, CLAMP 4 Price: $32.10 |
| 15 |
6CB-42819-00-00 |
LEVER, CLAMP 5 Price: $32.10 |
| 16 |
95D95-08012-00 |
BOLT, FLANGE DEEP Price: $1.50 |
| 17 |
90506-22001-00 |
SPRING, TENSION Price: $7.90 |
| 18 |
66T-43144-00-00 |
HOOK, SPRING Price: $6.25 |
| 19 |
95D95-06012-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 20 |
90480-22M81-00 |
GROMMET Price: $4.80 |
| 21 |
90387-08M37-00 |
COLLAR Price: $11.40 |
| 22 |
90119-08187-00 |
BOLT, WITH WASHER Price: $3.49 |
| 23 |
6DA-42717-01-00 |
RUBBER, SEAL 2 Price: $3.55 |
| 24 |
6DA-42384-00-00 |
SEAL, CAP Price: $4.30 |
| 25 |
6H4-42748-01-00 |
GROMMET Price: $1.55 |
| 26 |
6P2-44391-00-00 |
NIPPLE, HOSE Price: $6.75 |
| 27 |
6KA-42727-00-00 |
GROMMET Price: $7.05 |
| 28 |
90480-13163-00 |
GROMMET Price: $7.49 |
| 31 |
6EE-42794-41-00 |
LABEL, WARNING (GENERAL) This part replaces 6EE-42794-40-00. Price: $17.80 |
| 32 |
6EE-42794-51-00 |
LABEL, WARNING (GENERAL) This part replaces 6EE-42794-50-00. Price: $21.55 |
