Home / MARINE / Marine Diesel Engines / D13B-E MH / STARTER MOTOR/STARTER CLUTCH

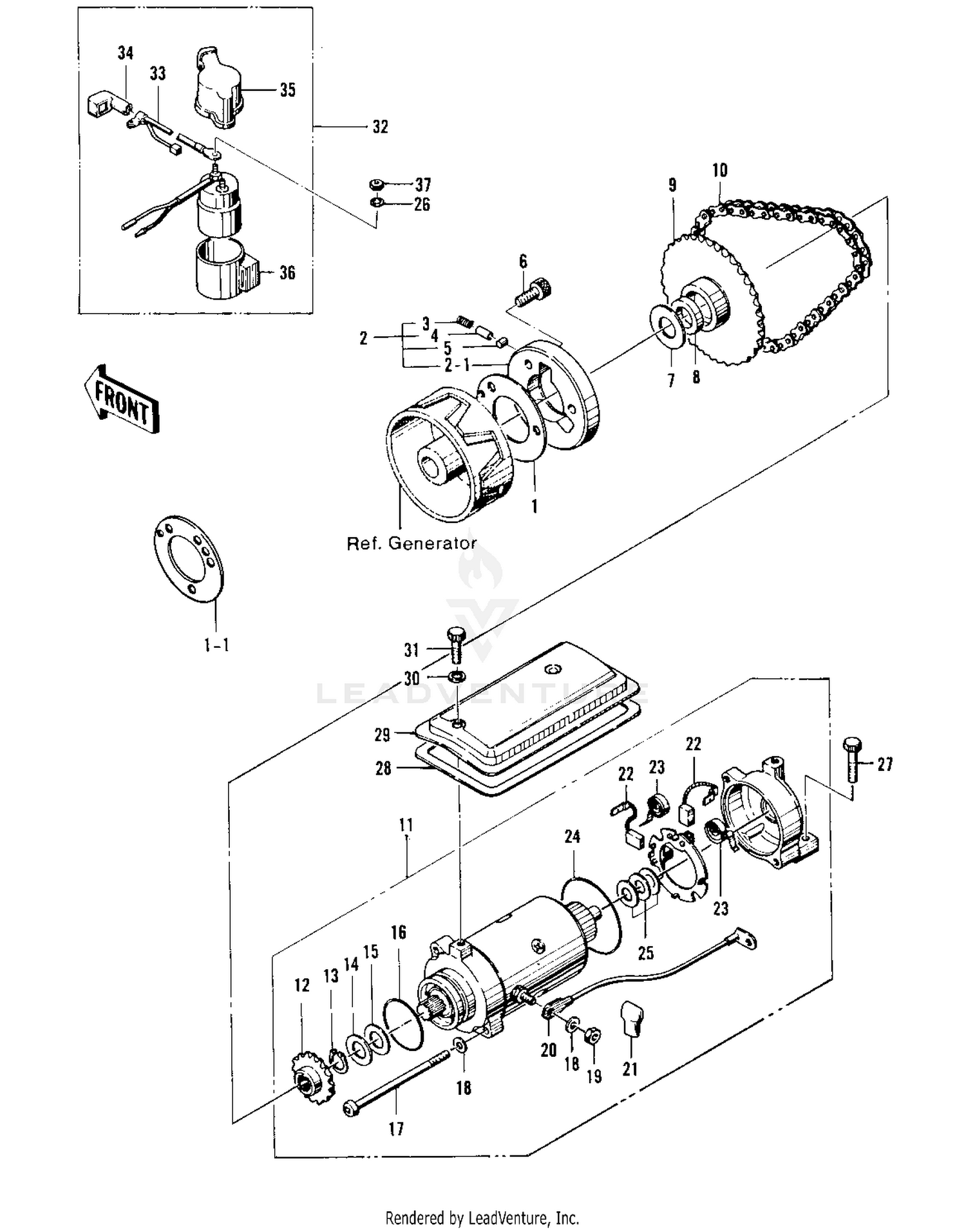

STARTER MOTOR/STARTER CLUTCH

STARTER MOTOR/STARTER CLUTCH

Parts (34)

RefPart NumberDescription
2 13193-1001 CLUTCH ASSY,STARTER Price: $225.54
3 92081-110 SPRING Price: $4.76
4 92043-087 PIN Price: $12.76
5 92122-004 ROLLER Price: $11.07
6 120CA0816 BOLT-SOCKET,8X16 This part replaces 120P0816. Price: $4.45
7 92026-100 WASHER,THRUST Price: $9.55
8 92050-066 OIL SEAL Price: $10.20
9 21170-001 GEAR STARTER CLUTCH Price: $83.27
10 92057-1009 CHAIN,DYNAMO Price: $49.50
11 21163-1236 STARTER-ELECTRIC This part replaces 21163-1011. Price: $765.00
12 21053-002 SPROCKET STARTNG MOT Price: $43.29
13 480J1400 CIRCLIP-TYPE-C,14MM Price: $5.00
14 21025-008 WASHER,PLAIN,14MM Price: $4.83
15 21025-009 WASHER PLAIN 14MM Price: $4.83
16 92055-1313 RING-O This part replaces 21027-005. Price: $8.66
17 220B06110 SCREW PAN HEAD 6X110 Price: $3.83
18 461DA0600 WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71
19 312AA0600 NUT-HEX This part replaces 312B0600. Price: $0.73
20 26010-035 WIRE STRTER MOT LEAD Price: $45.78
21 21017-020 CAP,STARTING MOTOR Price: $8.42
22 21039-004 BRUSH CARBON Price: $41.68
23 21040-004 SPRING CARBON BRUSH Price: $11.44
25 21025-007 WASHER,PLAIN,9MM Price: $3.60
26 461DA0600 WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71
27 112BA0625 BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72
28 21166-002 GASKET START MOT COV Price: $20.17
29 21165-002 COVER STARTER MOTOR Price: $16.38
30 410S0600 WASHER-PLAIN-SMALL,6MM This part replaces 410D0600. Price: $0.78
31 132E0612 BOLT-FLANGED-SMALL,6X12 Price: $4.83
32 21164-006 SWITCH ASSY,MAGNETIC Price: $109.68
33 26011-1027 WIRE,LEAD,MAG SWITCH Price: $30.57
34 21017-021 CAP,MAG SWTCH TERMNL Price: $13.09
35 21141-004 COVER MAGNETIC SWITCH Price: $12.80
36 92161-1722 DAMPER,MAGNETIC SWITCH This part replaces 21064-002. Price: $19.64
