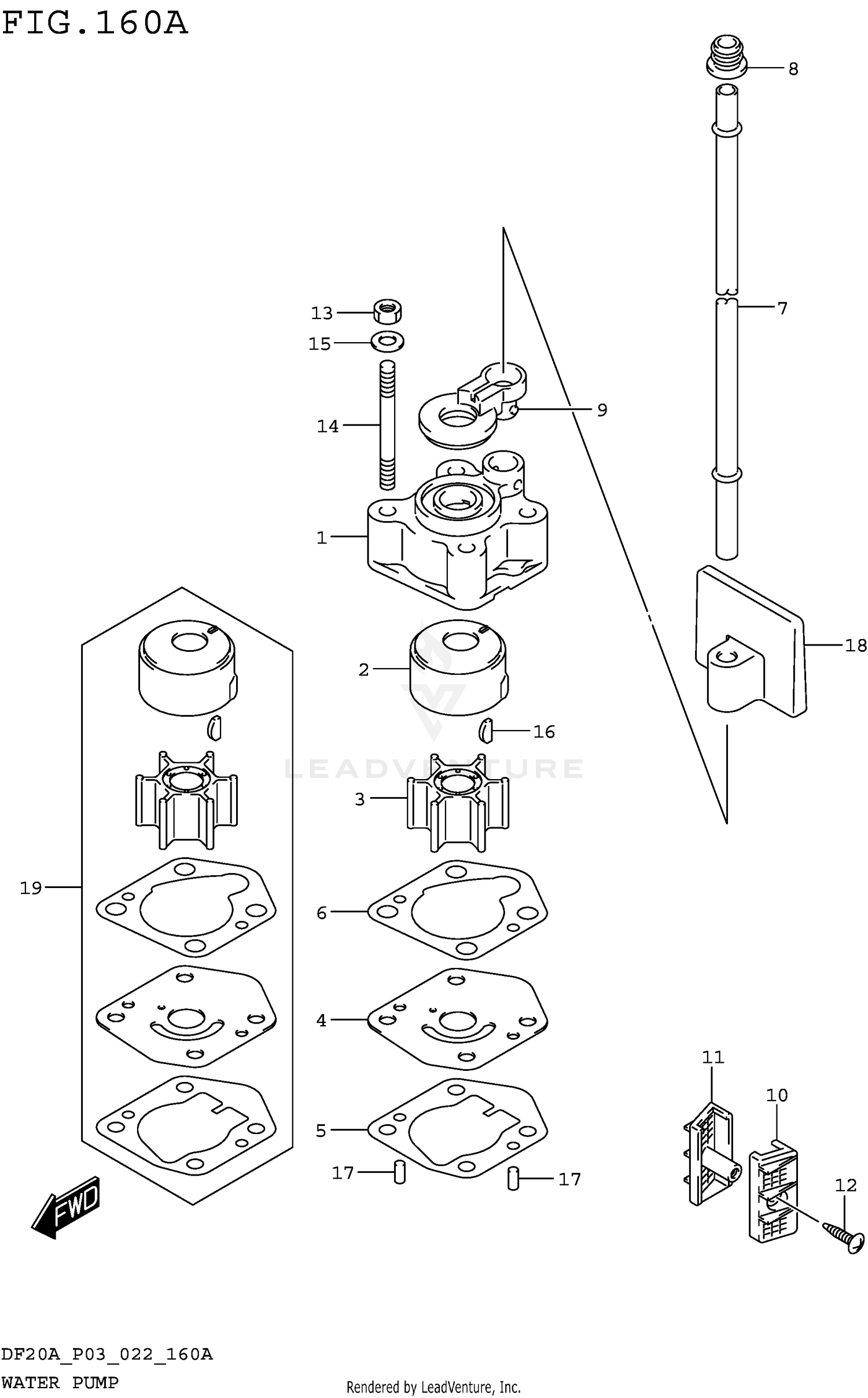

WATER PUMP
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 17411-94J00 | CASE WATER PUMP Price: Call Us |
| 2 | 17413-94J00 | SLEEVE WATER PUMP CASE Price: Call Us |
| 3 | 17461-939M0 | IMPELLER WATER PUMP Price: Call Us |
| 5 | 17472-99J00 | GASKET PUMP CASE PANEL Price: Call Us |
| 6 | 17473-94J00 | GASKET WATER PUMP CASE Price: Call Us |
| 8 | 17563-94J00 | GROMMET WATER TUBE Price: Call Us |
| 9 | 17564-99J00 | BUSH WATER PUMP CASE Price: Call Us |
| 12 | 03211-0520A | SCREW This part replaces 03142-04169. Price: Call Us |
| 13 | 29141-93J00 | NUT (M6) Price: Call Us |
| 14 | 09108-06141 | STUD BOLT Price: Call Us |
| 15 | 09160-06082 | WASHER (6.5X13X1.0) Price: Call Us |
| 16 | 09420-03009 | KEY Price: Call Us |
| 17 | 09202-04008 | PIN (D:40L:9) Price: Call Us |
| 18 | 17565-99J01 | GUIDE WATER TUBE Price: Call Us |
