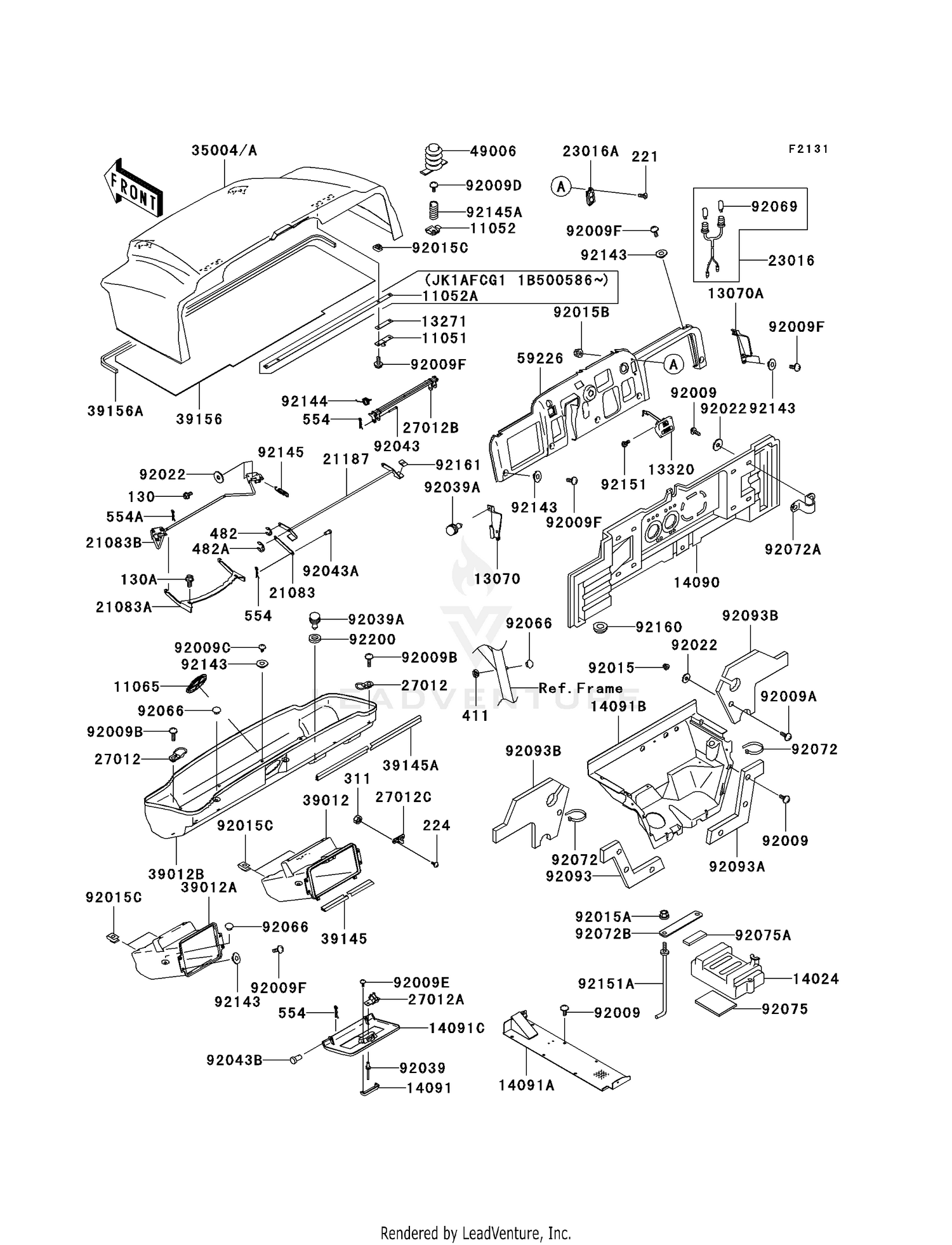

| Ref | Part Number | Description |
| 130 |
130BB0612 |
BOLT-FLANGED,6X12 This part replaces 130J0612. Price: $2.34 |
| 130A |
130BB0816 |
BOLT-FLANGED,8X16 This part replaces 130J0816. Price: $1.71 |
| 221 |
221AB0616 |
SCREW-CSK-CROS This part replaces 221C0616. Price: $4.67 |
| 224 |
224AB0412 |
SCREW-PAN-WP-CROS,4X12 This part replaces 224C0412. Price: $0.49 |
| 311 |
311AB0400 |
NUT-HEX,4MM This part replaces 311C0400. Price: $0.62 |
| 411 |
411AB1000 |
WASHER-PLAIN,10MM,BLACK This part replaces 411F1000. Price: $4.10 |
| 482 |
482EA5000 |
CIRCLIP-TYPE-E This part replaces 482L5000. Price: $1.34 |
| 482A |
482EA7000 |
CIRCLIP-TYPE-E This part replaces 482L7000. Price: $3.92 |
| 554 |
554DA0600 |
PIN-SNAP,1.2X21.2 This part replaces 554A0600. Price: $0.95 |
| 554A |
554DA0800 |
PIN-SNAP This part replaces 554A0800. Price: $1.36 |
| 11051 |
11051-1756 |
BRACKET Price: $6.31 |
| 11052 |
11052-1258 |
BRACKET Price: $8.26 |
| 11065 |
11065-1053-6Z |
CAP,F.BLACK Price: $8.40 |
| 13070 |
13070-1367 |
GUIDE,LH Price: $28.39 |
| 13070A |
13070-1368 |
GUIDE,RH Price: $28.39 |
| 13271 |
13271-1663 |
PLATE Price: $10.35 |
| 13320 |
13320-1016 |
LEVER-ASSY Price: $118.91 |
| 14024 |
14024-1792 |
COVER,BATTERY Price: $50.39 |
| 14090 |
14090-1247 |
UNDER COVER,SEAT Price: $153.82 |
| 14091 |
14091-1659-AZ |
COVER,STORAGE GRIP,GR This part replaces 14091-1228-AZ. Price: $8.54 |
| 14091A |
14091-0118 |
COVER,FLOOR,CNT This part replaces 14091-1250. Price: $110.20 |
| 14091B |
14091-1378 |
COVER,FLOOR Price: $98.40 |
| 14091C |
14091-1660-AZ |
COVER,CONTROL PANEL,G This part replaces 14091-1399-AZ. Price: $147.22 |
| 21083 |
21083-1146 |
ARM Price: $2.63 |
| 21083A |
21083-1163 |
ARM Price: $43.54 |
| 21083B |
21083-1172 |
ARM This part replaces 21083-1164. Price: $122.25 |
| 21187 |
21187-1085 |
ARM-ASSY Price: $42.43 |
| 23016 |
23016-1188 |
LAMP-ASSY,INDICATOR Price: $51.85 |
| 23016A |
23016-1189 |
LAMP-ASSY Price: $51.27 |
| 27012 |
27012-1577 |
HOOK Price: $14.45 |
| 27012A |
27012-1607 |
HOOK Price: $7.75 |
| 27012B |
27012-1608 |
HOOK Price: $72.78 |
| 27012C |
27012-1612 |
HOOK Price: $3.92 |
| 35004 |
35004-0007-6A |
FENDER-FRONT,H.GREEN This part replaces 35004-1435-6A. Price: $128.94 |
| 35004A |
35004-0007-6L |
FENDER-FRONT,F.RED This part replaces 35004-1435-6L. Price: $135.08 |
| 39012 |
39012-1061-AZ |
CASE-STORAGE,RH,GRAY Price: $42.21 |
| 39012A |
39012-1062-AZ |
CASE-STORAGE,LH,GRAY Price: $43.74 |
| 39012B |
39012-1066 |
CASE-STORAGE,CNT Price: $89.59 |
| 39145 |
39145-1130 |
TRIM-SEAL,L=774 Price: $22.86 |
| 39145A |
39145-1132 |
TRIM-SEAL,L=2805 Price: $61.40 |
| 39156 |
39156-1684 |
PAD Price: $129.53 |
| 39156A |
39156-1685 |
PAD Price: $18.63 |
| 49006 |
49006-1347 |
BOOT Price: $11.85 |
| 59226 |
59226-1060-AZ |
PANEL-CONTROL,GRAY Price: $144.44 |
| 92009 |
92009-1166 |
SCREW,TAPPING,6X16 Price: $5.52 |
| 92009A |
92172-0002 |
SCREW,6X18 This part replaces 92009-1181. Price: $2.80 |
| 92009B |
92009-1256 |
SCREW,6X22,BLACK Price: $2.78 |
| 92009C |
92172-0003 |
SCREW,TAPPING,6X12 This part replaces 92009-1261. Price: $2.80 |
| 92009D |
92009-1662 |
SCREW,6X14 This part replaces 92009-1288. Price: $3.92 |
| 92009E |
92009-1444 |
SCREW,TAPPING,4X12 Price: $3.21 |
| 92009F |
92009-1694 |
SCREW,6X16 This part replaces 92009-1621. Price: $3.92 |
| 92015 |
92015-1233 |
NUT,FLANGED,6MM,BLACK This part replaces 92015-1386. Price: $5.52 |
| 92015A |
92015-1406 |
NUT,FLANGED,8MM Price: $4.45 |
| 92015B |
92015-1603 |
NUT,LOCK,FLANGED,6MM Price: $4.69 |
| 92015C |
92015-1678 |
NUT,CLAMP,6MM Price: $5.52 |
| 92022 |
92022-1346 |
WASHER,6.5X20X1.6,BLACK Price: $0.49 |
| 92039 |
92039-1041 |
RIVET Price: $3.65 |
| 92039A |
92039-0776 |
RIVET This part replaces 92039-1229. Price: $1.19 |
| 92043 |
92043-1625 |
PIN,6X39 Price: $2.48 |
| 92043A |
92043-1626 |
PIN,6X9 Price: $2.26 |
| 92043B |
92043-125 |
PIN,6X14.5 This part replaces 92043-1627. Price: $6.57 |
| 92066 |
92066-1485 |
PLUG Price: $2.44 |
| 92069 |
92069-1020 |
BULB,12V3W T-7 Price: $6.52 |
| 92072 |
92072-1197 |
BAND,L=365 Price: $7.84 |
| 92072A |
92072-1252 |
BAND Price: $11.91 |
| 92072B |
92072-1399 |
BAND,L=159 Price: $3.68 |
| 92075 |
92075-1076 |
DAMPER Price: $8.86 |
| 92075A |
92075-1214 |
DAMPER Price: $4.39 |
| 92093 |
92093-1293 |
SEAL,FRONT FENDER,LH Price: $9.64 |
| 92093A |
92093-1294 |
SEAL,FRONT FENDER,RH Price: $10.00 |
| 92093B |
92093-1295 |
SEAL,LOWER COVER Price: $22.57 |
| 92143 |
92143-1087 |
COLLAR Price: $4.31 |
| 92144 |
92144-1174 |
SPRING,SEAT HOOK Price: $6.82 |
| 92145 |
92145-1335 |
SPRING Price: $6.34 |
| 92145A |
92145-1402 |
SPRING Price: $4.55 |
| 92151 |
92151-1305 |
BOLT,FLANGED,5X12 Price: $1.59 |
| 92151A |
92151-1897 |
BOLT,BATTERY Price: $6.69 |
| 92160 |
92160-1148 |
DAMPER Price: $4.58 |
| 92161 |
92161-1197 |
DAMPER Price: $5.15 |
