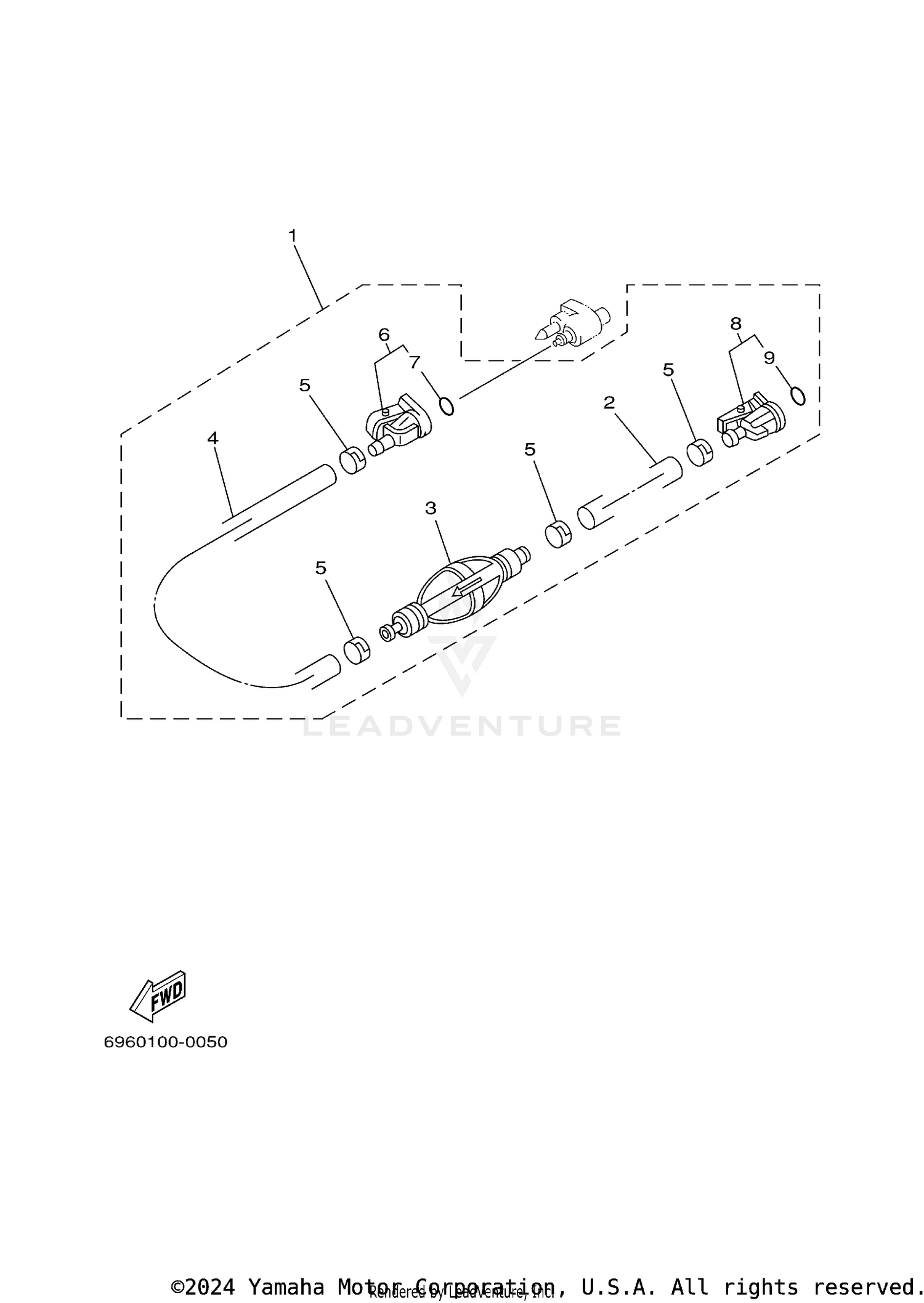

| Ref | Part Number | Description |
|---|
| 2 |
90445-11M81-00 |
HOSE (L3000) This part replaces 90445-11M06-00. Price: $40.50 |
| 3 |
6YL-24360-63-00 |
PRIMER PUMP ASSY This part replaces 6Y1-24360-52-00. Price: $44.45 |
| 4 |
90445-11M78-00 |
HOSE This part replaces 90445-11M05-00. Price: $8.90 |
| 5 |
650-24351-51-00 |
BAND 1 Price: $2.70 |
| 6 |
6G1-24305-05-00 |
FUEL PIPE JOINT COMP This part replaces 6G1-24305-03-00. Price: $28.40 |
| 7 |
93210-08287-00 |
O-RING Price: $5.35 |
| 8 |
6Y1-24305-06-00 |
FUEL PIPE JOINT COMP This part replaces 6Y1-24305-04-00. Price: $25.50 |
