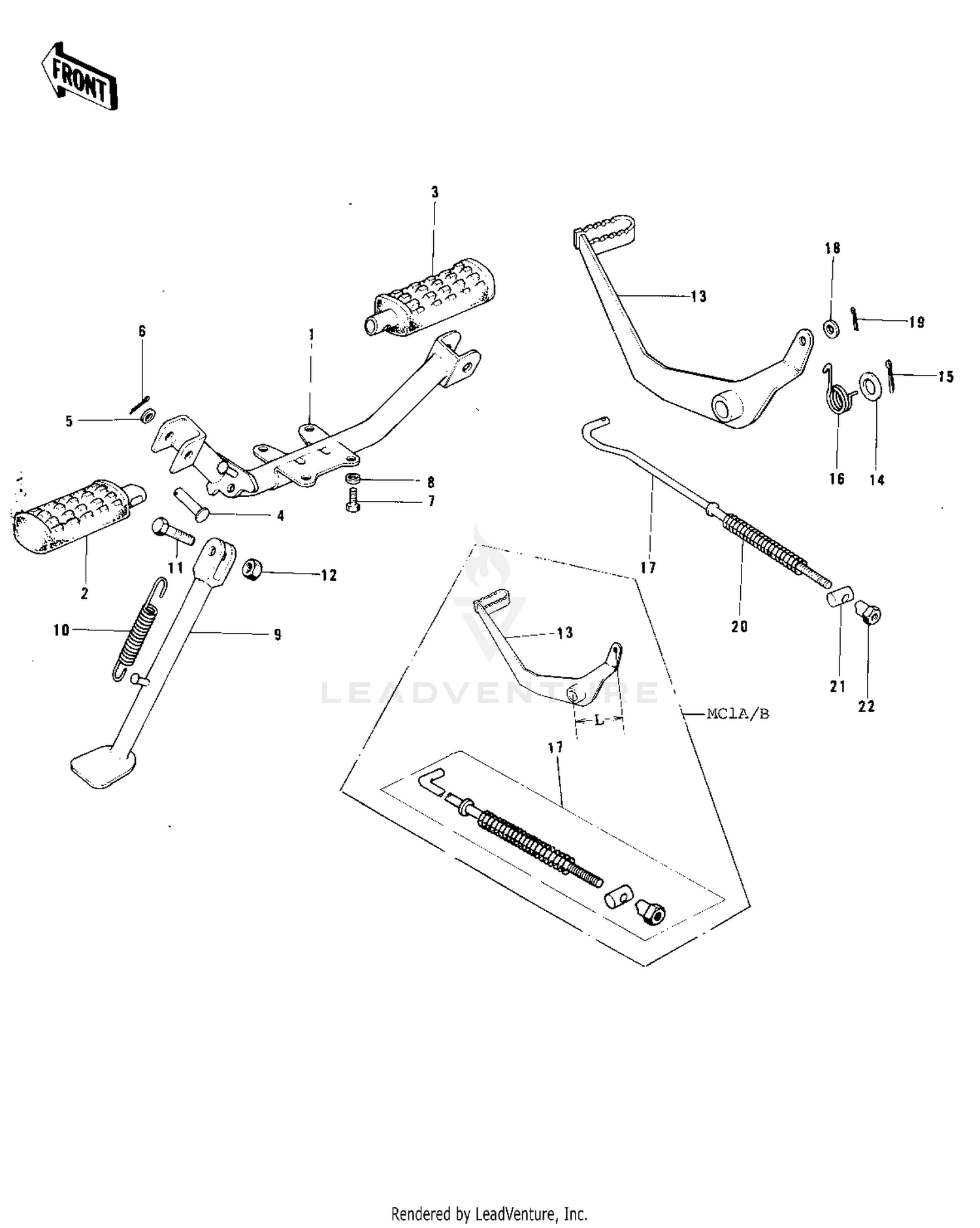

| Ref | Part Number | Description |
|---|
| 1 |
34002-047 |
BAR,FOOTREST Price: $124.45 |
| 2 |
34027-1114 |
STEP-ASSY,FR,LH Price: $35.42 |
| 3 |
34027-1115 |
STEP-ASSY,FR,RH Price: $42.54 |
| 4 |
92043-080 |
PIN,8X31 Price: $5.52 |
| 5 |
92022-204 |
WASHER PL 22.5X36X2.3 Price: $0.90 |
| 6 |
550AA2015 |
PIN-COTTER,2.0X15 This part replaces 550D2015. Price: $1.12 |
| 7 |
115BA0816 |
BOLT-SMALL-UPSET This part replaces 115G0816. Price: $0.70 |
| 8 |
116B0816 |
BOLT HEX HEAD 8X16 Price: $0.25 |
| 9 |
34024-1013 |
STAND-SIDE Price: $60.85 |
| 10 |
34023-005 |
SPRING MAIN STAND Price: $10.92 |
| 11 |
112C1-025 |
BOLT-UPSET This part replaces 113G1025. Price: $3.21 |
| 12 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 13 |
43001-053 |
PEDAL,BRAKE Price: $24.89 |
| 14 |
92022-085 |
WASHER BRAKE PEDAL Price: $3.92 |
| 15 |
550AA3030 |
PIN-COTTER,3.0X30 This part replaces 550D3030. Price: $2.51 |
| 16 |
43005-020 |
SPRING-BRAKE PEDAL Price: $7.89 |
| 17 |
43011-024 |
ROD,BRAKE Price: $10.94 |
| 18 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 19 |
550AA2015 |
PIN-COTTER,2.0X15 This part replaces 550D2015. Price: $1.12 |
| 20 |
43012-001 |
SPRING,BRAKE ROD Price: $4.65 |
| 21 |
92043-0147 |
PIN,BRAKE ROD This part replaces 92043-039. Price: $6.38 |
