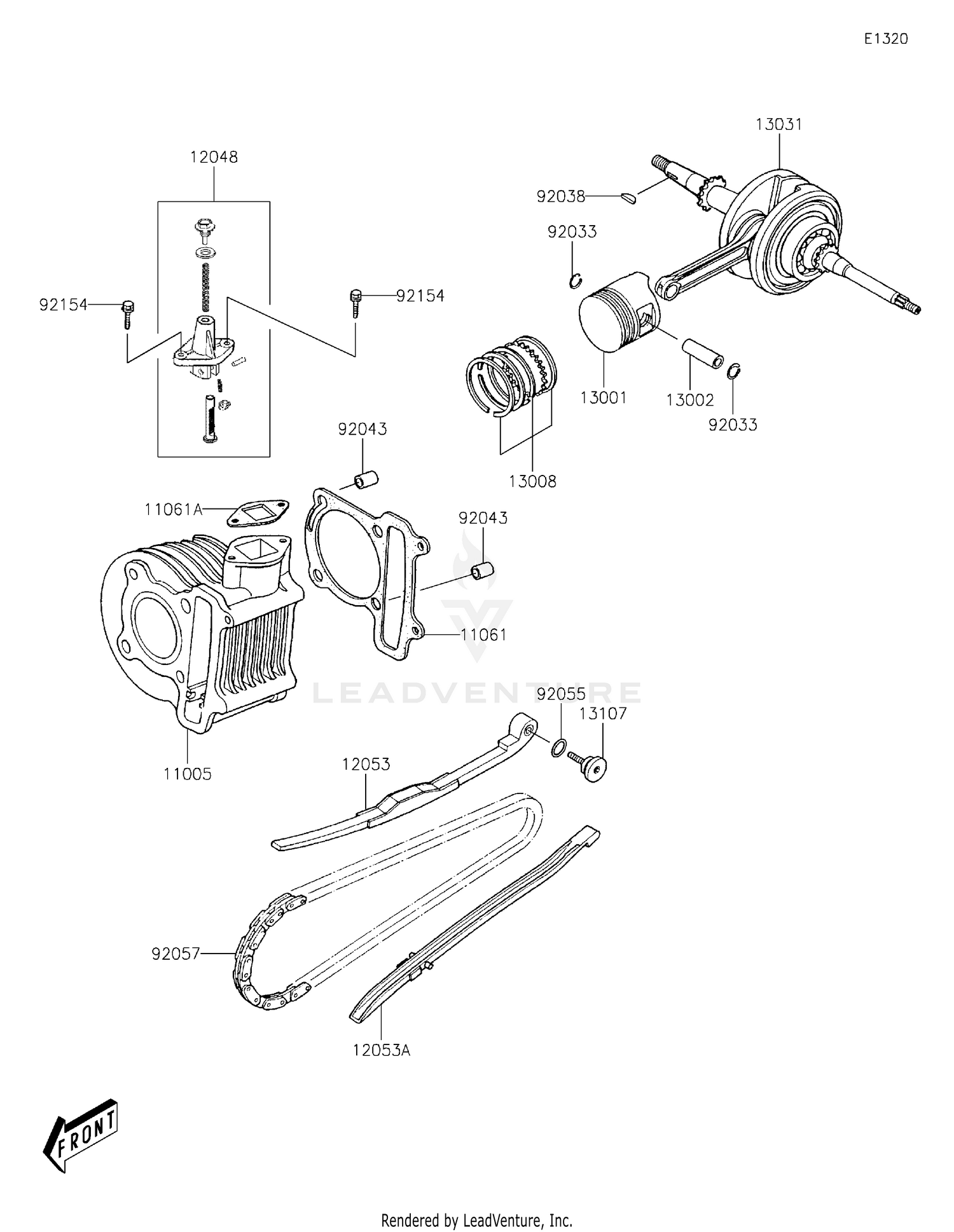

Crankshaft/Piston(s)
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 11005 | 11005-Y001 | CYLINDER-ENGINE Price: $214.49 |
| 11061 | 11061-Y008 | GASKET,CYLINDER BASE Price: $4.58 |
| 11061A | 11061-Y069 | GASKET,CAM CHAIN ADJUSTER Price: $3.13 |
| 12048 | 12048-Y002 | TENSIONER-ASSY Price: $44.80 |
| 12053 | 12053-Y001 | GUIDE-CHAIN,TENSIONER Price: $34.29 |
| 12053A | 12053-Y003 | GUIDE-CHAIN Price: $24.64 |
| 13001 | 13001-Y002 | PISTON-ENGINE Price: $45.44 |
| 13002 | 13002-Y002 | PIN-PISTON Price: $10.89 |
| 13008 | 13008-Y002 | RING-SET-PISTON Price: $39.64 |
| 13031 | 13031-Y002 | CRANKSHAFT-COMP Price: $318.85 |
| 13107 | 13107-Y001 | SHAFT,CHAIN GUIDE Price: $3.12 |
| 92033 | 92033-Y001 | RING-SNAP Price: $1.74 |
| 92038 | 92038-Y001 | KEY,WOODRUFF Price: $2.17 |
| 92043 | 92043-Y006 | PIN,8X14 Price: $1.15 |
| 92055 | 92055-Y003 | RING-O,15.2X1.5 Price: $1.02 |
| 92057 | 92057-Y001 | CHAIN,CAMSHAFT Price: $66.40 |
