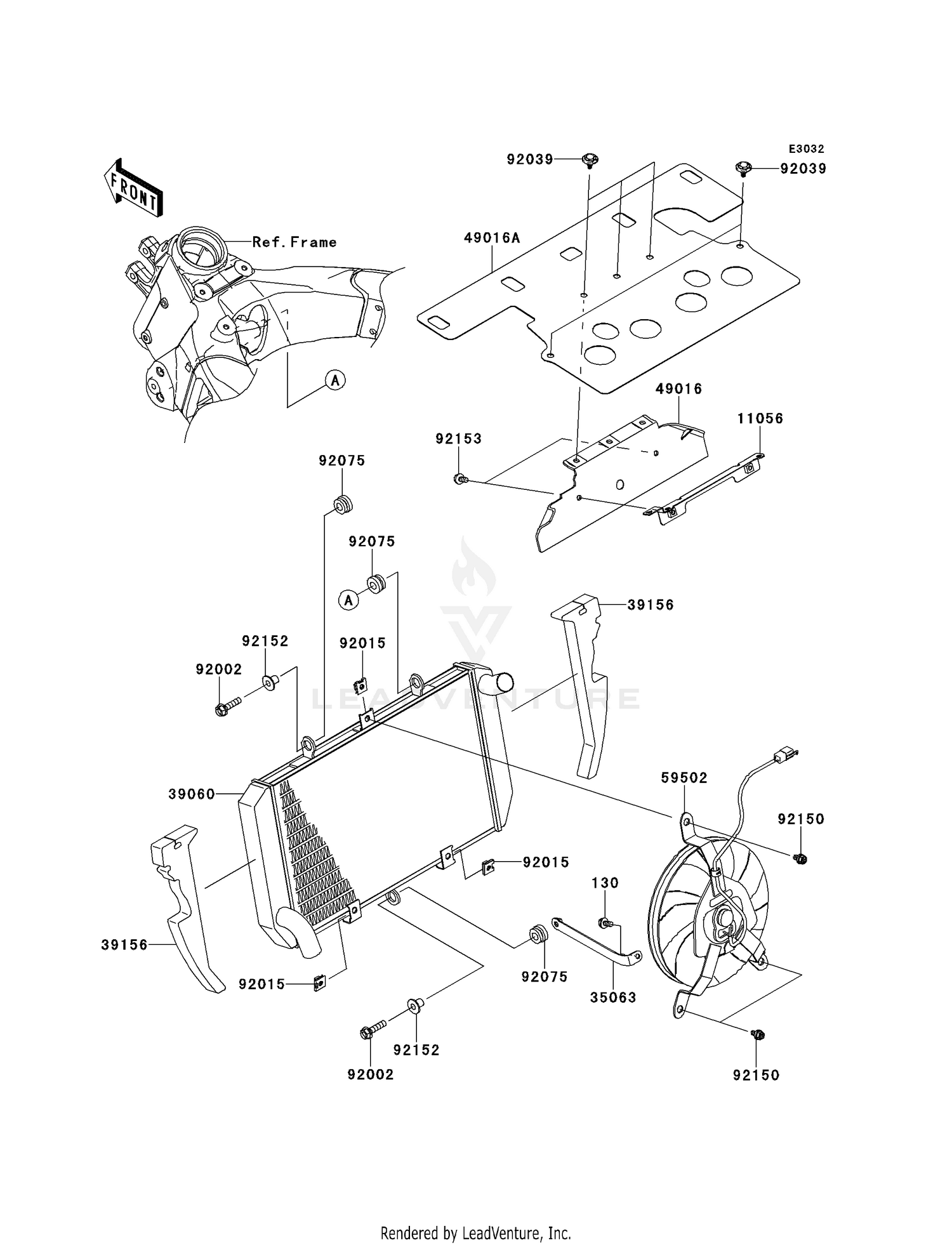

RADIATOR
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130CC0616 | BOLT-FLANGED,6X16 Price: $1.94 |
| 11056 | 11056-0230 | BRACKET Price: $10.60 |
| 35063 | 35063-0761 | STAY Price: $6.77 |
| 39060 | 39060-0081 | RADIATOR Price: $828.85 |
| 39156 | 39156-1775 | PAD This part replaces 39156-0665. Price: $31.80 |
| 49016 | 49016-0082 | COVER-SEAL Price: $12.65 |
| 49016A | 49016-0572 | COVER-SEAL Price: $55.52 |
| 59502 | 59502-0567 | FAN-ASSY Price: $792.87 |
| 92002 | 92002-1086 | BOLT,FLANGED,6X25 Price: $5.52 |
| 92015 | 92015-1487 | NUT Price: $4.80 |
| 92039 | 92039-0014 | RIVET,HOLE 8MM Price: $3.29 |
| 92075 | 92075-1123 | DAMPER,RUBBER Price: $5.00 |
| 92150 | 92150-1186 | BOLT,6X12 Price: $3.37 |
| 92152 | 92152-0667 | COLLAR Price: $7.37 |
