| Ref | Part Number | Description |
|---|
| 10a |
415129349 |
Lens Price: $25.99 |
| 10b |
415129355 |
Speedometer Button Price: $16.49 |
| 10c |
415129370 |
Gauge Ring Price: $11.49 |
| 20 |
516006224 |
BRP Logo 20MM x 2MM Price: $14.49 |
| 132 |
132BA0610 |
BOLT-FLANGED-SMALL,6X10 Price: $1.71 |
| 600 |
515178840 |
Terminal Dess One-Wire This part replaces 515178225. Price: $83.49 |
| 610 |
278002963 |
Safety Nut (DESS Switch) Price: $3.39 |
| 620 |
515178286 |
Grey, RF Key Ass'y Price: $69.99 |
| 800 |
515177837 |
Visor Harness Price: $34.99 |
| 810 |
572103300 |
Cap Price: $10.99 |
| 960 |
515177134 |
Connector Plate Price: $17.99 |
| 1400 |
710001103 |
Voltage Regulator Price: $139.99 |
| 1410 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 2400 |
515178198 |
LH Housing Price: $289.99 |
| 2410 |
515177147 |
Housing Plate Price: $20.99 |
| 2420 |
250000671 |
Torx Screw Price: $1.09 |
| 2480 |
219704418 |
PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership Price: $11.49 |
| 3001 |
219704354 |
Trim 1000Mm Long Price: $15.99 |
| 3027 |
518325560 |
Adhesive Patch Price: $4.69 |
| 3110 |
515177460 |
Switch Ass'y Price: $47.99 |
| 3115 |
207132044 |
Hex Screw M3 X 20 Price: $2.19 |
| 3118 |
234032600 |
Flat Washer M3, Stainless Price: $0.57 |
| 3119 |
232531423 |
Elastic Stop Nut M3 Price: $0.57 |
| 3120 |
210262040 |
Hex. Flange Screw M6 X 20 Price: $2.19 |
| 3122 |
210262040 |
Hex. Flange Screw M6 X 20 Price: $2.19 |
| 3125 |
250200039 |
Flat Washer Price: $0.76 |
| 3201 |
250000690 |
Pan Screw Forming, 7500C Price: $2.19 |
| 3210 |
515175662 |
Male Terminal Housing, 6 Circuits Price: $8.99 |
| 3220 |
515175846 |
Male Terminal Housing, 4 Circuits Price: $8.99 |
| 3250 |
515177394 |
Switch Price: $78.99 |
| 3300 |
515177646 |
Fan Harness Price: $55.99 |
| 3600 |
515177014 |
Ground Wire Price: $18.49 |
| 4200 |
515177427 |
Battery Wire Price: $31.99 |
| 4210 |
232561414 |
Elastic Stop Nut M6 Price: $0.57 |
| 4220 |
234061410 |
Flat Washer 6 mm Price: $1.39 |
| 4240 |
232561414 |
Elastic Stop Nut M6 Price: $0.57 |
| 4300 |
515177348 |
Battery Support Price: $32.99 |
| 4310 |
207661644 |
Hex. Flange Screw M6 X 16 Price: $0.76 |
| 4312 |
250200041 |
Lock Washer Serrated M6 Price: $1.19 |
| 4320a |
250000282 |
Battery Bolt Kit Price: $7.49 |
| 4350 |
278003012 |
Starter Relay Price: $43.99 |
| 4360 |
250000725 |
Screw M4 X 16 Price: $3.59 |
| 4370 |
250000793 |
Hex. Flange Screw M6 X 25 Price: $2.19 |
| 4371 |
224061121 |
Flat Washer Price: $0.55 |
| 4700 |
515176358 |
Ground Wire Price: $28.99 |
| 4720 |
250200041 |
Lock Washer Serrated M6 Price: $1.19 |
| 4721 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 4820 |
232561414 |
Elastic Stop Nut M6 Price: $0.57 |

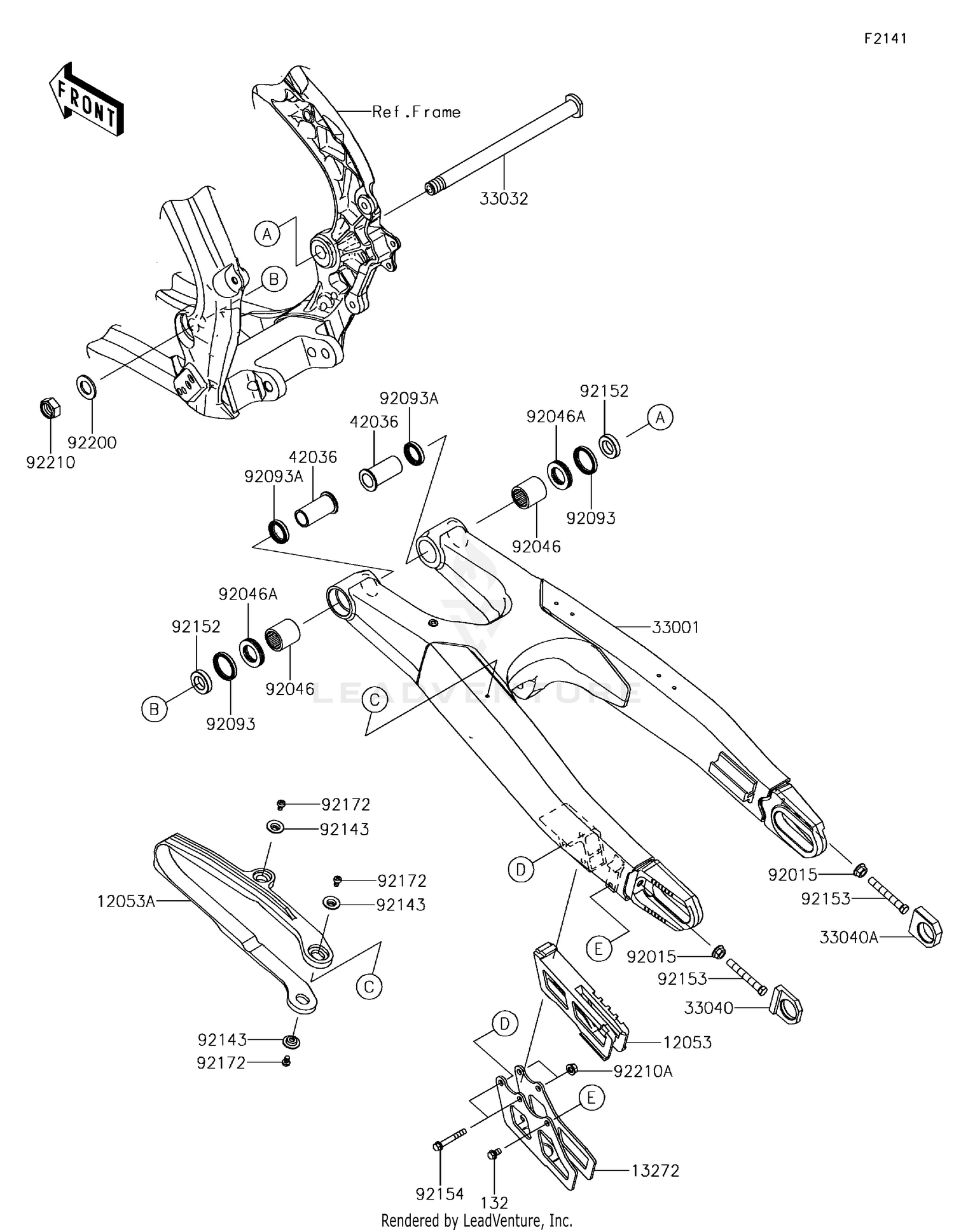

| 12053 |
12053-0125 |
GUIDE-CHAIN Price: $65.67 |
| 12053A |
12053-0223 |
GUIDE-CHAIN Price: $90.27 |
| 13272 |
13272-1169 |
PLATE,CHAIN GUIDE Price: $36.95 |
| 33001 |
33001-0728 |
ARM-COMP-SWING This part replaces 33001-0665. Price: $1,022.11 |
| 33032 |
33032-0012 |
SHAFT-SWING ARM Price: $47.83 |
| 33040 |
33040-0050 |
ADJUSTER-CHAIN,LH Price: $15.21 |
| 33040A |
33040-0080 |
ADJUSTER-CHAIN,RH Price: $15.21 |
| 42036 |
42036-0784 |
SLEEVE,17X22X47.3 Price: $28.42 |
| 92015 |
92015-1014 |
NUT,FLANGED,8MM Price: $0.65 |
| 92046 |
92046-1174 |
BEARING-NEEDLE,TA2230Z Price: $36.90 |
| 92046A |
92046-1240 |
BEARING-NEEDLE,NTBR22356E01 Price: $19.12 |
| 92093 |
92093-1434 |
SEAL,SDO29X35X4.5 Price: $9.11 |
| 92093A |
92093-1435 |
SEAL,SDO22X29X5 Price: $8.79 |
| 92143 |
92143-1676 |
COLLAR Price: $6.22 |
| 92152 |
92152-2222 |
COLLAR,17.1X29X6.7 Price: $12.56 |
| 92153 |
92153-0620 |
BOLT,8X56 Price: $3.73 |
| 92154 |
92154-0511 |
BOLT,FLANGED,6X42 Price: $1.94 |
| 92172 |
92172-0119 |
SCREW,5X8 Price: $2.12 |
| 92200 |
92200-0285 |
WASHER,17.2X30X2.3 Price: $3.90 |
| 92210 |
92210-0285 |
NUT,LOCK,16MM Price: $20.37 |
