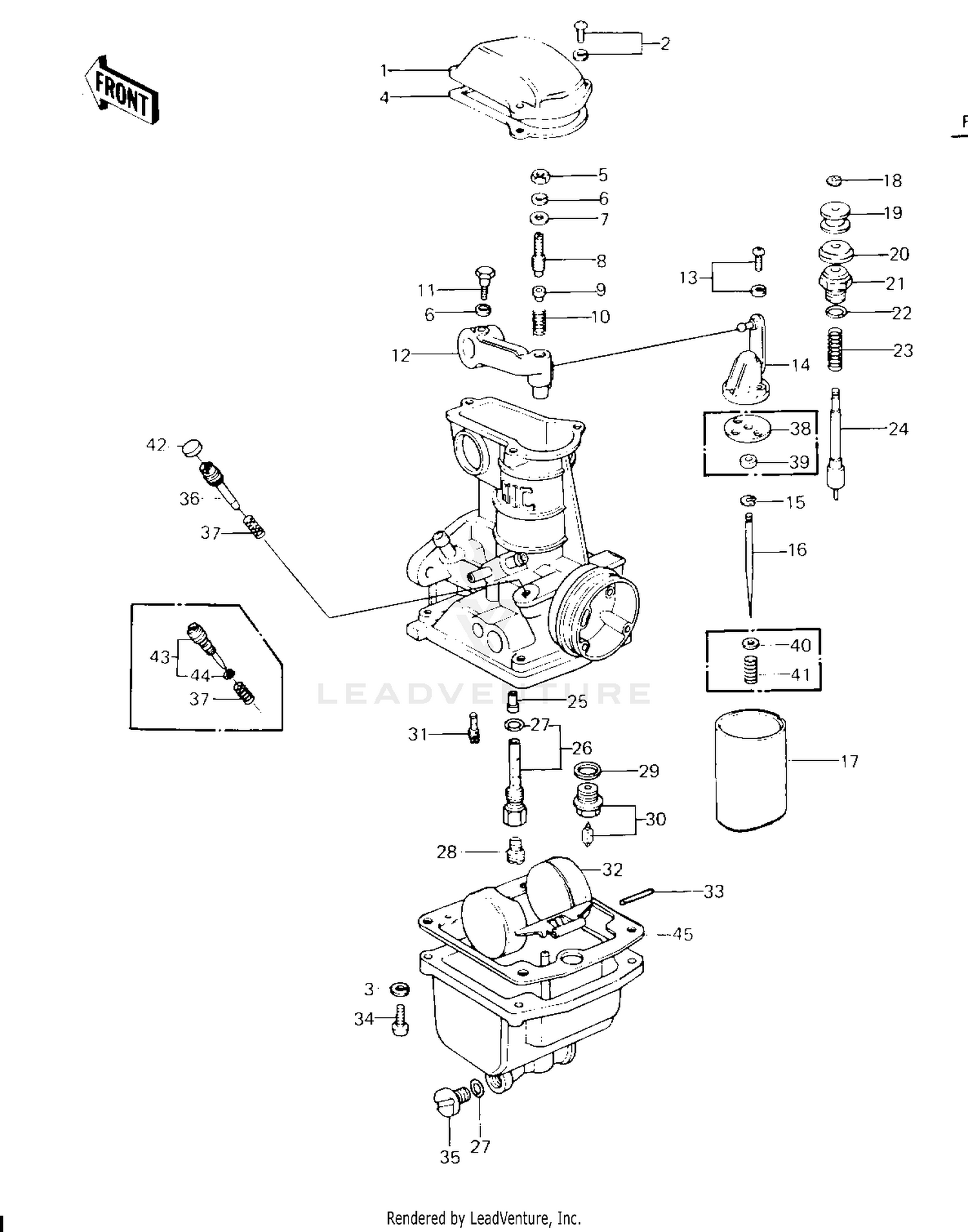

| Ref | Part Number | Description |
|---|
| 1 |
16005-027 |
TOP,MIXING CHAMBER Price: $24.02 |
| 2 |
223AA0414 |
SCREW-PAN-WS-CROS,4X14 This part replaces 223B0414. Price: $1.52 |
| 3 |
461F0400 |
WASHER SPRING 4MM Price: $0.47 |
| 4 |
16019-031 |
GASKET,CHAMBER TOP Price: $43.53 |
| 5 |
16003-013 |
NUT,5MM Price: $9.40 |
| 6 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 7 |
16039-016 |
WASHER,PLAIN Price: $8.03 |
| 8 |
16046-012 |
SCREW,SLOTTED Price: $26.55 |
| 9 |
16057-002 |
SEAT,SPRING Price: $10.53 |
| 10 |
16040-026 |
SPRING Price: $6.62 |
| 11 |
16067-006 |
BOLT,HEX HEAD,5X14 Price: $18.26 |
| 12 |
39075-1001 |
LEVER,THROTTLE Price: $33.42 |
| 13 |
16033-031 |
SCREW,PAN HEAD,3X14 Price: $8.38 |
| 14 |
16007-028 |
BRACKET,THROTTLE VALV Price: $59.43 |
| 14 |
39184-1001 |
BRACKET,THROTTLE VALV Price: $36.63 |
| 15 |
16008-010 |
CIRCLIP Price: $9.21 |
| 16 |
16009-1013 |
JET NEEDLE,5CN15 Price: $51.24 |
| 16 |
16009-1048 |
JET NEEDLE,5CL30 Price: $27.89 |
| 17 |
16025-1006 |
VALVE,THROTTLE Price: $77.29 |
| 17 |
16025-1025 |
VALVE,THROTTLE,CA1.75 Price: $73.65 |
| 18 |
16076-003 |
CIRCLIP Price: $8.92 |
| 19 |
16073-014 |
COLLAR Price: $10.47 |
| 20 |
16039-015 |
CAP,RUBBER,STARTER PLUNGE Price: $6.88 |
| 21 |
16012-015 |
CAP,STARTER PLUNGER Price: $17.25 |
| 22 |
670B1509 |
O RING,9MM Price: $3.65 |
| 23 |
16013-008 |
SPRING,STARTER PLUNGER Price: $6.46 |
| 24 |
16016-021 |
PLUNGER,STARTER Price: $42.89 |
| 25 |
16017-1034 |
NEEDLE JET,AO-5 Price: $71.26 |
| 25 |
16017-1035 |
NEEDLE JET,AO-4 This part replaces 16017-1021. Price: $35.48 |
| 26 |
16047-005 |
PIPE,BLEED Price: $32.62 |
| 26 |
49122-1006 |
PIPE,BLEED Price: $20.88 |
| 28 |
92063-1035 |
MAIN JET,#A97.5R Price: $14.60 |
| 29 |
16029-004 |
GASKET,FLOAT VALVE SEAT Price: $3.89 |
| 30 |
16030-1001 |
FLOAT VALVE ASSY Price: $56.16 |
| 31 |
92064-1018 |
PILOT JET,#A15 Price: $20.51 |
| 32 |
16031-031 |
FLOAT Price: $172.74 |
| 33 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 34 |
220AA0416 |
SCREW-PAN-CROS This part replaces 220B0416. Price: $1.78 |
| 35 |
16049-007 |
SCREW,GUIDE Price: $18.41 |
| 36 |
16014-1020 |
SCREW,PILOT ADJUSTING Price: $18.22 |
| 37 |
16022-007 |
SPRING,PILOT AIR SCREW Price: $8.13 |
| 38 |
13169-1107 |
PLATE,JET NEEDLE Price: $7.05 |
| 39 |
92027-1103 |
RING,JET NEEDLE Price: $7.34 |
| 40 |
92022-1024 |
WASHER,THROTTLE VALVE Price: $6.61 |
| 41 |
92081-1072 |
SPRING,JET NEEDLE Price: $5.54 |
| 42 |
92066-1051 |
PLUG,PILOT AIR SCREW,6.9X2 Price: $5.05 |
| 43 |
16014-1006 |
SCREW,AIR ADJUSTING Price: $38.91 |
| 44 |
16038-022 |
O RING Price: $6.89 |
