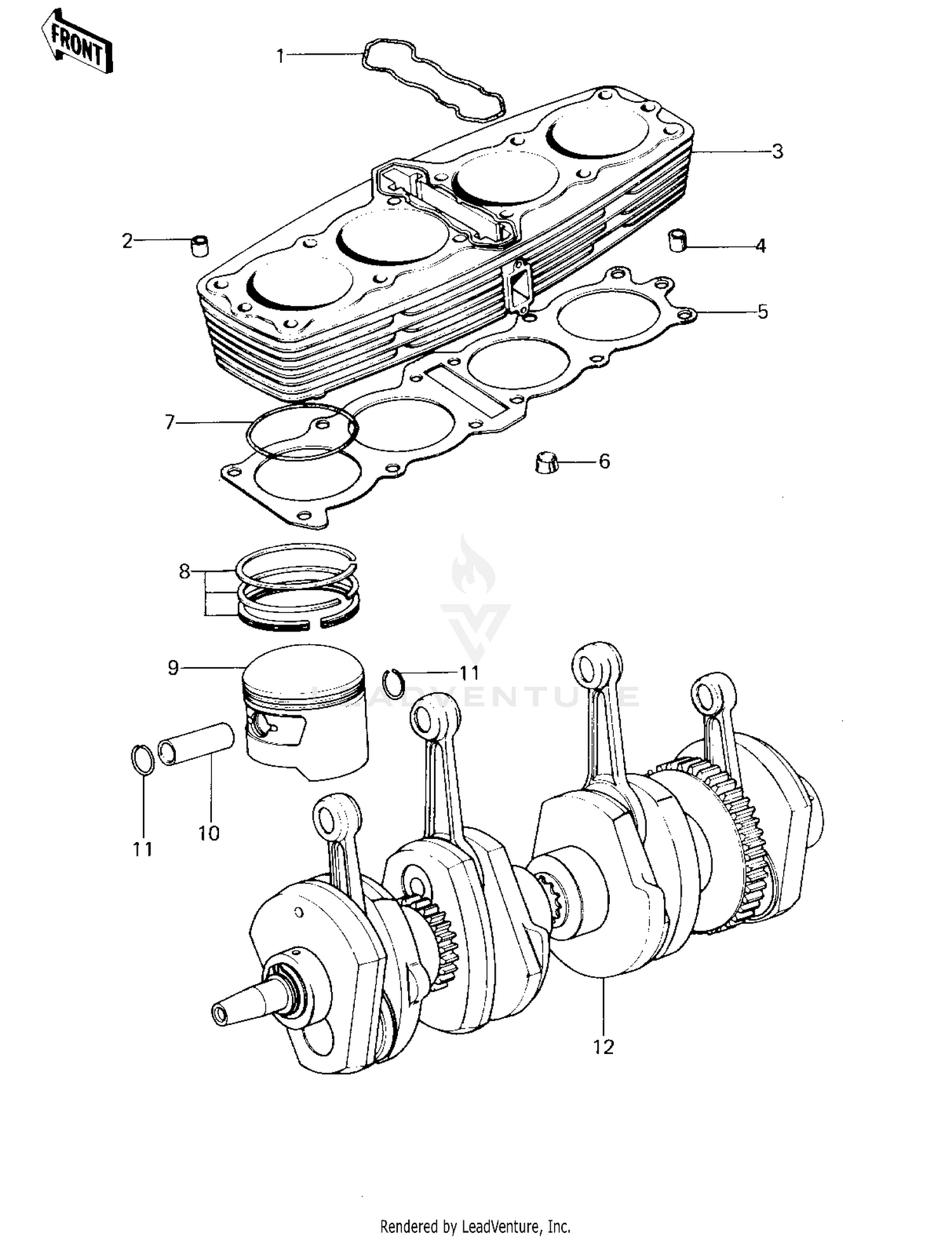

CYLINDER/PISTONS/CRANKSHAFT ('78 D1)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 92055-062 | GASKET,CYLINDER RUBER Price: $153.96 |
| 2 | 92043-1037 | PIN,DOWEL,10X14 Price: $0.74 |
| 4 | 92043-1266 | PIN,11X14X12.3 Price: $1.08 |
| 5 | 11060-1579 | GASKET,CYLINDER BASE This part replaces 11009-030. Price: $67.50 |
| 6 | 92074-030 | RUBBER PLUG,CYLINDER Price: $8.88 |
| 7 | 92055-054 | O RING,73MM Price: $21.81 |
| 8 | 13008-5012 | RING SET,STD Price: $151.39 |
| 9 | 13001-1005 | PISTON,S.T.D Price: $139.66 |
| 10 | 13002-022 | PIN-PISTON Price: $58.36 |
| 11 | 92036-021 | RING-SNAP,PISTON PIN Price: $0.49 |
