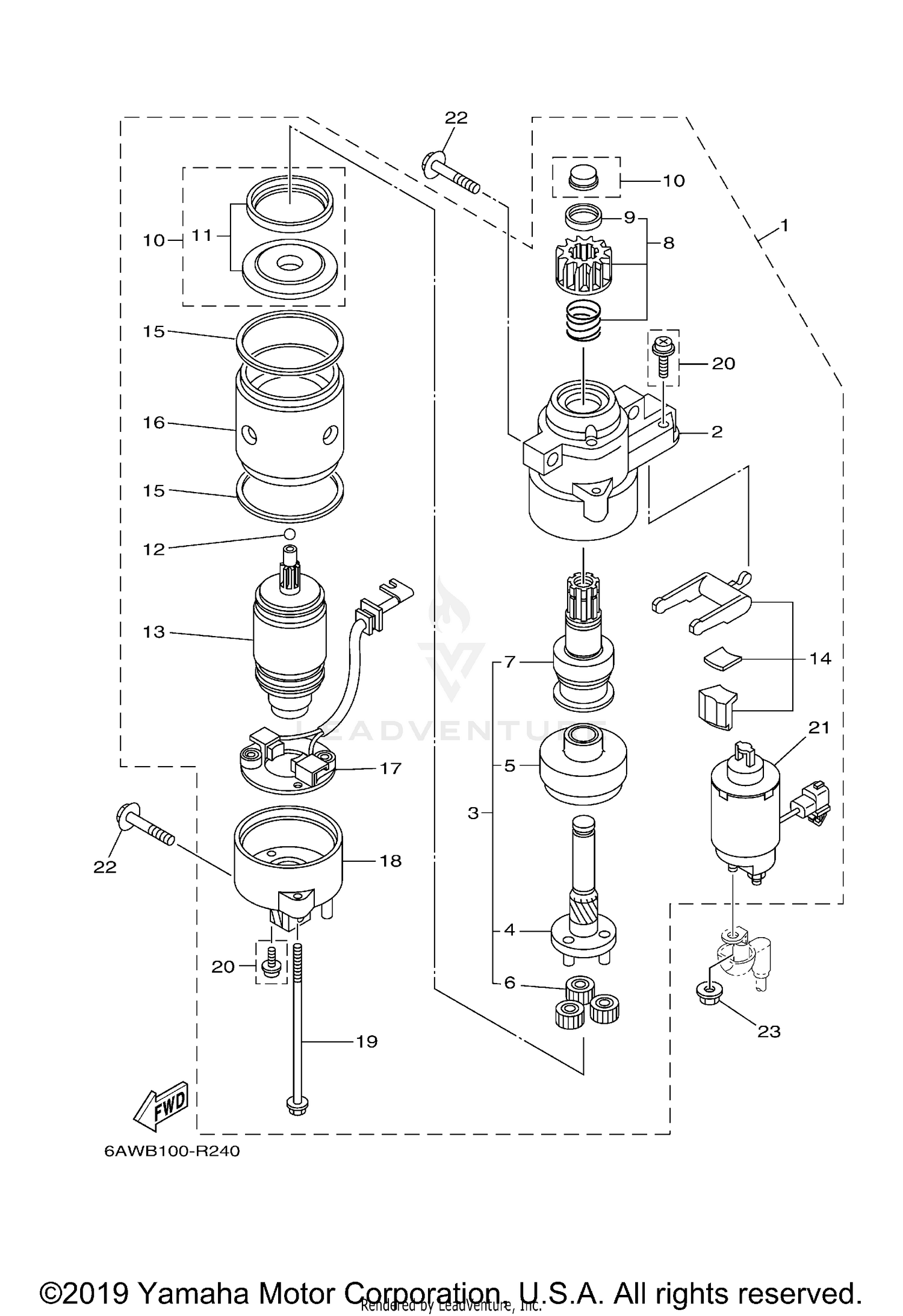

STARTING MOTOR
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6AW-81800-02-00 | STARTING MOTOR ASSY This part replaces 6AW-81800-00-00. Price: $1,753.90 |
| 2 | 6AW-81830-00-00 | FRONT BRACKET ASSY Price: $201.45 |
| 3 | 6AW-81807-00-00 | GEAR ASSY, STARTING MOTOR Price: $577.00 |
| 4 | 6AW-81836-00-00 | SHAFT, PINION Price: $174.30 |
| 5 | 6AW-81891-00-00 | GEAR, RING Price: $29.25 |
| 6 | 6AW-8183T-00-00 | GEAR, IDLER Price: $30.20 |
| 7 | 6AW-81832-00-00 | CLUTCH, OVER RUN Price: $264.15 |
| 8 | 6AW-81808-00-00 | PINION ASSY Price: $174.10 |
| 9 | 6AW-81857-00-00 | PINION STOPPER SET Price: $24.05 |
| 10 | 6AW-81862-00-00 | CAP Price: $31.60 |
| 11 | 6AW-8183R-00-00 | PACKING SET Price: $17.10 |
| 12 | 6AW-81854-00-00 | BALL, STEEL Price: $2.55 |
| 13 | 6AW-81850-00-00 | ARMATURE ASSY Price: $528.45 |
| 14 | 6AW-81839-00-00 | LEVER ASSY Price: $33.00 |
| 15 | 6AW-81842-00-00 | PACKING Price: $8.60 |
| 16 | 6AW-81810-00-00 | STATOR ASSY Price: $308.05 |
| 17 | 6AW-81840-00-00 | BRUSH HOLDER ASSY Price: $67.70 |
| 18 | 6AW-81820-00-00 | REAR BRACKET ASSY Price: $78.15 |
| 19 | 6AW-81826-00-00 | BOLT Price: $22.10 |
| 20 | 6AW-81846-00-00 | SCREW Price: $13.00 |
| 21 | 6AW-81941-00-00 | STARTER RELAY ASSY Price: $633.50 |
| 22 | 97513-08545-00 | BOLT, WITH WASHER Price: $2.99 |
