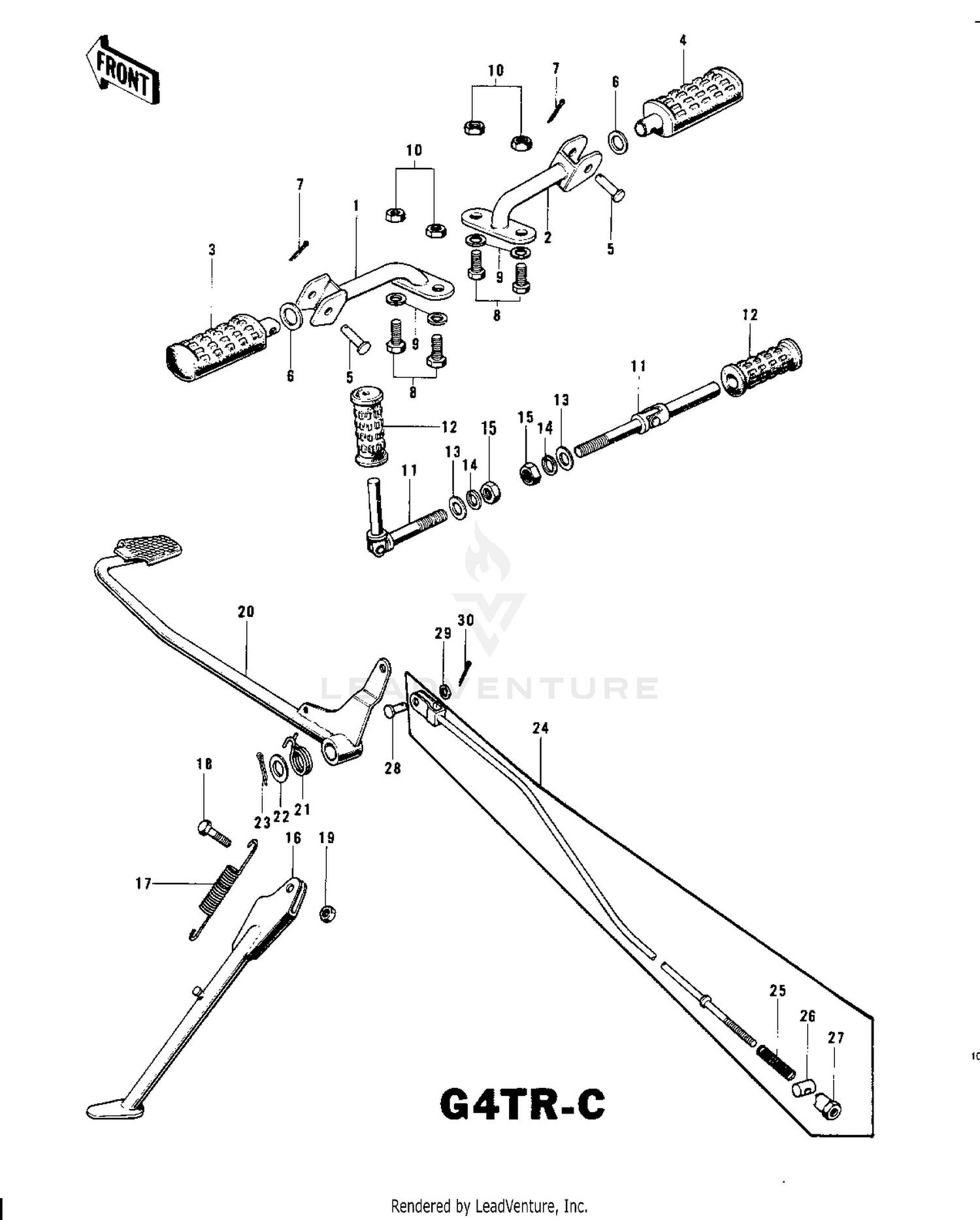

| Ref | Part Number | Description |
|---|
| 1 |
34003-047 |
BAR,L.H FOOTREST Price: $54.32 |
| 2 |
34003-048 |
BAR,R.H FOOTREST Price: $54.32 |
| 3 |
34027-1114 |
STEP-ASSY,FR,LH Price: $35.42 |
| 4 |
34027-1115 |
STEP-ASSY,FR,RH Price: $42.54 |
| 5 |
92043-080 |
PIN,8X31 Price: $5.52 |
| 6 |
92022-204 |
WASHER PL 22.5X36X2.3 Price: $0.90 |
| 7 |
550AA2515 |
PIN-COTTER,2.5X15 This part replaces 550D2515. Price: $0.47 |
| 8 |
112B1020 |
BOLT-UPSET,10X20 Price: $3.71 |
| 9 |
410AA1000 |
WASHER-PLAIN-SMALL,10MM This part replaces 410B1000. Price: $0.59 |
| 10 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 11 |
34028-009 |
STEP,RR Price: $26.11 |
| 12 |
92076-024 |
RUBBER,REAR FOOTREST Price: $24.87 |
| 13 |
92022-199 |
WASHER-PLAIN (OPT) Price: $11.60 |
| 14 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 15 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 16 |
34024-035 |
STAND-SIDE Price: $35.05 |
| 17 |
34025-001 |
SPRING,SIDE STAND Price: $13.80 |
| 18 |
112C1-025 |
BOLT-UPSET This part replaces 113G1025. Price: $3.21 |
| 19 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 20 |
43001-045 |
PEDAL-BRAKE Price: $23.70 |
| 21 |
43005-007 |
SPRING BRAKE PEDAL Price: $7.53 |
| 22 |
92022-085 |
WASHER BRAKE PEDAL Price: $3.92 |
| 23 |
550AA3030 |
PIN-COTTER,3.0X30 This part replaces 550D3030. Price: $2.51 |
| 24 |
43010-016 |
ROD ASSY,BRAKE Price: $22.13 |
| 25 |
43012-001 |
SPRING,BRAKE ROD Price: $4.65 |
| 26 |
92043-0147 |
PIN,BRAKE ROD This part replaces 92043-039. Price: $6.38 |
| 27 |
92015-042 |
NUT,BRAKE ROD Price: $6.22 |
| 28 |
92043-092 |
PIN,6X11 Price: $4.69 |
| 29 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
