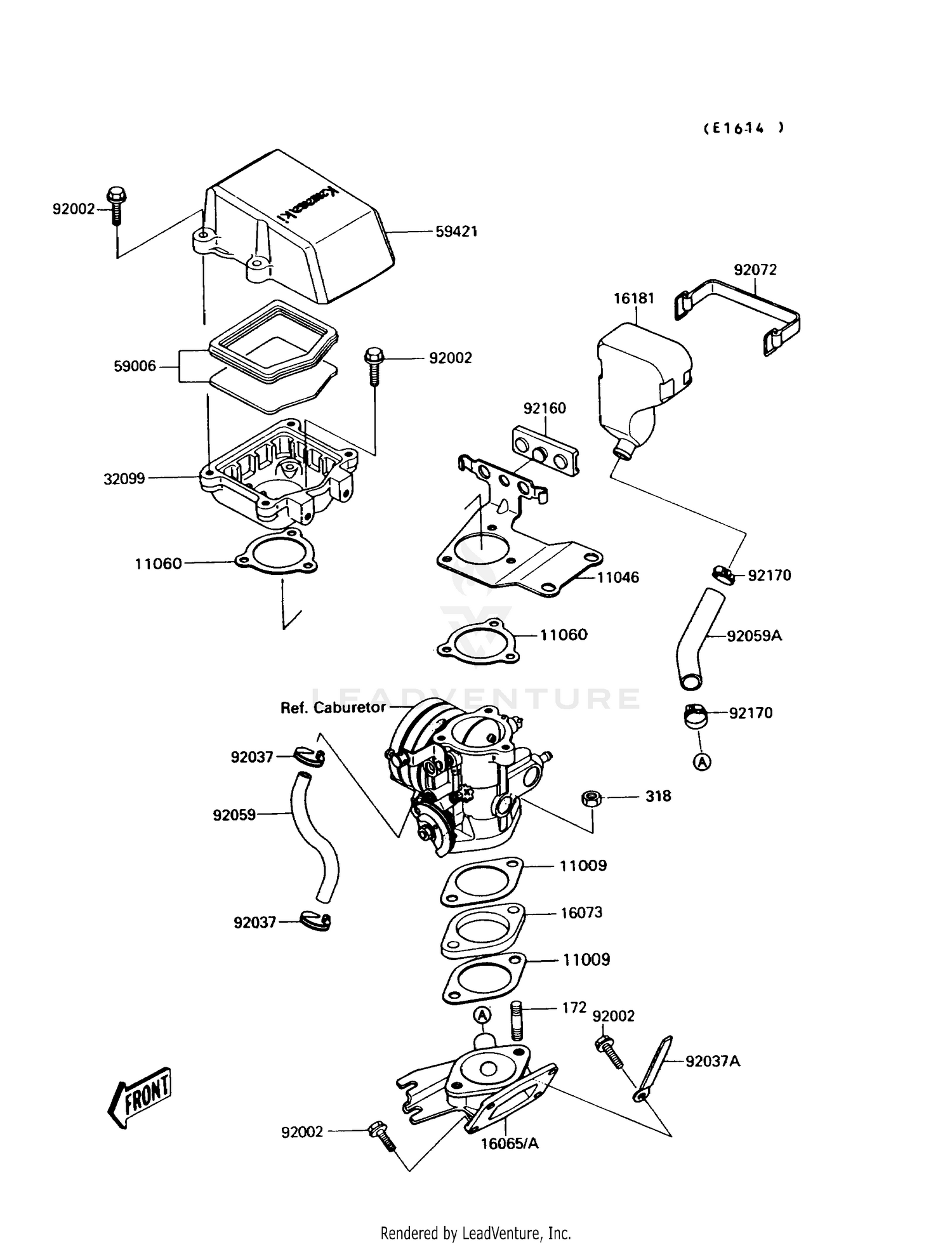

FLAME ARRESTER (JS300-A3/A4/A5)
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 172 | 172R0825 | BOLT-STUD Price: $7.65 |
| 11009 | 11009-3786 | GASKET,INSULATOR Price: $6.56 |
| 11046 | 11046-3820 | BRACKET Price: $56.53 |
| 11060 | 11060-3702 | GASKET Price: $4.32 |
| 16065 | 16065-3702 | HOLDER-CARBURETOR Price: $60.71 |
| 16073 | 16073-3701 | INSULATOR Price: $9.31 |
| 16181 | 16181-3701 | TANK-RESONATOR Price: $23.84 |
| 32099 | 32099-3702 | CASE,FLAME ARRESTER Price: $44.62 |
| 59006 | 59006-3706 | ARRESTER-FLAME Price: $75.68 |
| 59421 | 59421-3725 | COVER-INTAKE This part replaces 59421-3703. Price: $51.63 |
| 92002 | 92002-3714 | BOLT,6X25 Price: $5.00 |
| 92037 | 92037-1173 | CLAMP Price: $3.49 |
| 92037A | 92037-3736 | CLAMP,L=100 Price: $5.52 |
| 92059 | 92059-3731 | TUBE,2.5X5.8X270 This part replaces 92059-3757. Price: $9.11 |
| 92059A | 92059-3870 | TUBE Price: $13.00 |
| 92072 | 92072-3733 | BAND Price: $21.91 |
| 92160 | 92160-3741 | DAMPER Price: $11.56 |
| 92170 | 92170-3710 | CLAMP Price: $2.62 |
