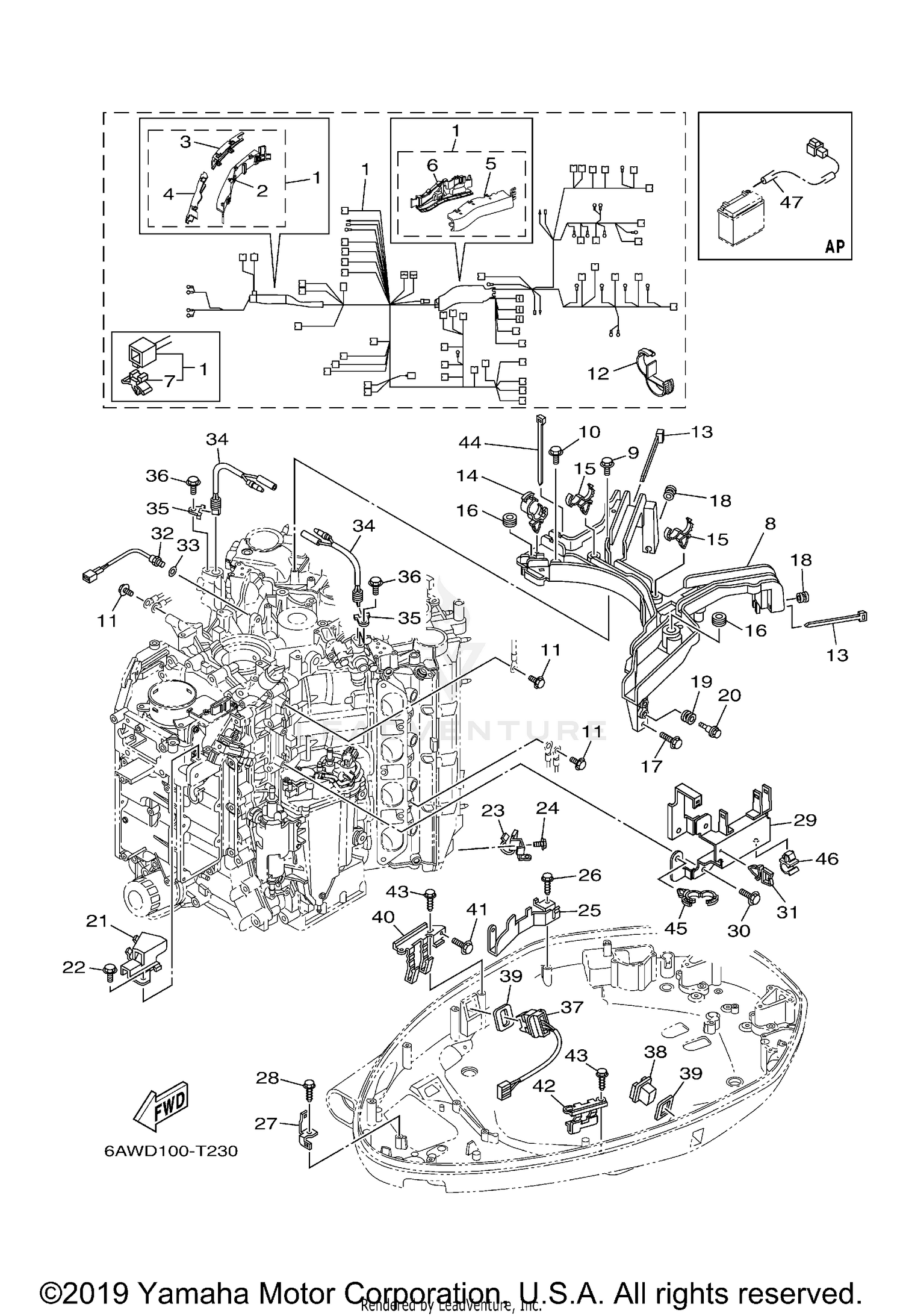

| Ref | Part Number | Description |
|---|
| 1 |
6AW-82590-34-00 |
WIRE HARNESS ASSY This part replaces 6AW-82590-32-00. Price: $2,237.05 |
| 2 |
6AW-8A7A1-00-00 |
PROTECTOR 1 Price: $16.70 |
| 3 |
6AW-8A7A2-00-00 |
PROTECTOR 2 Price: $8.60 |
| 4 |
6AW-8A7A3-00-00 |
PROTECTOR 3 Price: $8.60 |
| 5 |
6AW-8A7A4-00-00 |
PROTECTOR 4 Price: $17.35 |
| 6 |
6AW-8A7A5-00-00 |
PROTECTOR 5 Price: $16.85 |
| 7 |
90464-09M47-00 |
CLAMP Price: $4.30 |
| 8 |
6AW-82589-01-00 |
PROTECTER, WIRE HARNESS Price: $120.35 |
| 9 |
97E95-06535-00 |
BOLT, HEXAGON W/W Price: $1.10 |
| 10 |
97E95-06525-00 |
BOLT, HEXAGON W/W Price: $1.00 |
| 11 |
97E95-06616-00 |
BOLT, HEXAGON W/W Price: $1.90 |
| 12 |
90464-25005-00 |
CLAMP Price: $2.55 |
| 13 |
90465-13M18-00 |
CLAMP Price: $1.85 |
| 14 |
90464-20181-00 |
CLAMP Price: $4.72 |
| 15 |
90464-18246-00 |
CLAMP Price: $2.44 |
| 16 |
90480-19368-00 |
GROMMET Price: $4.75 |
| 17 |
97E95-06512-00 |
BOLT, HEXAGON W/W Price: $2.05 |
| 18 |
90480-12X00-00 |
GROMMET This part replaces 90480-12314-00. Price: $1.25 |
| 19 |
90480-12X00-00 |
GROMMET This part replaces 90480-12314-00. Price: $1.25 |
| 20 |
90109-06MA1-00 |
BOLT Price: $6.75 |
| 21 |
6AW-82388-00-00 |
PLATE Price: $46.05 |
| 22 |
97E95-06514-00 |
BOLT, HEXAGON W/W Price: $1.25 |
| 23 |
6AW-81677-00-00 |
CLAMP 1 Price: $17.90 |
| 24 |
97E95-06514-00 |
BOLT, HEXAGON W/W Price: $1.25 |
| 25 |
6AW-8257G-00-00 |
CLAMP, CORD Price: $60.45 |
| 26 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 27 |
6AW-42743-00-00 |
BRACKET Price: $9.35 |
| 28 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 29 |
6AW-81845-10-00 |
PLATE Price: $71.70 |
| 30 |
97E95-06514-00 |
BOLT, HEXAGON W/W Price: $1.25 |
| 31 |
90464-11121-00 |
CLAMP Price: $3.20 |
| 32 |
61A-85790-01-00 |
THERMOSENSOR ASSY This part replaces 61A-85790-00-00. Price: $144.10 |
| 33 |
92990-10600-00 |
WASHER, PLATE Price: $3.00 |
| 34 |
6AW-82560-00-00 |
THERMO SWITCH ASSY Price: $51.20 |
| 35 |
6E9-82588-00-00 |
PLATE Price: $15.80 |
| 36 |
97E95-06516-00 |
BOLT, HEXAGON W/W Price: $4.20 |
| 37 |
6AW-82563-01-00 |
TRIM & TILT SWITCH ASSY Price: $70.90 |
| 38 |
69J-42723-01-00 |
COVER, BOTTOM Price: $34.15 |
| 39 |
69J-82587-01-00 |
GASKET This part replaces 69J-82587-00-00. Price: $5.55 |
| 40 |
6AX-83614-00-00 |
BRACKET Price: $38.60 |
| 41 |
97E95-06514-00 |
BOLT, HEXAGON W/W Price: $1.25 |
| 42 |
63P-83614-01-00 |
BRACKET Price: $22.80 |
| 43 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 44 |
90465-14M66-00 |
CLAMP Price: $4.95 |
| 45 |
90464-20181-00 |
CLAMP Price: $4.72 |
| 46 |
90464-08051-00 |
CLAMP Price: $6.49 |
