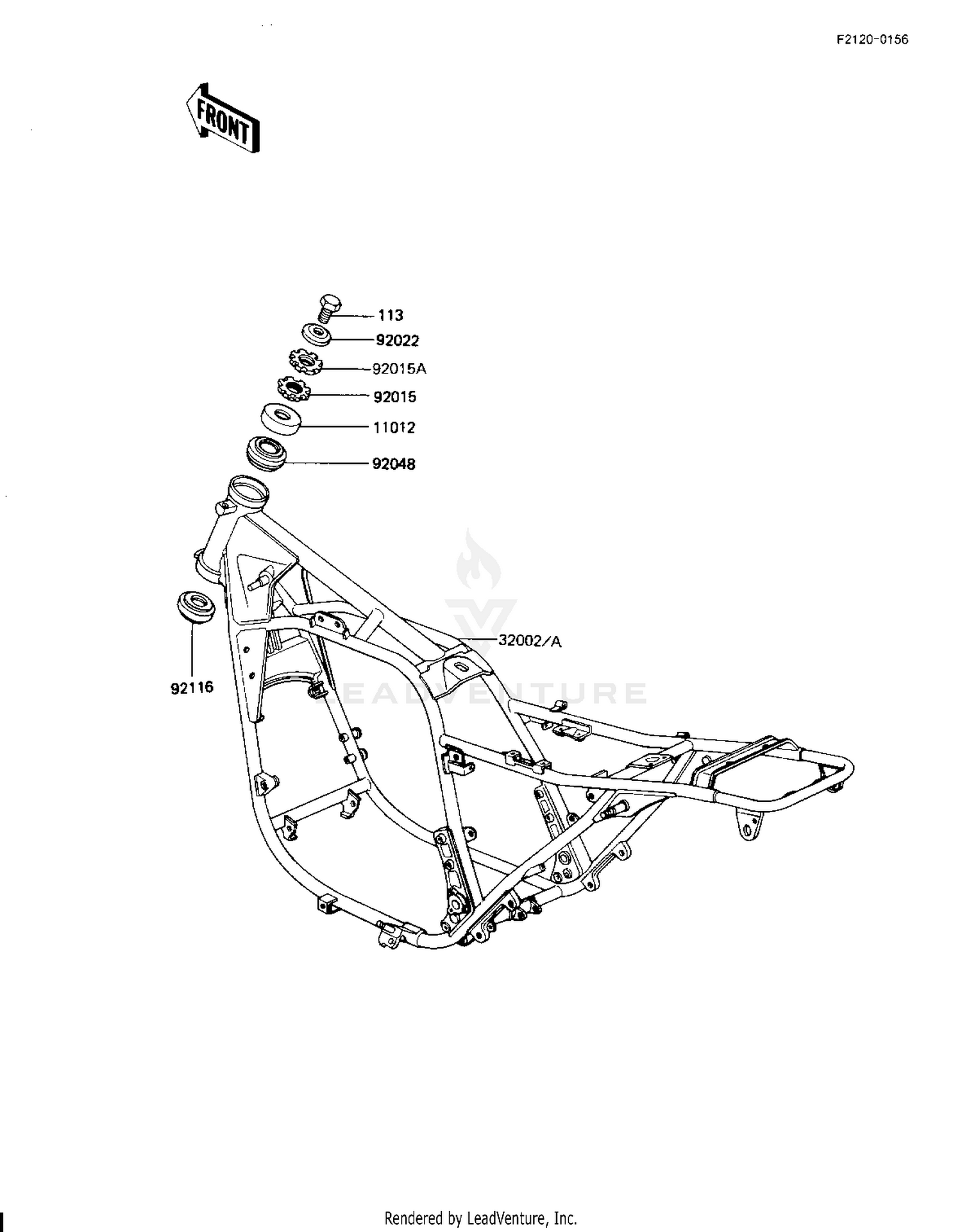

FRAME
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 11012 | 46098-017 | CAP,STEERING STEM Price: $6.16 |
| 32002 | 32002-1376 | FRAME-COMP Price: $1,275.57 |
| 32002A | 32002-1514 | FRAME-COMP,US Price: $1,111.43 |
| 92015 | 92015-1128 | NUT Price: $33.11 |
| 92015A | 92015-1378 | NUT,25MM,T=6 This part replaces 92015-1129. Price: $20.96 |
| 92022 | 92200-1140 | WASHER This part replaces 92022-1229. Price: $11.50 |
| 92048 | 92047-017 | RACE,ROLLER,32005JR RS Price: $43.75 |
| 92116 | 92116-1009 | BEARING-ROLLER,HR320/28XJ Price: $36.32 |
