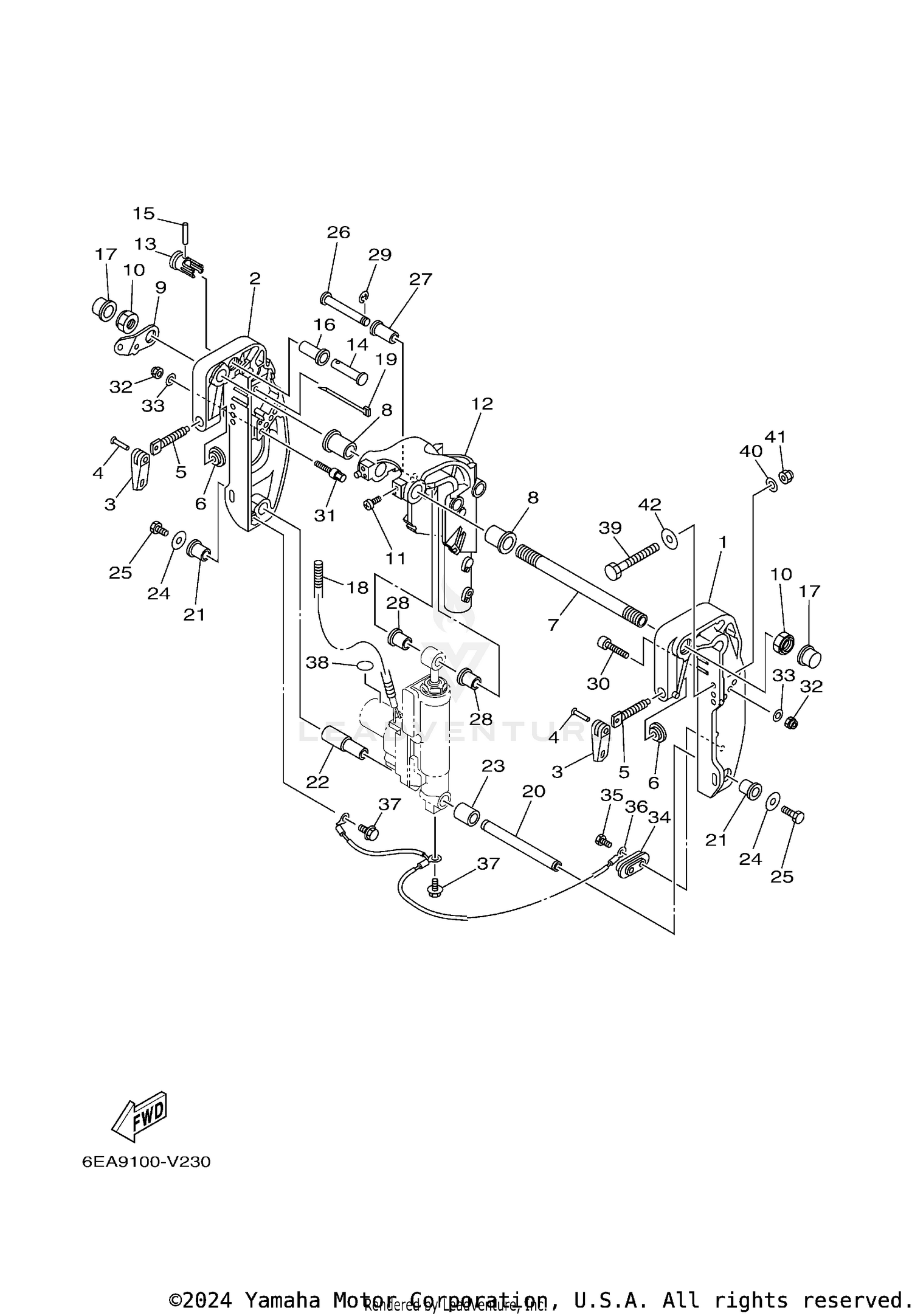

| Ref | Part Number | Description |
|---|
| 1 |
69A-43111-01-8D |
BRACKET, CLAMP 1 Price: $306.70 |
| 2 |
69A-43112-02-8D |
BRACKET, CLAMP 2 Price: $218.10 |
| 3 |
6E0-43118-01-00 |
HANDLE, TRANSOM CLAMP Price: $8.95 |
| 4 |
90243-04M01-00 |
PIN Price: $5.95 |
| 5 |
6L2-43116-00-00 |
SCREW, TRANSOM CLAMP This part replaces 6E7-43116-00-00. Price: $38.10 |
| 6 |
648-43114-01-00 |
PAD, TRANSOM CLAMP Price: $14.20 |
| 8 |
90386-22MA4-00 |
BUSH Price: $9.10 |
| 9 |
69A-43113-00-00 |
PLATE, CLAMP BRACKET Price: $13.85 |
| 10 |
90185-22007-00 |
NUT, SELF-LOCKING This part replaces 90185-22043-00. Price: $23.95 |
| 11 |
97885-08010-00 |
SCREW, PAN HEAD Price: $5.55 |
| 12 |
69G-43311-11-8D |
BRACKET, SWIVEL 1 Price: $336.75 |
| 13 |
6FM-43192-00-00 |
KNOB, STOPPER Price: $16.50 |
| 14 |
65W-43191-00-00 |
SHAFT, STOPPER Price: $19.65 |
| 15 |
91690-30018-00 |
PIN, SPRING Price: $6.40 |
| 16 |
6FM-43189-00-00 |
BUSHING Price: $16.30 |
| 17 |
6G5-43145-01-00 |
CAP, CLAMP BRACKET Price: $12.55 |
| 18 |
90447-10001-00 |
TUBE Price: $5.35 |
| 19 |
90465-13M97-00 |
CLAMP Price: $3.45 |
| 20 |
69G-43818-00-00 |
PIN, LOWER SHOCK MOUNT Price: $129.75 |
| 21 |
90386-16MA7-00 |
BUSH Price: $5.55 |
| 22 |
90386-16MA8-00 |
BUSH Price: $10.10 |
| 23 |
90387-16M02-00 |
COLLAR Price: $6.60 |
| 24 |
90201-08M03-00 |
WASHER, PLATE This part replaces 90201-08M00-00. Price: $6.55 |
| 25 |
97080-08016-00 |
BOLT Price: $4.60 |
| 26 |
90249-12M38-00 |
PIN This part replaces 90249-12M36-00. Price: $73.35 |
| 27 |
90381-12M10-00 |
BUSH, SOLID Price: $6.25 |
| 28 |
90381-12M11-00 |
BUSH, SOLID Price: $6.25 |
| 29 |
99080-10600-00 |
CIRCLIP Price: $3.55 |
| 30 |
90110-08M05-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.25 |
| 31 |
90109-08010-00 |
BOLT Price: $18.90 |
| 32 |
95780-08300-00 |
NUT, FLANGE This part replaces 90185-08057-00. Price: $11.80 |
| 33 |
92990-08600-00 |
WASHER, PLATE Price: $2.70 |
| 34 |
65W-45251-00-00 |
ANODE Price: $12.75 |
| 35 |
90101-06020-00 |
BOLT Price: $3.95 |
| 36 |
63V-82127-00-00 |
WIRE, LEAD 2 Price: $29.95 |
| 37 |
97E95-06510-00 |
BOLT, HEXAGON W/W Price: $0.80 |
| 38 |
69A-43155-00-00 |
MARK 1 Price: $5.00 |
| 39 |
90101-08M88-00 |
BOLT Price: $17.99 |
| 40 |
92990-08600-00 |
WASHER, PLATE Price: $2.70 |
| 41 |
95780-08300-00 |
NUT, FLANGE This part replaces 90185-08057-00. Price: $11.80 |
