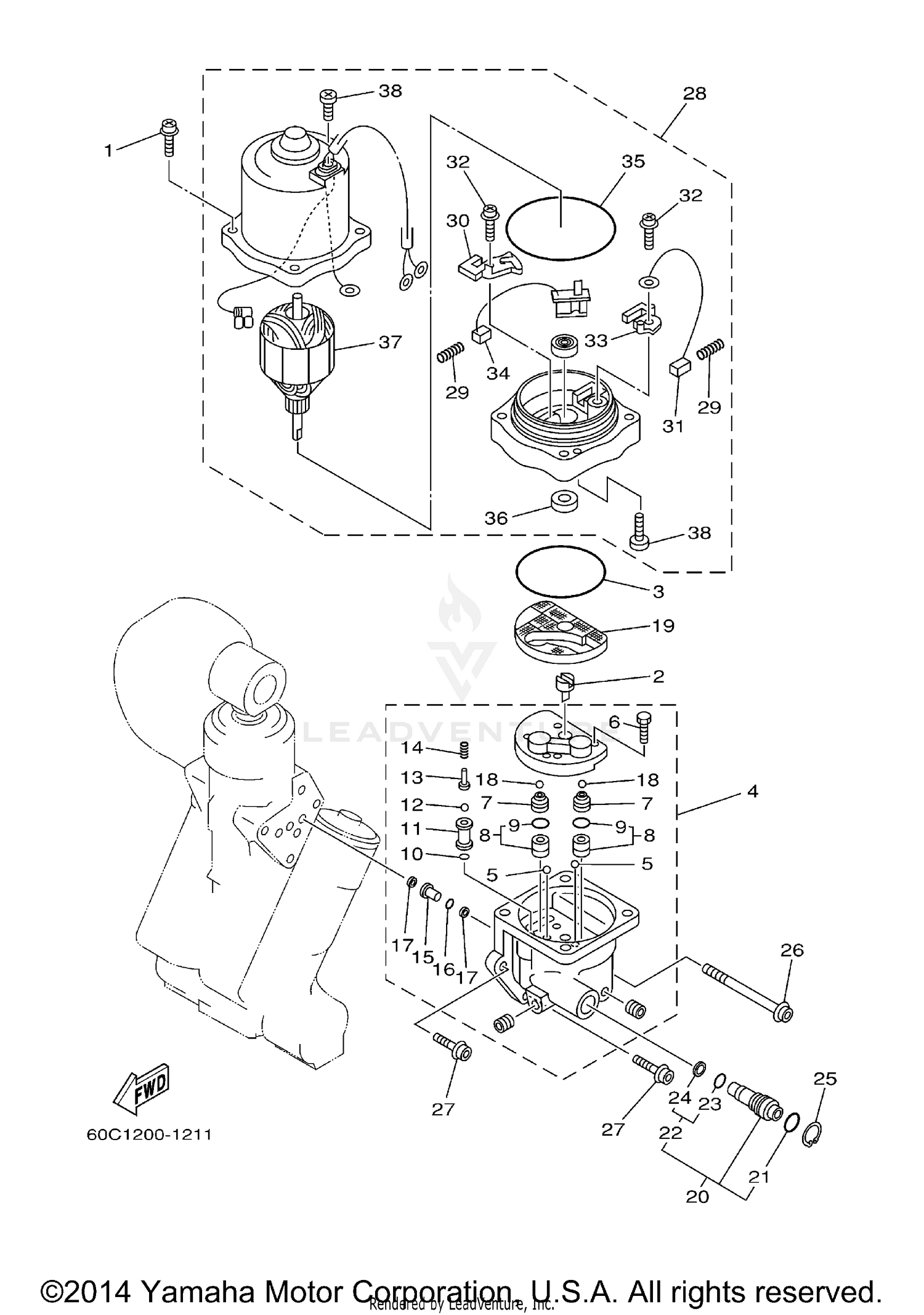

| Ref | Part Number | Description |
|---|
| 1 |
64E-4388E-11-00 |
BOLT ,SCREW (L:34.7MM) Price: $8.60 |
| 2 |
64E-43831-00-00 |
CONNECTOR, SHAFT Price: $44.90 |
| 3 |
64E-43868-09-00 |
O-RING 8 This part replaces 64E-43868-00-00. Price: $6.75 |
| 4 |
6CB-43830-00-00 |
GEAR PUMP ASSY This part replaces 64E-43830-01-00. Price: $498.45 |
| 5 |
72X-43858-00-00 |
BALL Price: $3.55 |
| 6 |
64E-43843-00-00 |
SCREW, VALVE LOCK Price: $19.20 |
| 7 |
6AW-43841-00-00 |
PISTON, SHUTTLE Price: $49.35 |
| 8 |
64E-43802-00-00 |
VALVE SUB ASSY Price: $191.50 |
| 9 |
6E5-43896-09-00 |
O-RING This part replaces 6E5-43896-00-00. Price: $6.60 |
| 10 |
6G5-43863-09-00 |
O-RING This part replaces 6G5-43863-00-00. Price: $9.80 |
| 11 |
64E-43851-00-00 |
SEAT, RELIEF VALVE Price: $56.45 |
| 12 |
64E-43858-00-00 |
BALL Price: $3.55 |
| 13 |
64E-43859-00-00 |
PIN, VALVE SUPPORT Price: $14.10 |
| 14 |
64E-43855-00-00 |
SPRING, UP RELIEF Price: $6.60 |
| 15 |
64E-43850-00-00 |
VALVE SUB ASSY Price: $84.30 |
| 16 |
6E5-43883-09-00 |
O-RING 10 This part replaces 64E-43865-00-00. Price: $6.85 |
| 17 |
64E-43816-00-00 |
FILTER 1 Price: $15.65 |
| 18 |
6AW-43858-00-00 |
BALL Price: $3.55 |
| 19 |
64E-43817-11-00 |
FILTER 2 Price: $36.15 |
| 20 |
64E-43860-01-00 |
MANUAL VALVE SUB-ASSY Price: $173.90 |
| 21 |
72X-85075-L0-00 |
O-RING Price: $13.45 |
| 22 |
64E-43827-00-00 |
RING SET Price: $9.10 |
| 23 |
64E-4387A-09-00 |
O-RING This part replaces 64E-4387A-00-00. Price: $14.20 |
| 24 |
64E-43873-00-00 |
RING, BACK UP Price: $10.70 |
| 25 |
6AW-43875-00-00 |
RING, SNAP Price: $10.40 |
| 26 |
64E-43879-11-00 |
SCREW, WITH WASHER Price: $27.80 |
| 27 |
64E-43879-01-00 |
SCREW, WITH WASHER Price: $13.00 |
| 28 |
67H-43880-18-CA |
MOTOR ASSY This part replaces 67H-43880-04-00. Price: $769.99 |
| 29 |
6H1-4386K-10-00 |
SPRING, BRUSH Price: $11.40 |
| 30 |
64E-4380J-00-00 |
HOLDER, BRUSH Price: $33.85 |
| 31 |
64E-43891-00-00 |
BRUSH 1 Price: $111.90 |
| 32 |
98507-04010-00 |
SCREW, PAN HEAD This part replaces 97607-04310-00. Price: $3.55 |
| 33 |
64E-4380F-00-00 |
HOLDER, BRUSH 2 Price: $17.75 |
| 34 |
64E-43892-00-00 |
BREAKER COMP. (BRUSH 2) Price: $141.80 |
| 35 |
6G5-43865-01-00 |
O-RING Price: $5.95 |
| 36 |
93102-08M43-00 |
OIL SEAL Price: $7.45 |
| 37 |
64E-43805-01-00 |
ARMATURE ASSY Price: $440.55 |
