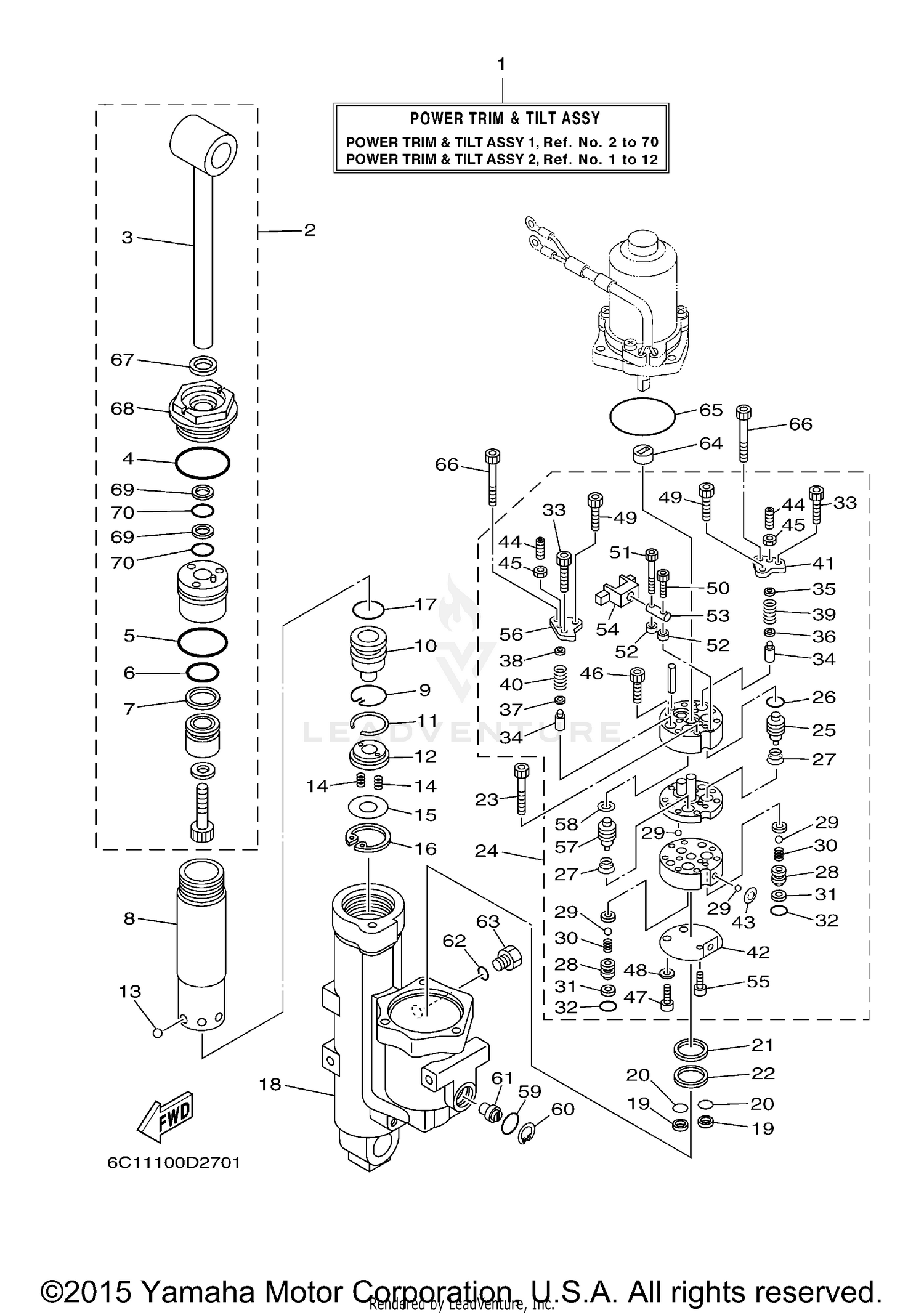

| Ref | Part Number | Description |
|---|
| 1 |
6C5-43800-13-00 |
POWER TRIM & TILT This part replaces 6C5-43800-01-8D. Price: $1,584.80 |
| 2 |
6C5-43810-09-00 |
TILT PISTON SUB ASSY This part replaces 6C5-43810-00-00. Price: $426.90 |
| 3 |
6C5-43801-01-00 |
ROD This part replaces 6C5-43801-00-00. Price: $158.40 |
| 4 |
62Y-43863-00-00 |
O-RING Price: $6.25 |
| 5 |
6C5-43862-00-00 |
O-RING Price: $7.90 |
| 6 |
6C5-43861-00-00 |
O-RING Price: $6.60 |
| 7 |
6C5-43871-00-00 |
RING, BACK UP Price: $8.15 |
| 8 |
6C5-22471-00-00 |
CYLINDER, SHOCK ABSORBER Price: $54.10 |
| 9 |
6C5-43875-00-00 |
RING, SNAP Price: $6.15 |
| 10 |
6C5-4381B-00-00 |
FREE PISTON SUB ASSY Price: $83.45 |
| 11 |
93450-32116-00 |
CIRCLIP Price: $1.75 |
| 12 |
6C5-43899-00-00 |
PLATE STOPPER Price: $27.15 |
| 13 |
93503-16003-00 |
BALL Price: $2.90 |
| 14 |
62X-4384H-00-00 |
SPRING Price: $3.55 |
| 15 |
6C5-22435-00-00 |
PLATE, VALVE 2 Price: $4.90 |
| 16 |
99009-32500-00 |
CIRCLIP Price: $8.49 |
| 17 |
6C5-43861-00-00 |
O-RING Price: $6.60 |
| 18 |
6C5-4380K-01-00 |
CYLINDER, TILT SUB ASSY This part replaces 6C5-4380K-00-00. Price: $514.55 |
| 19 |
6C5-43817-10-00 |
FILTER 2 Price: $6.95 |
| 20 |
69J-4389J-00-00 |
O-RING Price: $3.55 |
| 21 |
6C5-43816-00-00 |
FILTER 1 Price: $16.60 |
| 22 |
6C5-4380G-00-00 |
PLATE Price: $3.55 |
| 23 |
91312-05045-00 |
BOLT Price: $3.20 |
| 24 |
6C5-43830-09-00 |
GEAR PUMP ASSY This part replaces 6C5-43830-00-00. Price: $460.80 |
| 25 |
6C6-43841-00-00 |
PISTON, SHUTTLE Price: $17.85 |
| 26 |
6H1-43883-00-00 |
O-RING Price: $3.55 |
| 27 |
6C6-43894-00-00 |
SPRING, SHUTTLE RETURN Price: $3.65 |
| 28 |
6EK-4382E-00-00 |
ADAPTOR 2 This part replaces 6C6-4382E-00-00. Price: $17.00 |
| 29 |
93505-32038-00 |
BALL Price: $0.50 |
| 30 |
6C6-43853-00-00 |
SPRING, MAIN VALVE Price: $2.85 |
| 31 |
6C6-4387G-00-00 |
WASHER Price: $7.45 |
| 32 |
69J-4389J-00-00 |
O-RING Price: $3.55 |
| 33 |
91312-05030-00 |
BOLT Price: $3.55 |
| 34 |
6C5-43851-00-00 |
SEAT, RELIEF VALVE Price: $22.15 |
| 35 |
6C5-4381K-00-00 |
HOLDER Price: $6.95 |
| 36 |
6C5-43893-00-00 |
WASHER Price: $3.45 |
| 37 |
6C6-43893-00-00 |
WASHER Price: $4.90 |
| 38 |
6C6-4381K-00-00 |
HOLDER Price: $6.15 |
| 39 |
6C5-43855-00-00 |
SPRING, UP RELIEF Price: $4.90 |
| 40 |
6C5-43856-00-00 |
SPRING, DOWN RELIEF Price: $5.05 |
| 41 |
6C5-4382K-00-00 |
CAP, RELIEF VALVE Price: $12.30 |
| 42 |
6C5-43895-00-00 |
SEAT, RELIEF VALVE Price: $10.80 |
| 43 |
6C5-43854-00-00 |
SPRING, MANUAL RELEASE Price: $8.85 |
| 44 |
92A08-03110-00 |
SCREW SET Price: $3.20 |
| 45 |
90179-03478-00 |
NUT, SPECIAL SHAPE 0 2 This part replaces 95302-03600-00. Price: $0.50 |
| 46 |
91312-05025-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 47 |
6C6-43878-00-00 |
BOLT, SOCKET Price: $3.65 |
| 48 |
62Y-4387G-00-00 |
WASHER Price: $2.35 |
| 49 |
91312-04030-00 |
BOLT Price: $2.85 |
| 50 |
91312-03016-00 |
BOLT Price: $3.00 |
| 51 |
6C6-4388E-00-00 |
PLUG, TAPER SCREW Price: $12.15 |
| 52 |
6C6-4388F-00-00 |
SPACER Price: $9.45 |
| 53 |
6C6-4386G-00-00 |
PIN, STRAIGHT 2 Price: $2.40 |
| 54 |
6C6-4386E-00-00 |
LEVER 1 Price: $19.65 |
| 55 |
91312-03005-00 |
BOLT Price: $3.00 |
| 56 |
6C5-4382L-00-00 |
CAP, RELIEF VALVE Price: $12.30 |
| 57 |
6C5-43841-00-00 |
PISTON, SHUTTLE Price: $17.85 |
| 58 |
6C5-43872-00-00 |
RING, BACK UP Price: $6.25 |
| 59 |
93210-18322-00 |
O-RING This part replaces 93210-18397-00. Price: $5.60 |
| 60 |
6H1-43875-00-00 |
RING, SNAP Price: $7.40 |
| 61 |
6C5-43845-00-00 |
SCREW, MANUAL RELEASE Price: $31.50 |
| 62 |
93210-09350-00 |
O-RING This part replaces 93210-09165-00. Price: $7.49 |
| 63 |
6H1-43829-00-00 |
PLUG, RESERVOIR Price: $14.75 |
| 64 |
6C5-43831-00-00 |
CONNECTOR, SHAFT Price: $19.35 |
| 65 |
93210-65752-00 |
O-RING This part replaces 93210-64488-00. Price: $23.99 |
| 66 |
91312-05050-00 |
BOLT Price: $3.75 |
| 67 |
62Y-43822-00-00 |
SEAL, TRIM DUST Price: $8.15 |
| 68 |
6C5-43821-09-00 |
SCREW, TRIM CYLINDER This part replaces 6C5-43821-00-00. Price: $75.60 |
| 69 |
62X-43872-00-00 |
RING, BACK UP Price: $7.15 |
