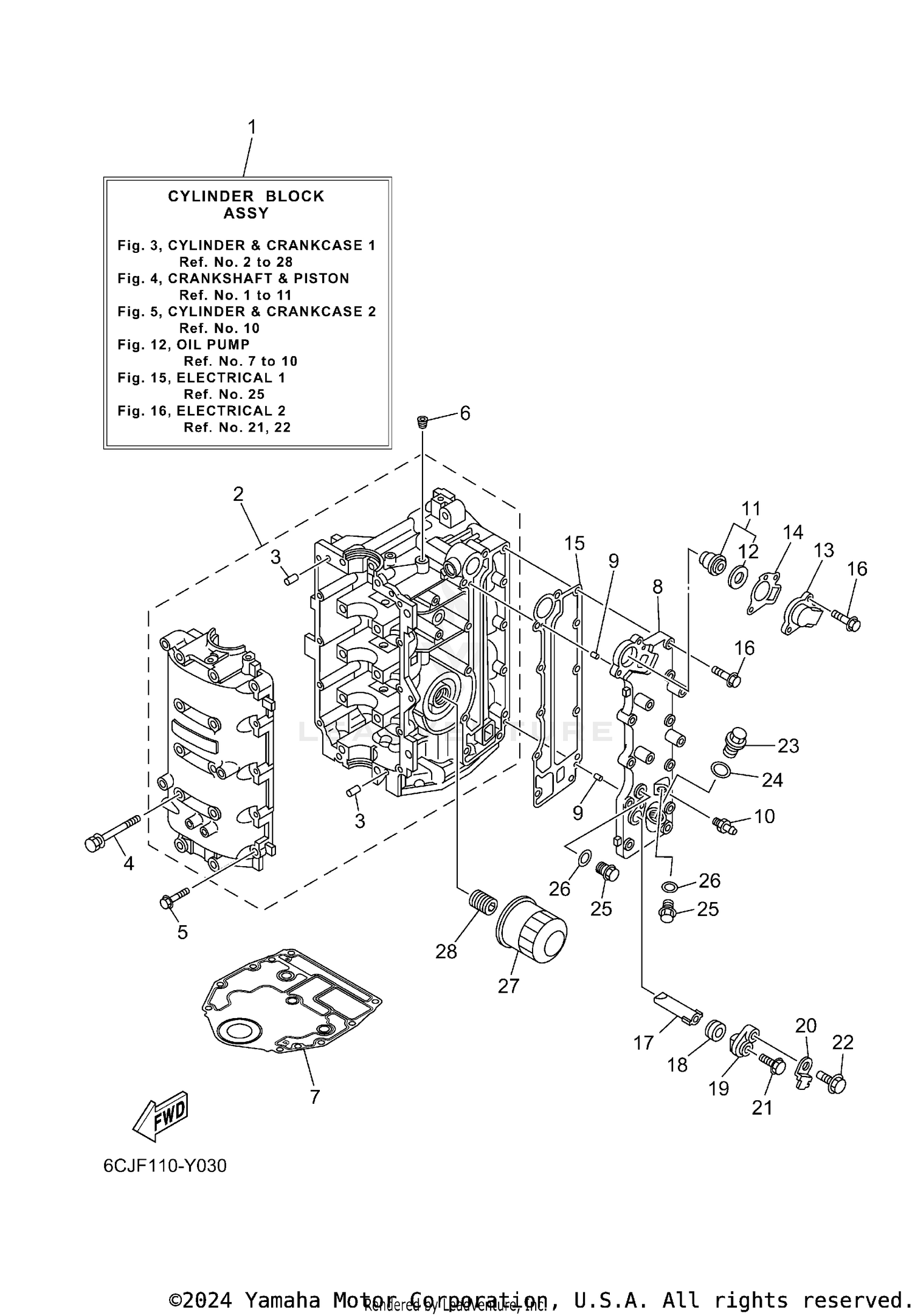

| Ref | Part Number | Description |
|---|
| 1 |
6CJ-W009B-04-9S |
CYLINDER BLOCK ASSY Price: $2,229.35 |
| 2 |
6CJ-15100-01-00 |
CRANKCASE ASSY Price: $2,202.85 |
| 3 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 4 |
90119-08154-00 |
BOLT, WITH WASHER Price: $4.90 |
| 5 |
97513-06535-00 |
BOLT, WITH WASHER Price: $2.60 |
| 6 |
90344-51007-00 |
PLUG, TAPER SCREW This part replaces 90344-51003-00. Price: $6.75 |
| 7 |
6BG-11351-02-00 |
GASKET, CYLINDER Price: $73.85 |
| 8 |
6C5-41113-11-9S |
OUTER COVER, EXHAUST Price: $157.80 |
| 9 |
93604-10M03-00 |
PIN, DOWEL Price: $5.20 |
| 10 |
62Y-12481-10-00 |
PIPE 1 Price: $12.55 |
| 11 |
66M-12411-01-00 |
THERMOSTAT This part replaces 6G8-12411-03-00. Price: $45.60 |
| 12 |
688-12412-00-00 |
SEAL, THERMOSTAT Price: $5.65 |
| 13 |
6C5-12413-00-9S |
COVER, THERMOSTAT Price: $19.80 |
| 14 |
62Y-12414-01-00 |
GASKET, COVER Price: $10.15 |
| 15 |
6C5-41114-10-00 |
GASKET, EXHAUST OUTER COVER Price: $33.20 |
| 16 |
90119-06MA5-00 |
BOLT, WITH WASHER Price: $3.55 |
| 17 |
62Y-11325-00-00 |
ANODE Price: $11.40 |
| 18 |
66M-11328-01-00 |
GROMMET, ANODE Price: $1.35 |
| 19 |
66M-11327-00-94 |
COVER, ANODE Price: $10.70 |
| 20 |
66M-12535-00-00 |
PLATE Price: $6.25 |
| 21 |
97595-05512-00 |
BOLT, WITH WASHER Price: $1.40 |
| 22 |
97E95-06520-00 |
BOLT, HEXAGON W/W Price: $3.05 |
| 23 |
90340-18M09-00 |
PLUG, STRAIGHT SCREW Price: $28.10 |
| 24 |
90201-186F1-00 |
WASHER, PLATE Price: $10.49 |
| 25 |
90340-14M06-00 |
PLUG, STRAIGHT SCREW Price: $14.20 |
| 26 |
90430-14115-00 |
GASKET Price: $3.00 |
| 27 |
5GH-13440-80-00 |
ELEMENT ASSY, OIL This part replaces 5GH-13440-90-00. Price: $14.99 |
