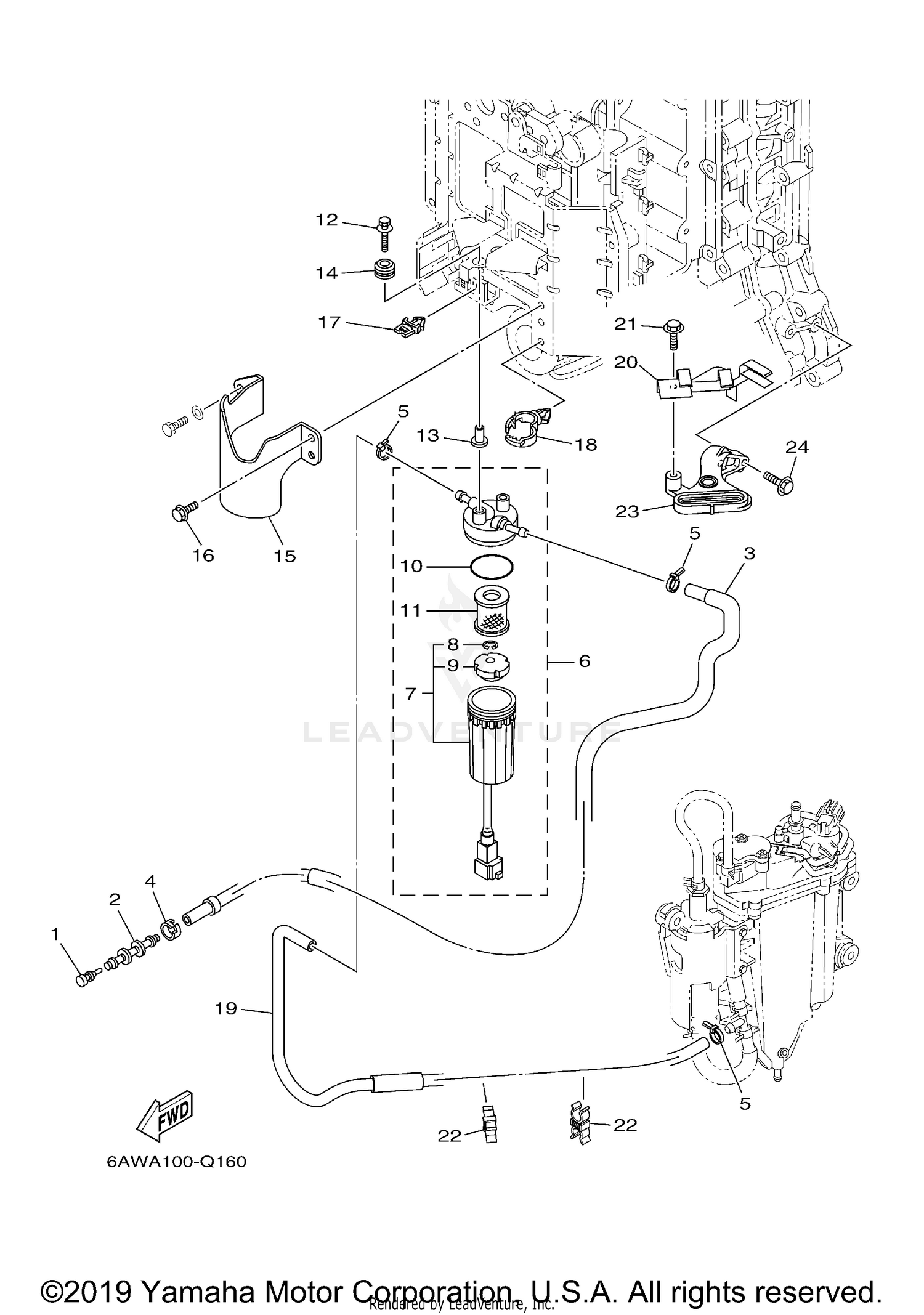

FUEL 1
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 689-85547-01-00 | DAMPER This part replaces 689-85547-00-00. Price: $5.65 |
| 2 | 6AW-24377-01-00 | PIPE, JOINT 2 Price: $24.50 |
| 3 | 6AW-24311-11-00 | PIPE, FUEL 1 Price: $70.90 |
| 4 | 6E5-24351-51-00 | BAND 1 Price: $10.40 |
| 5 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 6 | 6P3-24560-24-00 | FILTER ASSY This part replaces 6P3-24560-22-00. Price: $77.99 |
| 7 | 6P3-WS24B-21-00 | CUP, FILTER (WITH TA This part replaces 6P3-24562-21-00. Price: $149.00 |
| 8 | 6P3-24519-00-00 | CLIP Price: $5.55 |
| 9 | 6P3-24469-00-00 | FLOAT, WATER LEVEL Price: $10.95 |
| 10 | 6P3-24564-00-00 | GASKET Price: $11.35 |
| 11 | 6P3-WS24A-02-00 | ELEMENT, FILTER (WITH TAG) This part replaces 6P3-24563-01-00. Price: $25.35 |
| 12 | 90119-06288-00 | BOLT, WITH WASHER This part replaces 90119-06M17-00. Price: $4.40 |
| 13 | 90387-06289-00 | COLLAR Price: $3.18 |
| 14 | 90480-10M23-00 | GROMMET Price: $9.65 |
| 15 | 6AW-24596-00-00 | COVER Price: $105.45 |
| 16 | 97E95-06512-00 | BOLT, HEXAGON W/W Price: $2.05 |
| 17 | 90464-11121-00 | CLAMP Price: $3.20 |
| 18 | 90464-20181-00 | CLAMP Price: $4.72 |
| 19 | 6AW-24313-10-00 | PIPE 3 Price: $49.40 |
| 20 | 6AW-24422-00-00 | PLATE Price: $41.25 |
| 21 | 95D95-06012-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 22 | 90464-11009-00 | CLAMP Price: $4.65 |
| 23 | 6AW-44117-00-00 | BRACKET Price: $62.90 |
