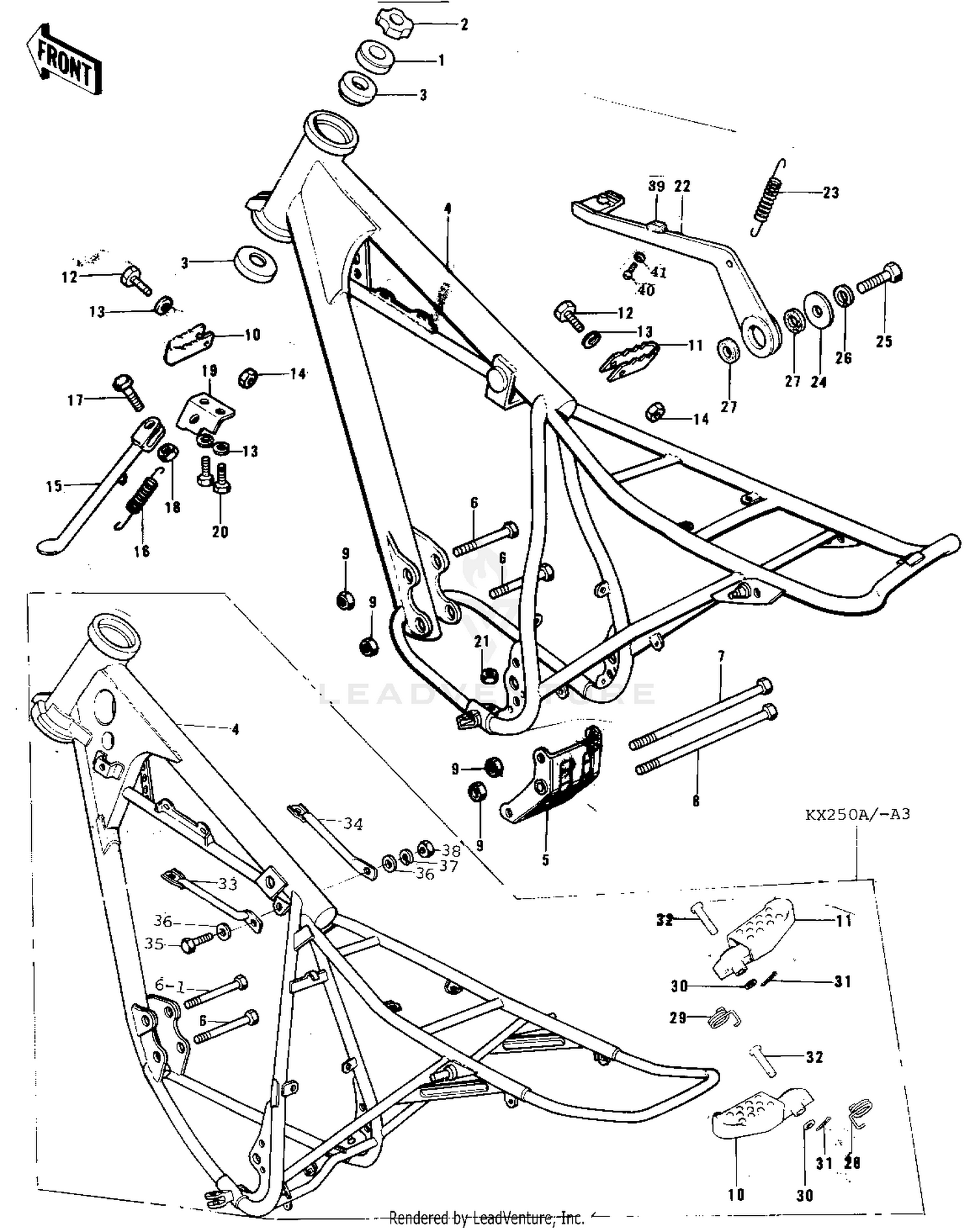

| Ref | Part Number | Description |
|---|
| 1 |
46098-015 |
CAP,STEERING STEM Price: $6.54 |
| 2 |
92015-1546 |
NUT,25MM,T=12 Price: $20.96 |
| 3 |
92047-017 |
RACE,ROLLER,32005JR RS Price: $43.75 |
| 4 |
32002-083 |
FRAME Price: $467.92 |
| 5 |
32117-005 |
BRACKET,ENGINE BASE Price: $16.46 |
| 6 |
92001-1255 |
BOLT,HEX HEAD,10X65 Price: $7.80 |
| 7 |
92001-1602 |
BOLT,FLANGED,10X110 Price: $11.07 |
| 8 |
92001-1603 |
BOLT,FLANGED,10X115 Price: $10.65 |
| 9 |
92019-016 |
NUT,10MM Price: $4.79 |
| 10 |
34028-017 |
BAR,L.H FOOTREST Price: $16.12 |
| 11 |
34028-018 |
BAR,R.H FOOTREST Price: $24.96 |
| 12 |
92002-1241 |
BOLT, 8X32 This part replaces 115B0832. Price: $2.59 |
| 13 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 14 |
92019-018 |
NUT,8MM Price: $7.24 |
| 15 |
34024-045 |
STAND-SIDE Price: $29.13 |
| 16 |
34025-004 |
SPRING-SIDE STAND Price: $7.22 |
| 17 |
113G1028 |
BOLT,10X28 Price: $9.34 |
| 18 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 19 |
34008-009 |
BRACKET,SIDE STAND Price: $21.41 |
| 20 |
115BA0820 |
BOLT-SMALL-UPSET,8X20 This part replaces 115G0820. Price: $5.52 |
| 21 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 312B0800. Price: $0.59 |
| 22 |
43077-005 |
PEDAL,BRAKE Price: $90.98 |
| 23 |
43005-026 |
SPRING,BRAKE PEDAL Price: $5.27 |
| 24 |
92022-284 |
WASHER,PLAIN,6MM Price: $5.21 |
| 25 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 26 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 27 |
670B2016 |
O RING,16MM Price: $1.36 |
| 39 |
92075-267 |
DAMPER RUBBER BRK PED Price: $7.91 |
| 40 |
220AA0510 |
SCREW-PAN-CROS,5X10 This part replaces 220B0510. Price: $0.71 |
