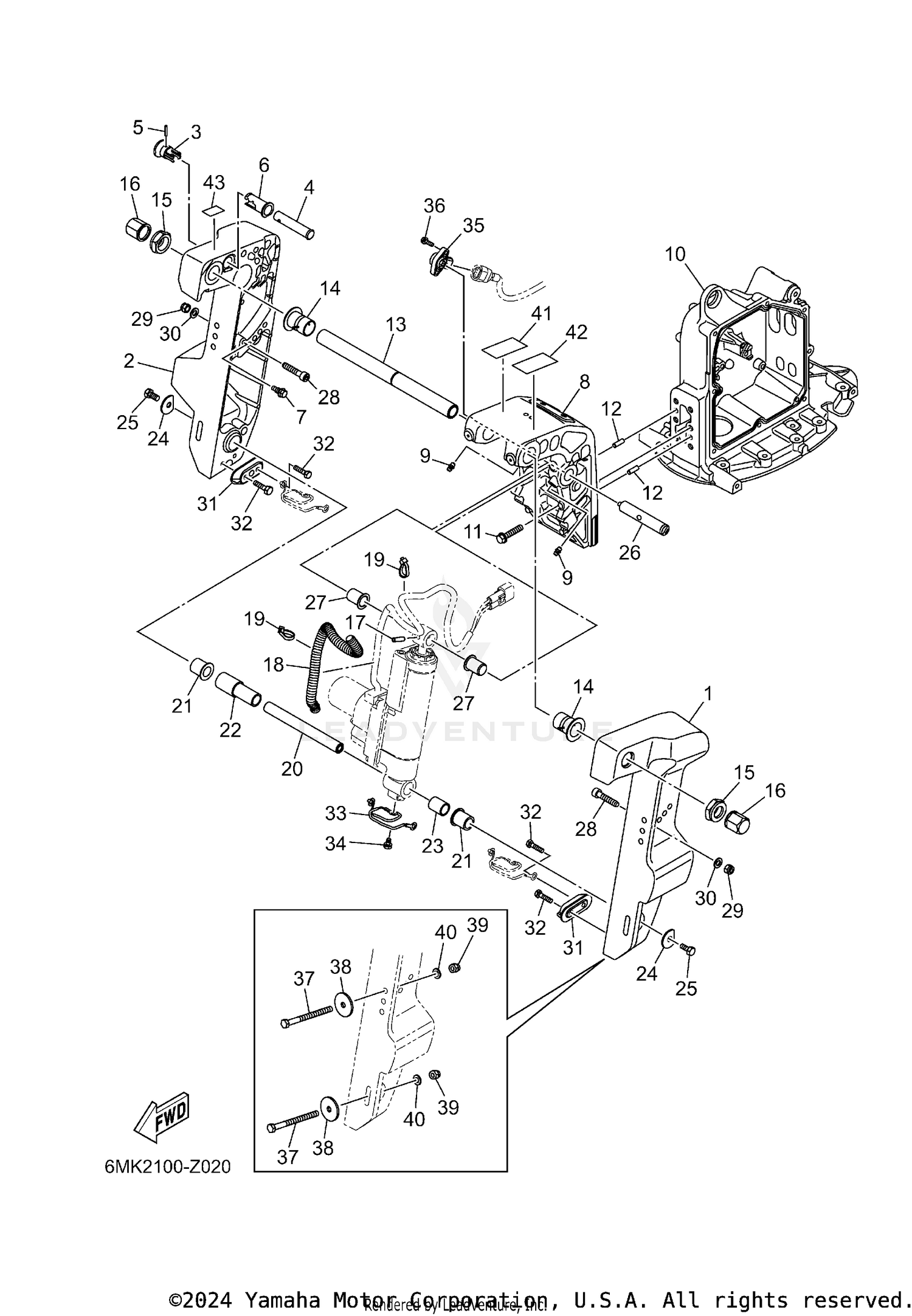

| Ref | Part Number | Description |
|---|
| 1 |
6MK-43111-00-8D |
BRACKET, CLAMP 1 Price: $2,907.95 |
| 2 |
6MK-43112-00-8D |
BRACKET, CLAMP 2 Price: $3,478.40 |
| 3 |
6FM-43192-00-00 |
KNOB, STOPPER Price: $16.50 |
| 4 |
6MK-43191-00-00 |
SHAFT, STOPPER Price: $42.60 |
| 5 |
91690-30018-00 |
PIN, SPRING Price: $6.40 |
| 6 |
6FM-43189-00-00 |
BUSHING Price: $16.30 |
| 7 |
90109-06MA1-00 |
BOLT Price: $6.75 |
| 8 |
6MK-43311-00-8D |
BRACKET, SWIVEL 1 Price: $4,316.80 |
| 9 |
93700-06002-00 |
NIPPLE, GREASE Price: $8.55 |
| 10 |
6MK-43312-00-00 |
BRACKET, SWIVEL 2 Price: $6,728.40 |
| 11 |
90119-08176-00 |
BOLT, WITH WASHER Price: $5.95 |
| 12 |
93606-19M23-00 |
PIN, DOWEL Price: $2.55 |
| 13 |
6MK-43131-00-00 |
BOLT, CLAMP BRACKET Price: $23.35 |
| 14 |
90386-22MA4-00 |
BUSH Price: $9.10 |
| 15 |
90185-22007-00 |
NUT, SELF-LOCKING This part replaces 90185-22M11-00. Price: $23.95 |
| 16 |
6G5-43145-01-00 |
CAP, CLAMP BRACKET Price: $12.55 |
| 17 |
91690-60022-00 |
PIN, SPRING Price: $2.75 |
| 18 |
90447-10011-00 |
TUBE Price: $0.90 |
| 19 |
90464-35132-00 |
CLAMP Price: $10.49 |
| 20 |
6MK-43818-00-00 |
PIN, LOWER SHOCK MOUNT Price: $35.50 |
| 21 |
90386-16MA7-00 |
BUSH Price: $5.55 |
| 22 |
90386-16003-00 |
BUSH Price: $242.55 |
| 23 |
90387-16003-00 |
COLLAR Price: $4.90 |
| 24 |
90209-08014-00 |
WASHER Price: $2.70 |
| 25 |
97080-08016-00 |
BOLT Price: $4.60 |
| 26 |
6MK-43126-00-00 |
PIN, UPPER SHOCK MOUNT Price: $387.70 |
| 27 |
90387-16037-00 |
COLLAR Price: $0.65 |
| 28 |
90110-08121-00 |
BOLT, HEXAGON SOCKET Price: $6.55 |
| 29 |
99780-08600-00 |
NUT, HEX. This part replaces 95380-08600-00. Price: $2.75 |
| 30 |
92990-08600-00 |
WASHER, PLATE Price: $2.70 |
| 31 |
65W-45251-00-00 |
ANODE Price: $12.75 |
| 32 |
90101-06020-00 |
BOLT Price: $3.95 |
| 33 |
63V-82127-00-00 |
WIRE, LEAD 2 Price: $29.95 |
| 34 |
97E95-06510-00 |
BOLT, HEXAGON W/W Price: $0.80 |
| 35 |
6GR-85887-00-00 |
SENSOR ANGLE Price: $101.05 |
| 36 |
97595-05516-00 |
BOLT, WITH WASHER Price: $1.55 |
| 37 |
90101-08M88-00 |
BOLT Price: $17.99 |
| 38 |
90201-08MA4-00 |
WASHER, PLATE Price: $11.90 |
| 39 |
95780-08300-00 |
NUT, FLANGE This part replaces 90185-08057-00. Price: $11.80 |
| 40 |
92990-08600-00 |
WASHER, PLATE Price: $2.70 |
| 41 |
6MK-42794-11-00 |
LABEL, WARNING (GENERAL) Price: $33.50 |
| 42 |
6MK-42794-21-00 |
LABEL, WARNING (GENERAL) Price: $33.50 |
