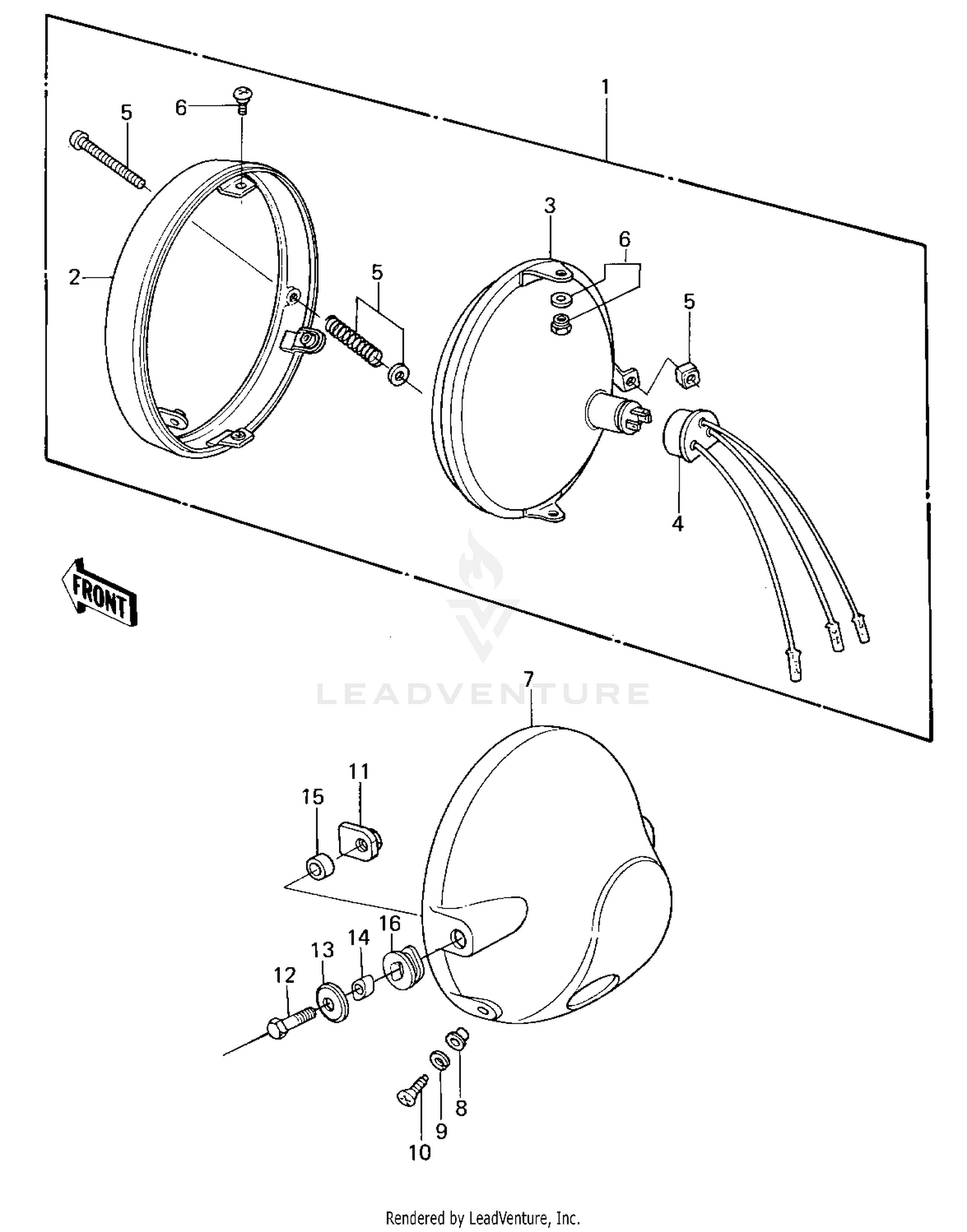

| Ref | Part Number | Description |
|---|
| 1 |
23003-022 |
LIGHT UNIT HEAD Price: $329.54 |
| 2 |
23006-044 |
RIM HEAD LIGHT Price: $92.87 |
| 3 |
23007-059 |
LENS UNIT HEAD LIGHT Price: $99.38 |
| 4 |
23008-037 |
SOCKET ASSY,HEAD LAMP Price: $21.60 |
| 5 |
23013-008 |
SCREW ASY FOCUS ADJST Price: $16.76 |
| 6 |
23013-009 |
SCREW ASY LENS UNIT Price: $12.53 |
| 7 |
23005-047-21 |
BODY,HEAD LIGHT,BLACK Price: $129.45 |
| 8 |
23021-010 |
WASHER Price: $4.31 |
| 9 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 10 |
92009-1947 |
SCREW,5MM This part replaces 92011-024. Price: $2.58 |
| 11 |
23020-021 |
NUT 10MM Price: $7.98 |
| 12 |
92007-024 |
BOLT,10MM Price: $8.06 |
| 13 |
92022-289 |
WASHER Price: $16.33 |
| 14 |
92027-1129 |
COLLAR,HEAD LAMP Price: $6.35 |
| 15 |
92027-231 |
COLLAR,HEAD LIGHT Price: $5.73 |
