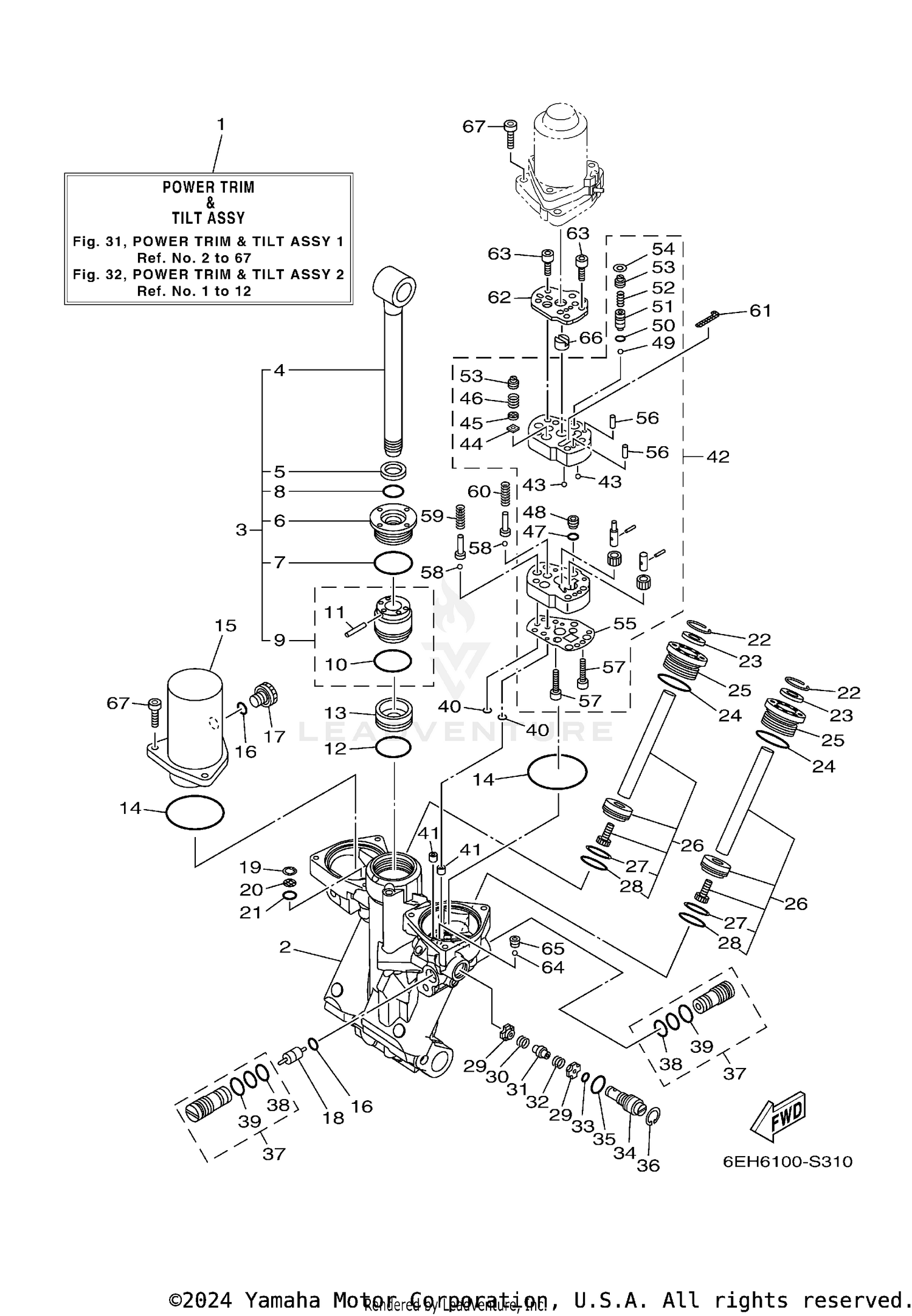

| Ref | Part Number | Description |
|---|
| 1 |
6CB-43800-14-00 |
POWER TRIM & TILT ASSY This part replaces 6CB-43800-10-00. Price: $2,493.95 |
| 2 |
6CB-4380L-10-00 |
HOUSING, TRIM & TILT SUB ASSY Price: $1,094.40 |
| 3 |
63P-43810-21-00 |
TILT PISTON SUB AS This part replaces 63P-43810-20-00. Price: $615.75 |
| 4 |
63P-43801-10-00 |
ROD Price: $226.80 |
| 5 |
93106-19001-00 |
OIL SEAL This part replaces 93106-19N50-00. Price: $10.20 |
| 6 |
63P-43811-20-00 |
SCREW, CYLINDER END Price: $74.45 |
| 7 |
63P-43861-20-00 |
O-RING Price: $2.40 |
| 8 |
63P-43863-10-00 |
O-RING Price: $4.05 |
| 9 |
63P-4380P-20-00 |
PISTON SUB ASSY Price: $180.15 |
| 10 |
6H1-43862-00-00 |
O-RING Price: $13.45 |
| 11 |
91609-16010-00 |
PIN, SPRING Price: $0.55 |
| 12 |
6H1-43862-00-00 |
O-RING Price: $13.45 |
| 13 |
63P-43814-20-00 |
PISTON, FREE Price: $33.30 |
| 14 |
93210-68N50-00 |
O-RING Price: $3.20 |
| 15 |
63P-4382C-20-00 |
BODY, RESERVOIR 2 Price: $74.15 |
| 16 |
93210-09350-00 |
O-RING This part replaces 93210-09165-00. Price: $7.49 |
| 17 |
6CJ-43829-20-00 |
PLUG, RESERVOIR This part replaces 6CJ-43829-10-00. Price: $18.65 |
| 18 |
6H1-43841-11-00 |
PISTON, SHUTTLE Price: $37.90 |
| 19 |
63P-43876-10-00 |
RING, SNAP Price: $2.50 |
| 20 |
63P-43816-10-00 |
FILTER 1 Price: $4.50 |
| 21 |
93210-11N52-00 |
O-RING Price: $2.50 |
| 22 |
63P-43875-20-00 |
RING, SNAP Price: $1.25 |
| 23 |
63P-43822-20-00 |
SEAL, TRIM DUST Price: $5.95 |
| 24 |
63P-43862-10-00 |
O-RING Price: $5.50 |
| 25 |
63P-43821-29-00 |
SCREW, TRIM CYLINDER This part replaces 63P-43821-20-00. Price: $78.75 |
| 26 |
63P-43820-20-00 |
TRIM PISTON SUB ASSY Price: $94.20 |
| 27 |
62X-43871-00-00 |
RING, BACK UP Price: $14.75 |
| 28 |
93210-29375-00 |
O-RING Price: $6.15 |
| 29 |
63P-43847-10-00 |
SEAT, MANUAL VALVE Price: $6.25 |
| 30 |
63P-43854-10-00 |
SPRING, MANUAL RELEASE Price: $4.05 |
| 31 |
63P-4382A-10-00 |
ADAPTOR 1 Price: $4.80 |
| 32 |
63P-4384H-10-00 |
SPRING Price: $3.15 |
| 33 |
69J-4389J-00-00 |
O-RING Price: $3.55 |
| 34 |
63P-43845-20-00 |
SCREW, MANUAL RELEASE Price: $28.90 |
| 35 |
93210-12790-00 |
O-RING This part replaces 93210-12327-00. Price: $8.49 |
| 36 |
61A-43876-01-00 |
RING, SNAP This part replaces 61A-43876-00-00. Price: $3.05 |
| 37 |
63P-43802-21-00 |
VALVE SUB ASSY This part replaces 63P-43802-20-00. Price: $43.05 |
| 38 |
93210-12N52-00 |
O-RING Price: $4.15 |
| 39 |
6H1-43866-01-00 |
O-RING Price: $3.00 |
| 40 |
93210-06519-00 |
O-RING This part replaces 93210-064A5-00. Price: $4.40 |
| 41 |
63P-4381C-20-00 |
FILTER 3 Price: $4.40 |
| 42 |
63P-43830-20-00 |
GEAR PUMP ASSY Price: $194.35 |
| 43 |
93503-16003-00 |
BALL Price: $2.90 |
| 44 |
6H1-4384G-11-00 |
SEAL, RELIEF VALVE Price: $11.40 |
| 45 |
6H1-43844-10-00 |
PIN, VALVE SUPPORT Price: $13.35 |
| 46 |
6H1-43856-10-00 |
SPRING, DOWN RELIEF Price: $6.40 |
| 47 |
93210-07N51-00 |
O-RING Price: $2.50 |
| 48 |
63P-43851-20-00 |
SEAT, RELIEF VALVE Price: $6.25 |
| 49 |
93501-08001-00 |
BALL Price: $1.15 |
| 50 |
93210-06519-00 |
O-RING This part replaces 93210-064A5-00. Price: $4.40 |
| 51 |
63P-43844-20-00 |
PIN, VALVE SUPPORT Price: $5.75 |
| 52 |
69J-43855-00-00 |
SPRING, UP RELIEF Price: $4.90 |
| 53 |
63P-43843-10-00 |
SCREW, VALVE LOCK Price: $6.70 |
| 54 |
63P-43338-10-00 |
WASHER, WAVE Price: $2.05 |
| 55 |
63P-4384G-20-00 |
SEAL, RELIEF VALVE Price: $6.25 |
| 56 |
93604-10011-00 |
PIN, DOWEL Price: $8.49 |
| 57 |
91312-04020-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.55 |
| 58 |
93501-08001-00 |
BALL Price: $1.15 |
| 59 |
63P-43857-10-00 |
SPRING, ABSORBER VALVE Price: $11.10 |
| 60 |
63P-4385H-10-00 |
SPRING, SEAL Price: $3.15 |
| 61 |
6CJ-43816-00-00 |
FILTER 1 Price: $20.20 |
| 62 |
63P-4381J-10-00 |
PLATE Price: $3.80 |
| 63 |
91312-05035-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.45 |
| 64 |
93505-32038-00 |
BALL Price: $0.50 |
| 65 |
61A-43878-00-00 |
BOLT, SOCKET Price: $3.80 |
| 66 |
69J-43831-00-00 |
CONNECTOR, SHAFT Price: $43.65 |
