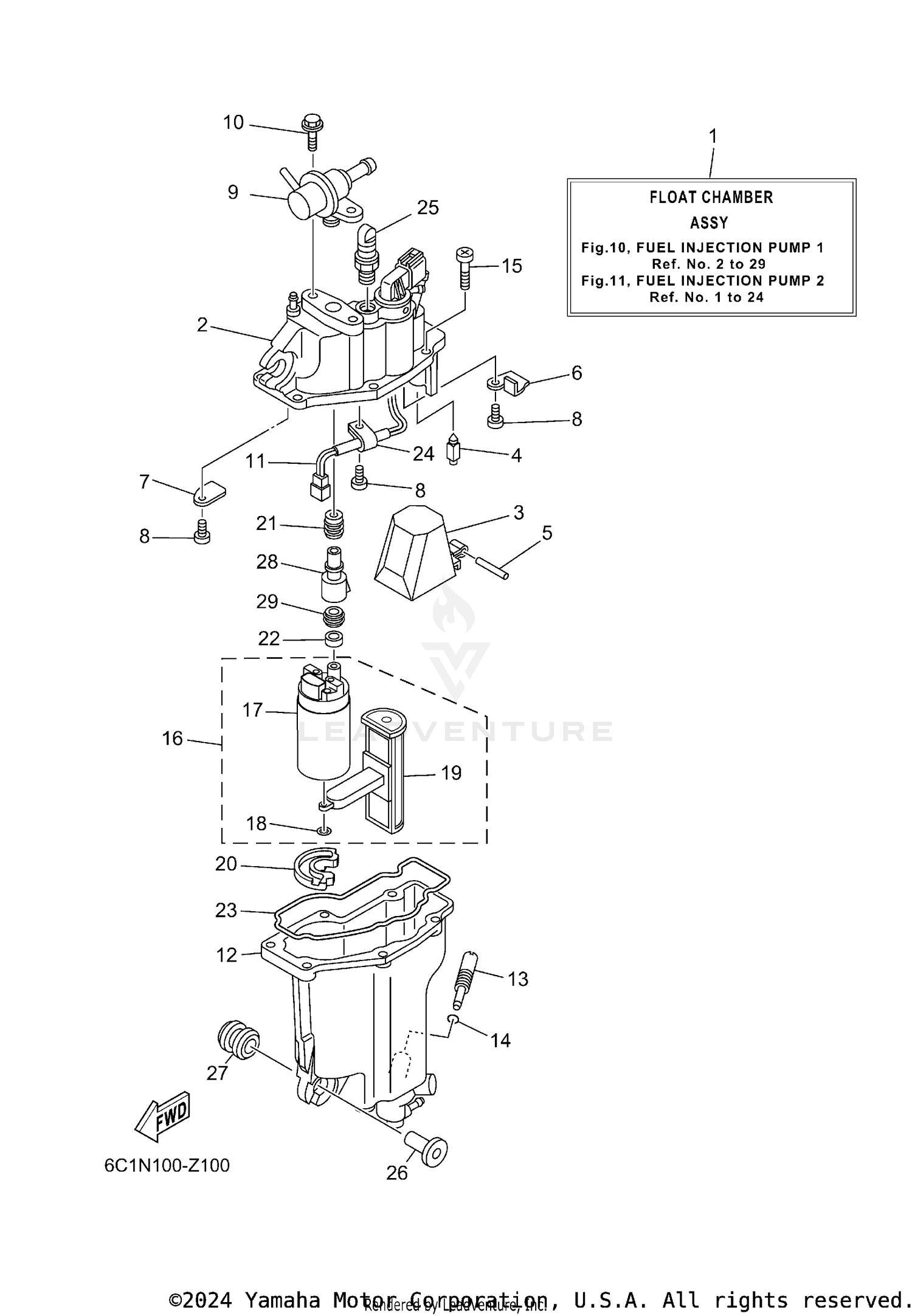

| Ref | Part Number | Description |
|---|
| 1 |
6C5-14180-60-00 |
FLOAT CHAMBER ASSY Price: $1,808.70 |
| 2 |
6C5-14182-20-00 |
COVER, FLOAT CHAMBER Price: $453.55 |
| 3 |
6C5-14985-00-00 |
FLOAT Price: $114.55 |
| 4 |
6C5-14546-10-00 |
VALVE, NEEDLE Price: $39.35 |
| 5 |
6C5-14386-00-00 |
PIN, FLOAT Price: $6.75 |
| 6 |
6C5-2441R-10-00 |
PLATE, BAFFLE 1 Price: $33.80 |
| 7 |
6C5-2441T-10-00 |
PLATE, BAFFLE 2 Price: $6.05 |
| 8 |
6C5-24453-00-00 |
SCREW Price: $5.05 |
| 9 |
6C5-13906-01-00 |
REGULATOR, PRESSURE This part replaces 6C5-13906-02-00. Price: $139.75 |
| 10 |
6C5-24592-00-00 |
BOLT Price: $4.80 |
| 11 |
6C5-87226-10-00 |
WIRE HARNESS ASSY Price: Call Us |
| 12 |
6C5-14960-20-00 |
BODY ASSY Price: $169.60 |
| 13 |
6C5-14191-00-00 |
PLUG, DRAIN Price: $5.80 |
| 14 |
6C5-14397-00-00 |
O-RING Price: $6.75 |
| 15 |
6C5-14567-00-00 |
SCREW Price: $12.45 |
| 16 |
6C5-13907-10-00 |
FUEL PUMP COMP. Price: Call Us |
| 18 |
6C5-14127-10-00 |
CLIP Price: $7.20 |
| 20 |
6C5-13593-10-00 |
DAMPER Price: $58.85 |
| 21 |
6C5-13781-00-00 |
DAMPER, PUMP Price: $15.20 |
| 22 |
6C5-13716-10-00 |
COLLAR Price: Call Us |
| 23 |
6C5-14984-10-00 |
GASKET, FLOAT CHAMBER Price: $24.50 |
| 24 |
6C5-21337-10-00 |
CLAMP, CABLE Price: $19.90 |
| 25 |
6C5-14225-00-00 |
CAP Price: $24.15 |
| 26 |
90387-06M69-00 |
COLLAR Price: $9.65 |
| 27 |
90480-09M12-00 |
GROMMET Price: $6.40 |
| 28 |
6C5-13132-00-00 |
JOINT Price: $17.25 |
