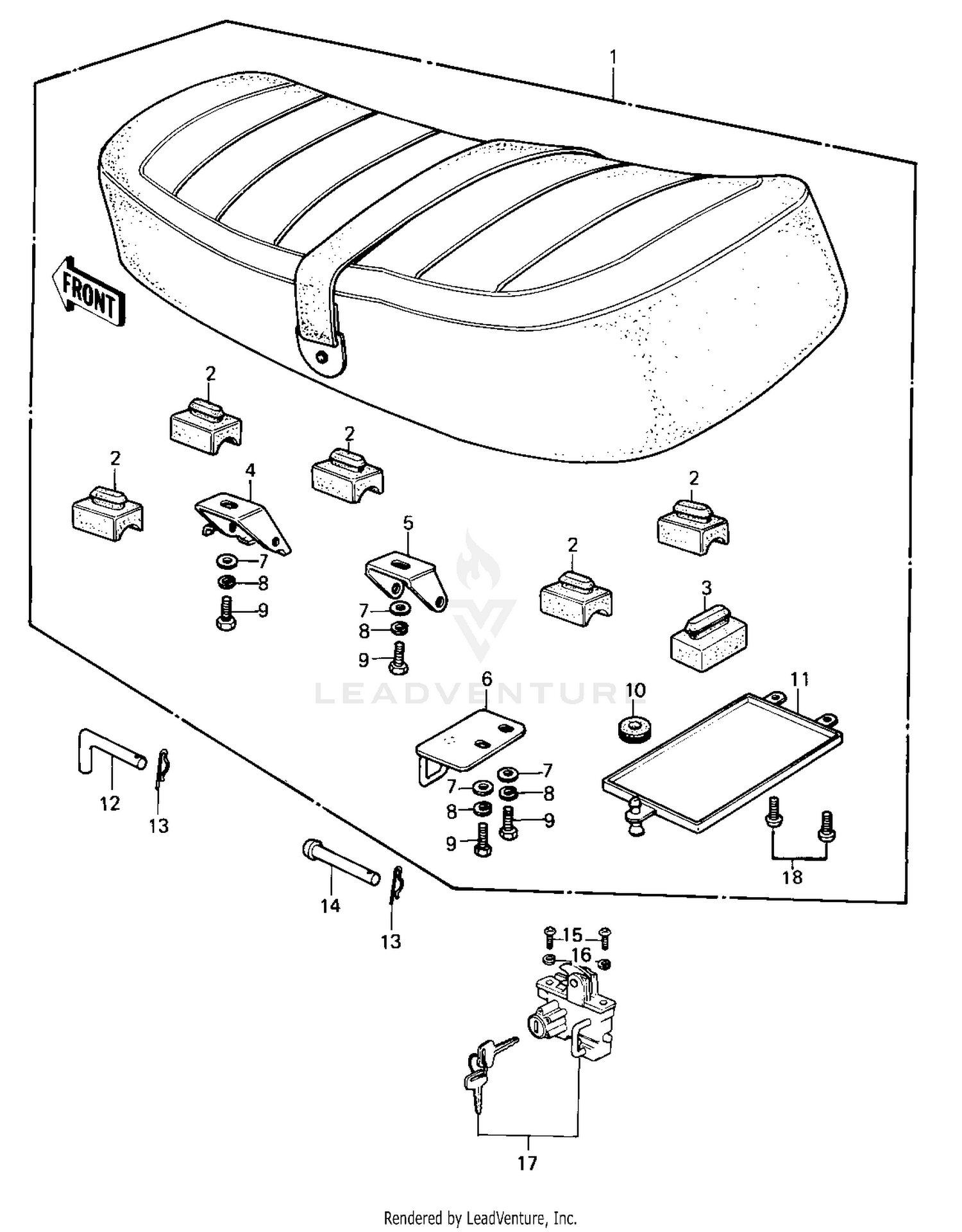

| Ref | Part Number | Description |
|---|
| 1 |
53001-1139 |
SEAT-ASSY,DUAL Price: $357.05 |
| 2 |
92075-156 |
DAMPER RUBBER-SEAT Price: $11.13 |
| 3 |
92075-099 |
DAMPER Price: $5.52 |
| 4 |
53009-1007 |
HINGE,SEAT Price: $6.40 |
| 5 |
53009-026 |
HINGE, REAR Price: $16.61 |
| 6 |
53008-024 |
HOOK,SEAT Price: $14.92 |
| 7 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 8 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 9 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 10 |
92071-056 |
GROMMET Price: $4.26 |
| 11 |
32099-011 |
CASE Price: $16.66 |
| 12 |
92043-1064 |
PIN,SEAT PIVOT Price: $5.51 |
| 13 |
554DA0600 |
PIN-SNAP,1.2X21.2 This part replaces 554A0600. Price: $0.95 |
| 14 |
53011-006 |
PIN, DUAL SEAT PIVOT Price: $5.24 |
| 15 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
| 16 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 17 |
27016-5028 |
LOCK ASSY,SEAT HELMET Price: $92.04 |
