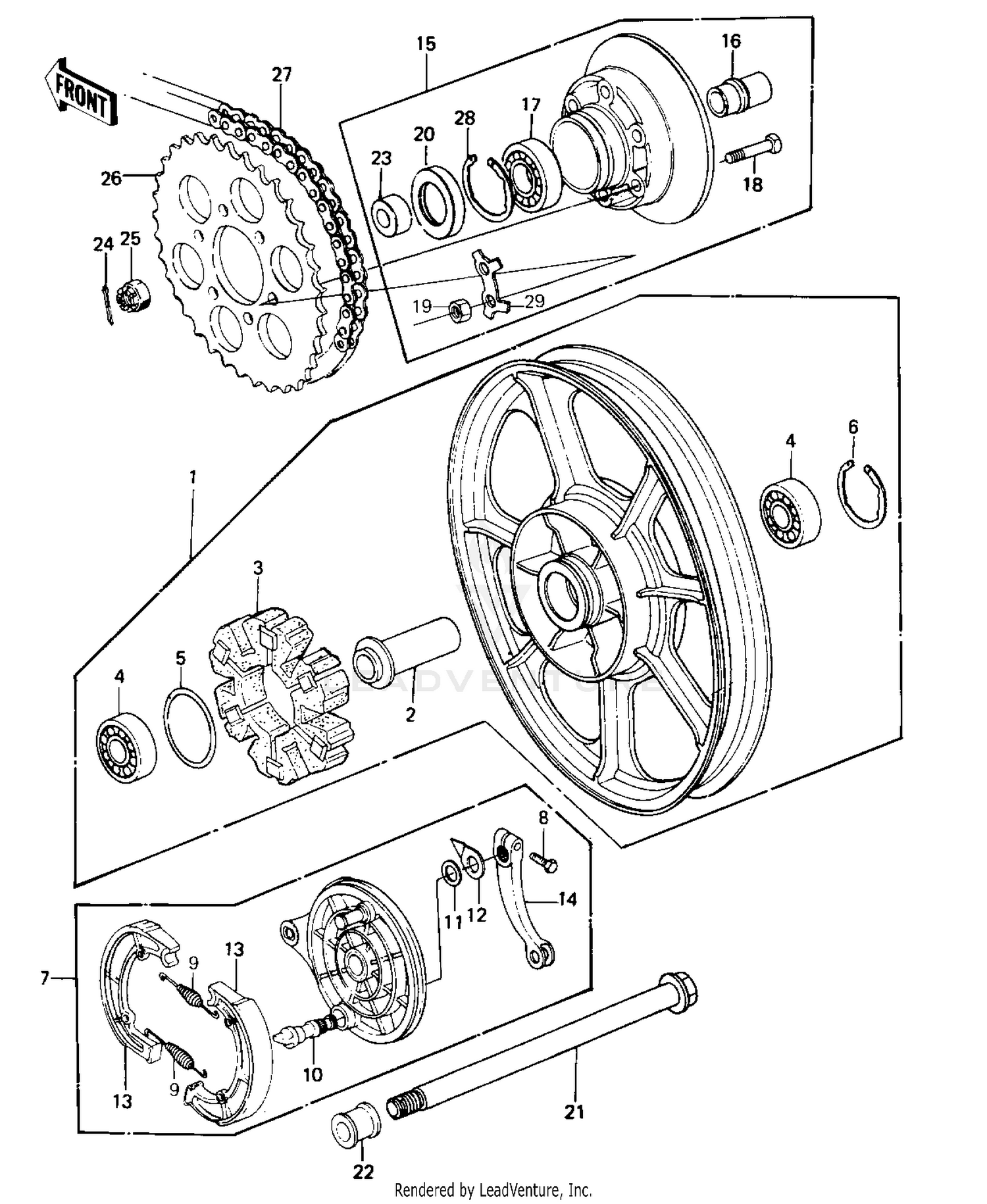

| Ref | Part Number | Description |
|---|
| 1 |
41073-1081 |
WHEEL ASSY,REAR Price: $369.99 |
| 2 |
92027-1267 |
COLLAR,RR WHEEL BRG Price: $29.69 |
| 3 |
42014-033 |
SHOCK DAMPER,REAR HUB Price: $111.86 |
| 4 |
601B6303ZZ |
BRG,BALL,#6303ZZC3 Price: $40.38 |
| 5 |
671B2565 |
O RING,65MM Price: $8.86 |
| 6 |
92033-1042 |
RING-SNAP,47MM Price: $4.22 |
| 8 |
114G0828 |
BOLT HEX HEAD 8X28 Price: $5.21 |
| 9 |
41049-012 |
SPRING,BRAKE SHOE Price: $9.49 |
| 10 |
41050-017 |
CAM SHAFT,BRAKE Price: $35.39 |
| 11 |
41051-003 |
DUST SHIELD-BRAKE CAM Price: $4.26 |
| 12 |
41085-004 |
INDICATOR,BRAKE SHOE Price: $14.51 |
| 13 |
41048-1070 |
SHOE-BRAKE This part replaces 42019-012. Price: $51.67 |
| 14 |
41053-1072 |
LEVER-BRAKE CAM This part replaces 42029-039. Price: $65.77 |
| 15 |
42033-1021 |
COUPLING ASSY,RR HUB Price: $243.48 |
| 16 |
42036-1036 |
SLEEVE,RR HUB L=33M/M Price: $36.73 |
| 17 |
92045-0110 |
BEARING-BALL,6206-9C3 This part replaces 601B6206. Price: $25.69 |
| 18 |
92001-161 |
BOLT Price: $5.38 |
| 19 |
42045-005 |
NUT 10MM Price: $7.98 |
| 20 |
92050-027 |
SEAL-OIL,AJN40627 Price: $20.96 |
| 21 |
41068-1086 |
AXLE,RR Price: $73.40 |
| 22 |
92027-1226 |
COLLAR,AXLE,L=28M/M Price: $46.71 |
| 23 |
92027-1262 |
COLLAR,RR AXLE L.H Price: $32.19 |
| 24 |
550AA4035 |
PIN-COTTER,4.0X35 This part replaces 550D4035. Price: $2.17 |
| 25 |
92015-1951 |
NUT,CASTLE,16MM This part replaces 92015-055. Price: $11.50 |
| 26 |
42041-1054 |
SPROCKET,REAR,38T Price: $117.22 |
| 27 |
92057-1050 |
CHAIN,530X100 SH-O Price: $433.56 |
| 28 |
92033-1044 |
RING-SNAP,62MM Price: $11.29 |
